The standard PCIe x16 position restricted the physical mounting location of the expansion board and created potential interference with the enclosure structure.Engineering Case ยท IPC-PCIE-01

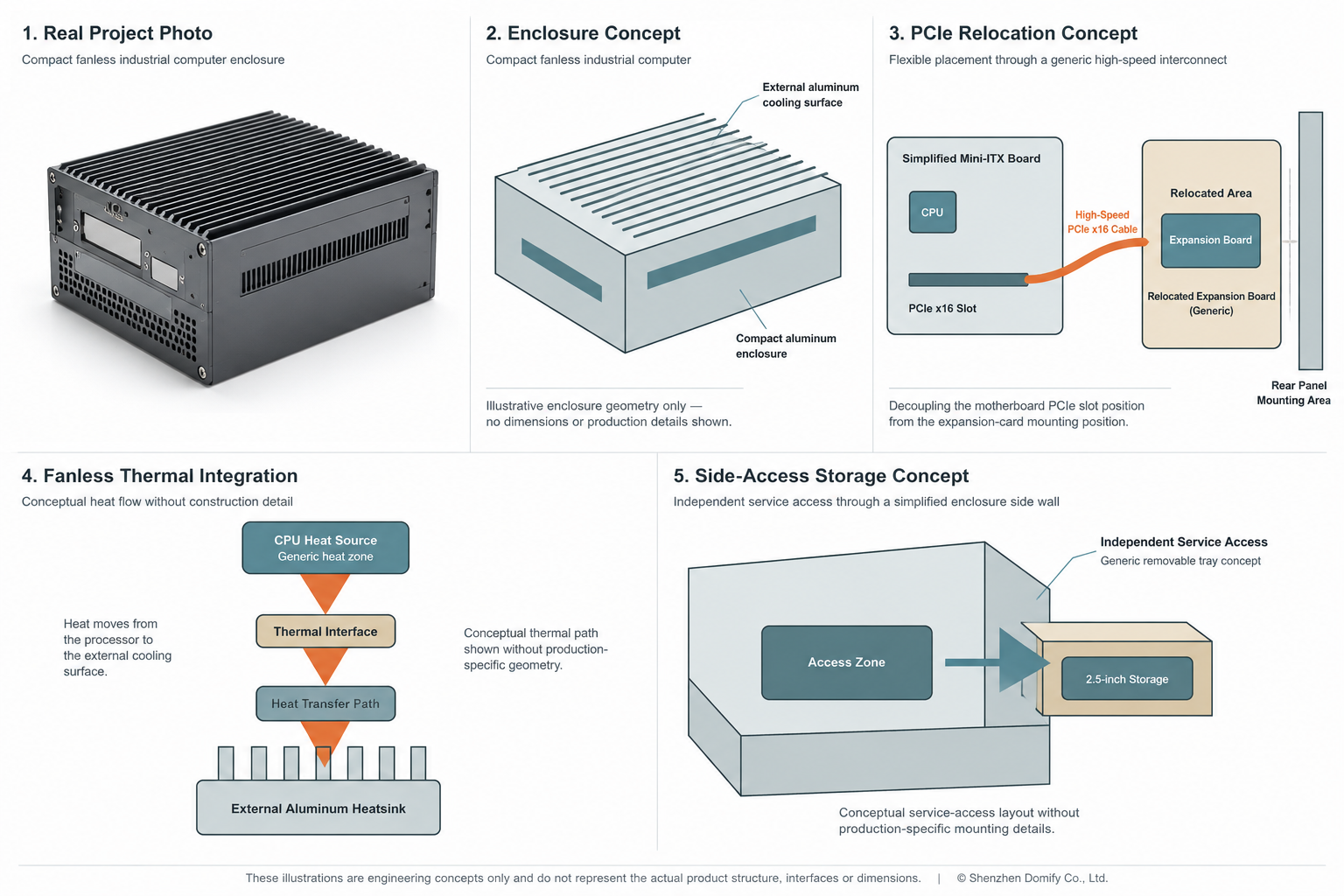

Mechanical Integration of PCIe Expansion and Fanless Cooling in a Compact Mini-ITX System
Balancing PCIe placement, thermal transfer, removable storage and enclosure constraints in one compact industrial computer.
Project Challenge
This project required the development of a compact fanless enclosure around a standard Mini-ITX motherboard.
At first glance, the platform appeared relatively straightforward. However, the CPU, rear I/O area and PCIe x16 slot were concentrated in the same region, creating several interacting mechanical constraints.
The system also required PCIe expansion, fanless thermal management, side-access 2.5-inch storage and practical assembly access.
The challenge was therefore not simply fitting components into an enclosure, but coordinating multiple mechanical constraints within one compact system.
This case is based on a completed engineering project. To protect customer-specific design information, all visuals have been simplified and recreated as non-dimensional engineering concepts.
Key Engineering Constraints
Fanless Thermal Integration
CPU heat had to be transferred to the external aluminum cooling structure without relying on an internal fan.Internal Clearance
The combined motherboard I/O, PCIe structure and supporting components created a larger three-dimensional component envelope than the motherboard outline alone.Serviceability
The 2.5-inch storage device needed to remain accessible from the side without requiring complete system disassembly.Enclosure Integration

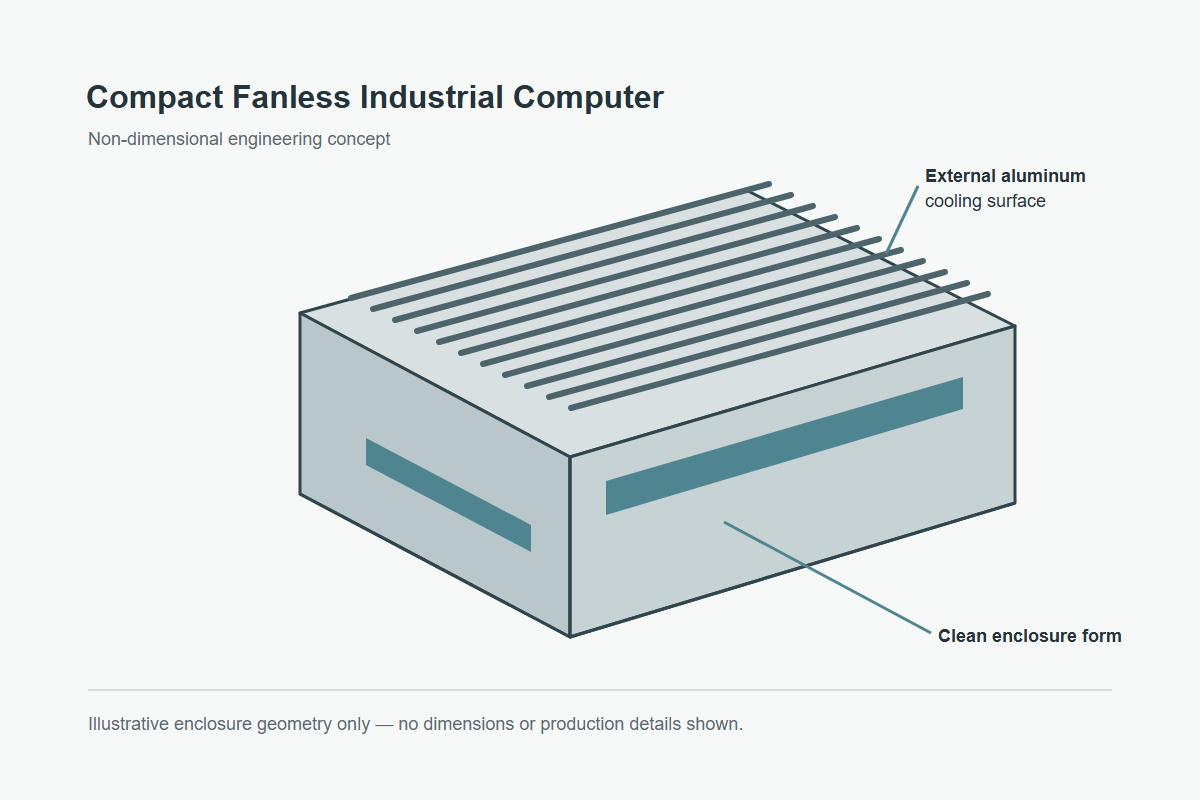

The enclosure also had to balance mechanical rigidity, assembly access and a consistent external appearance.PCIe Expansion Relocation

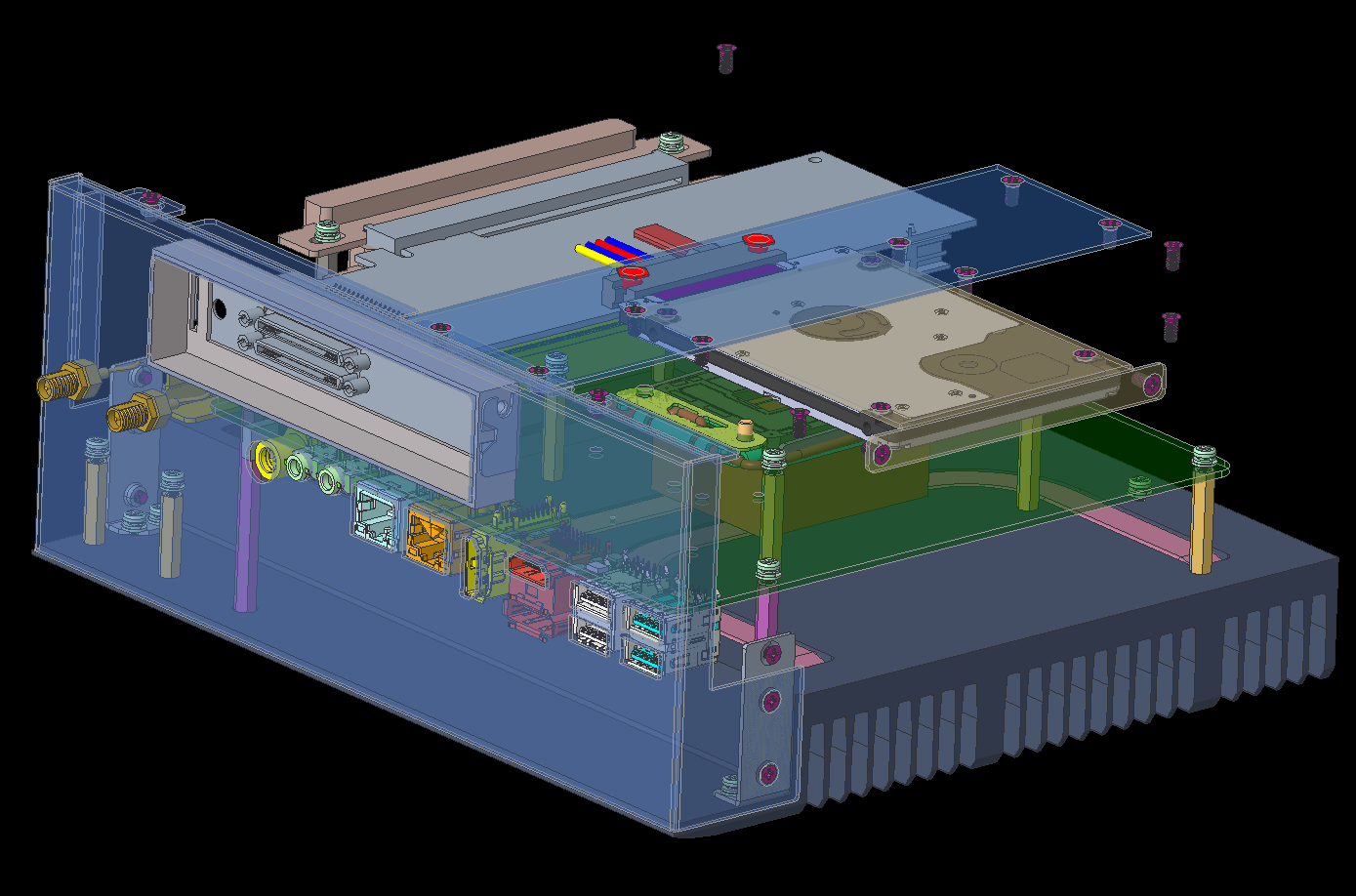

Using the motherboard PCIe x16 slot directly would have restricted the expansion-board position and created interference between the expansion-card mounting area and the enclosure structure.
A high-speed PCIe x16 cable was therefore used to decouple the motherboard PCIe slot position from the physical mounting position of the expansion board.
This provided better control of board placement, structural clearance, installation access and rear-panel integration.
Decoupling the motherboard PCIe slot position from the expansion-card mounting position.

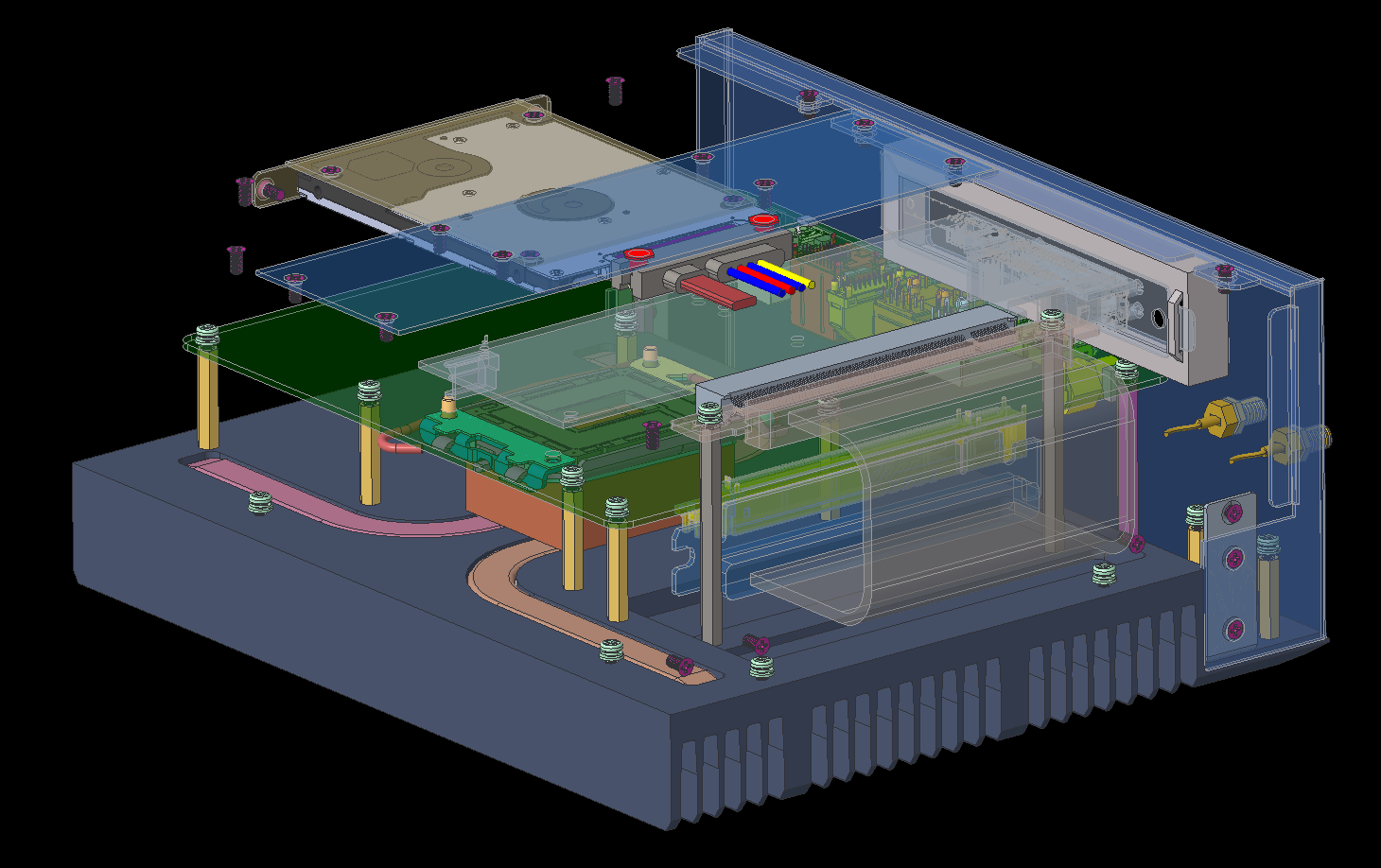

Fanless Thermal Integration
Because of the motherboard layout and available internal space, direct CPU-to-enclosure thermal transfer was not practical.
A heat-pipe-based thermal path was developed to transfer CPU heat to the external aluminum heatsink structure.
This allowed the enclosure itself to become part of the system thermal solution while maintaining a compact internal layout. For related requirements, see our fanless industrial PC capabilities.

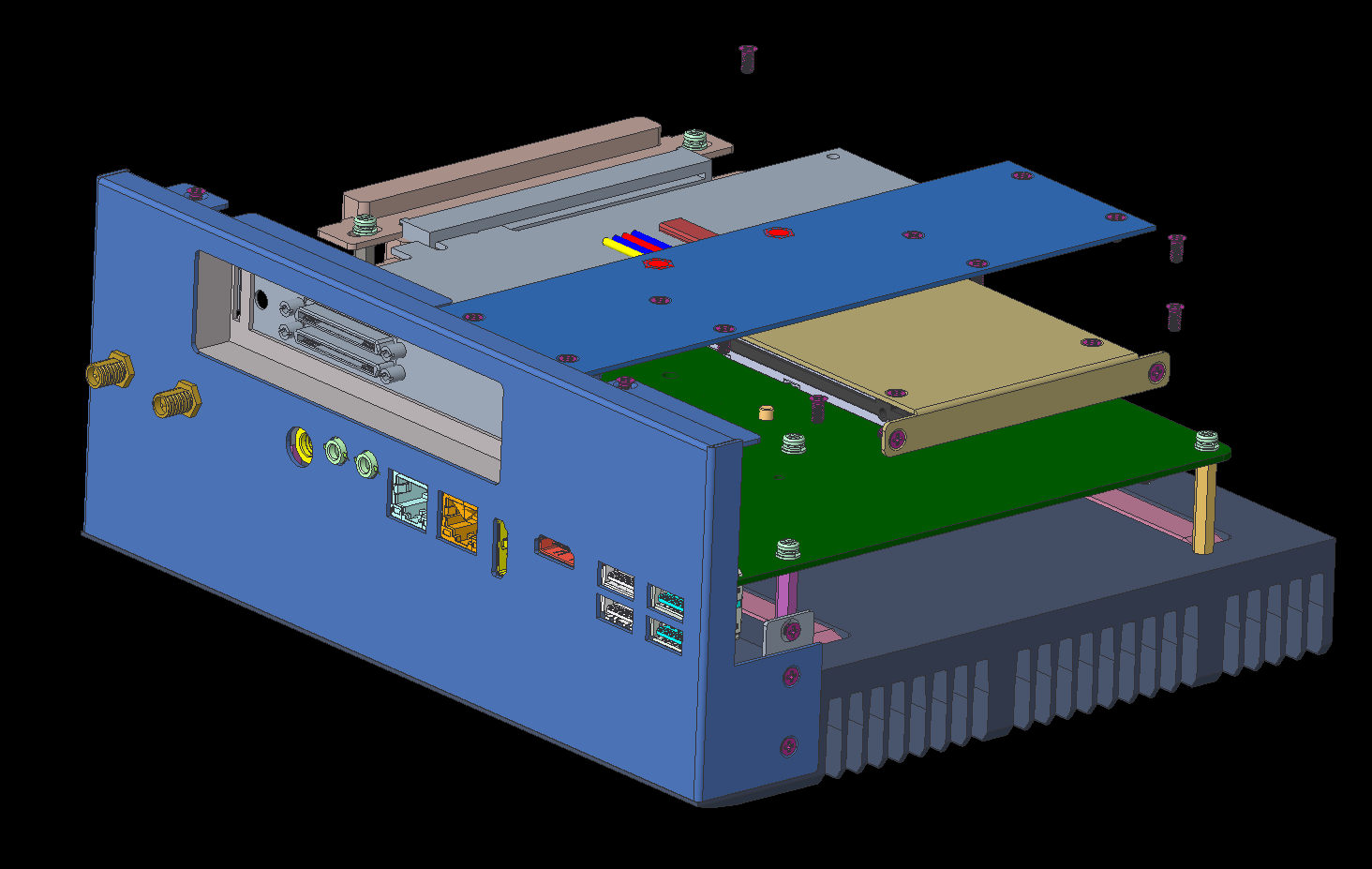

Internal Space Management
The enclosure was designed around the real three-dimensional component envelope rather than only the Mini-ITX motherboard outline.
This approach was necessary to maintain sufficient clearance between the motherboard I/O region, PCIe expansion system, thermal structure and enclosure components.
Side-Access 2.5-Inch Storage
The 2.5-inch drive mounting structure was integrated independently from the main motherboard and PCIe assembly.
This allowed the storage device to be accessed and replaced from the side without disassembling the complete system.
Engineering Result
The final design integrated PCIe expansion, fanless thermal management, internal clearance, removable storage and enclosure structure as one coordinated mechanical system.
The project demonstrates how compact industrial computer design often requires several constraints to be solved together rather than independently.
