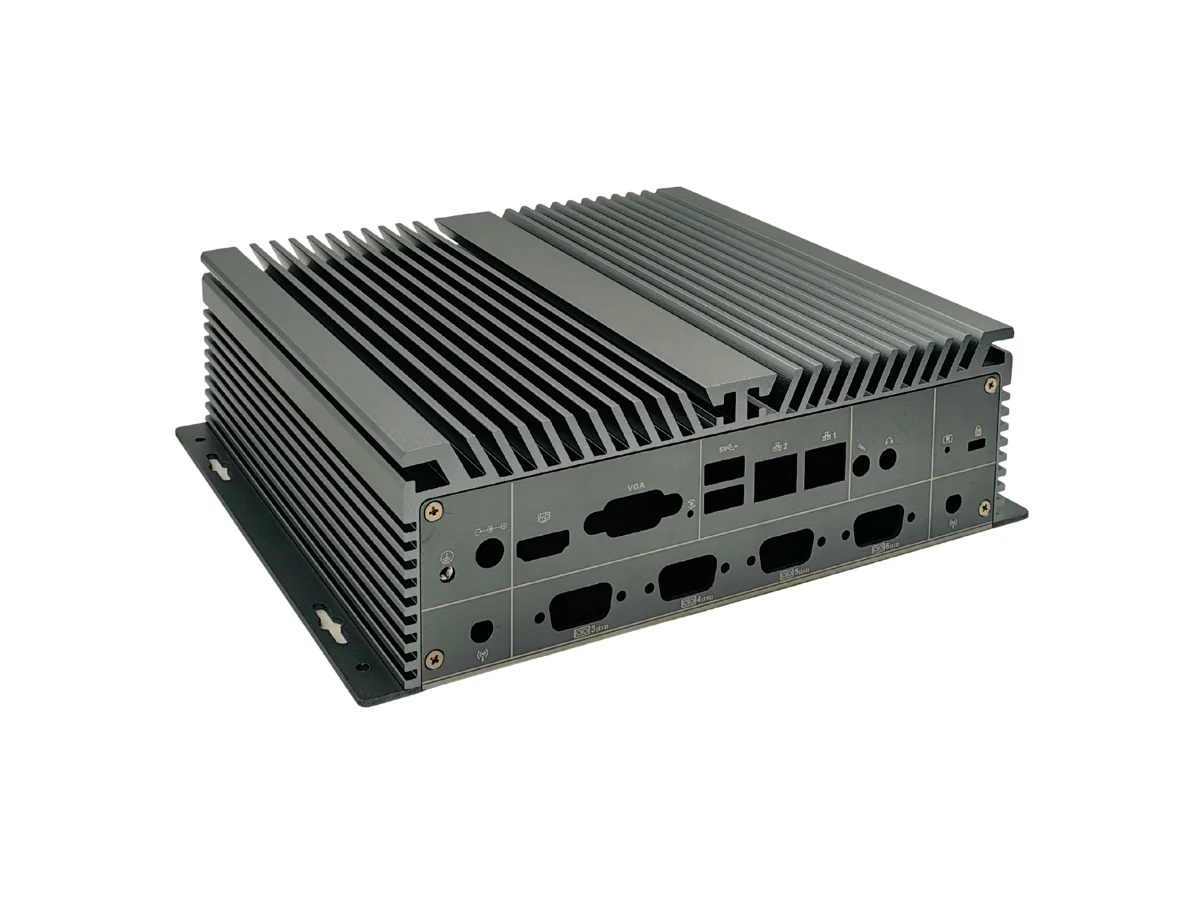

DM20 Custom Aluminum Fanless Industrial PC Enclosure
Model DM20 is a custom extruded aluminum enclosure designed for fanless industrial PC integration, CNC-machined I/O configurations and efficient passive heat dissipation.
Key Features
- Extruded enclosure body with external passive cooling fins
- Customizable CNC-machined front and rear I/O panels
- Removable bottom mounting plate
- Configurable internal mounting and thermal-transfer structure
- Mounting flanges for equipment integration
Images show a current reference configuration. Panel openings, mounting details and internal arrangements can be adapted to the selected industrial PC hardware.
Product Gallery
Open any image to view the original file and examine the visible panel, enclosure and mounting details.

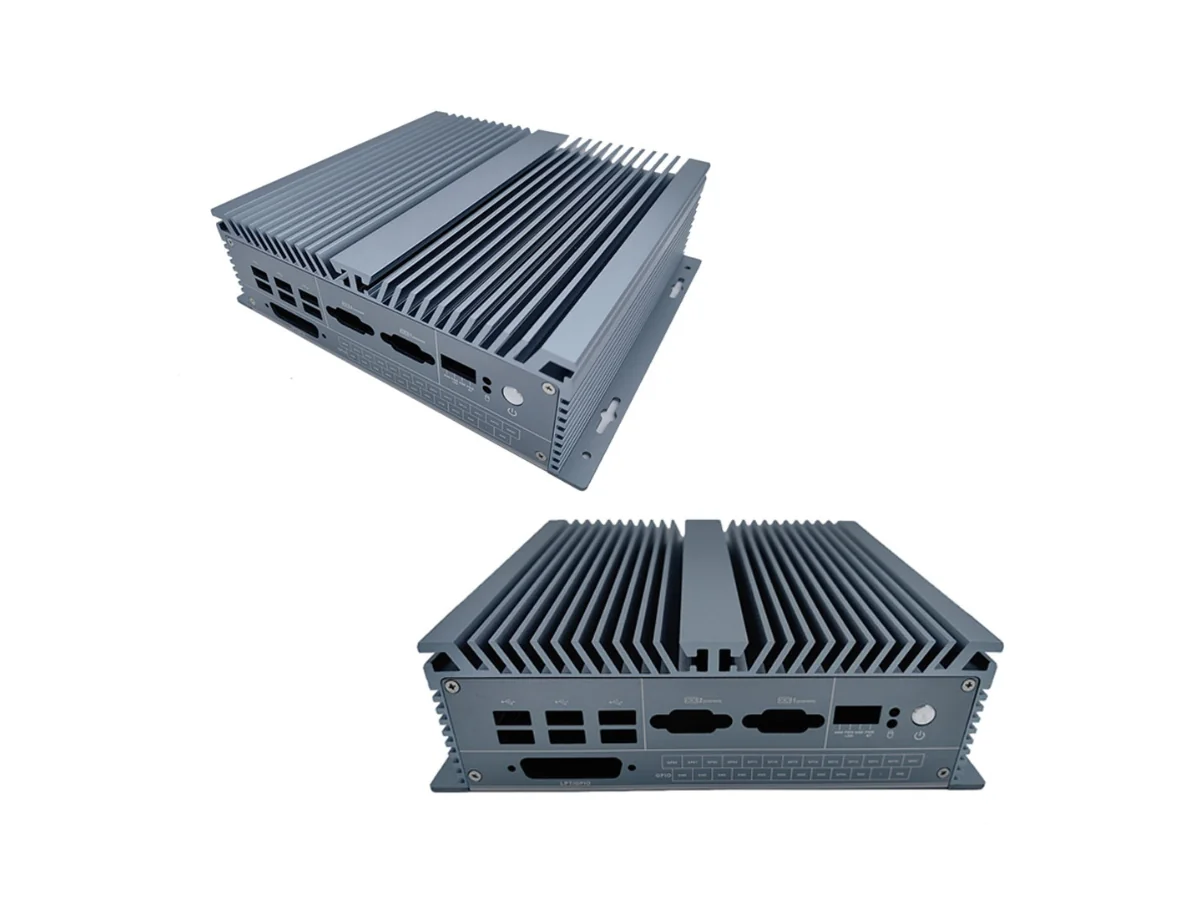

Front and Rear Panel Configurations

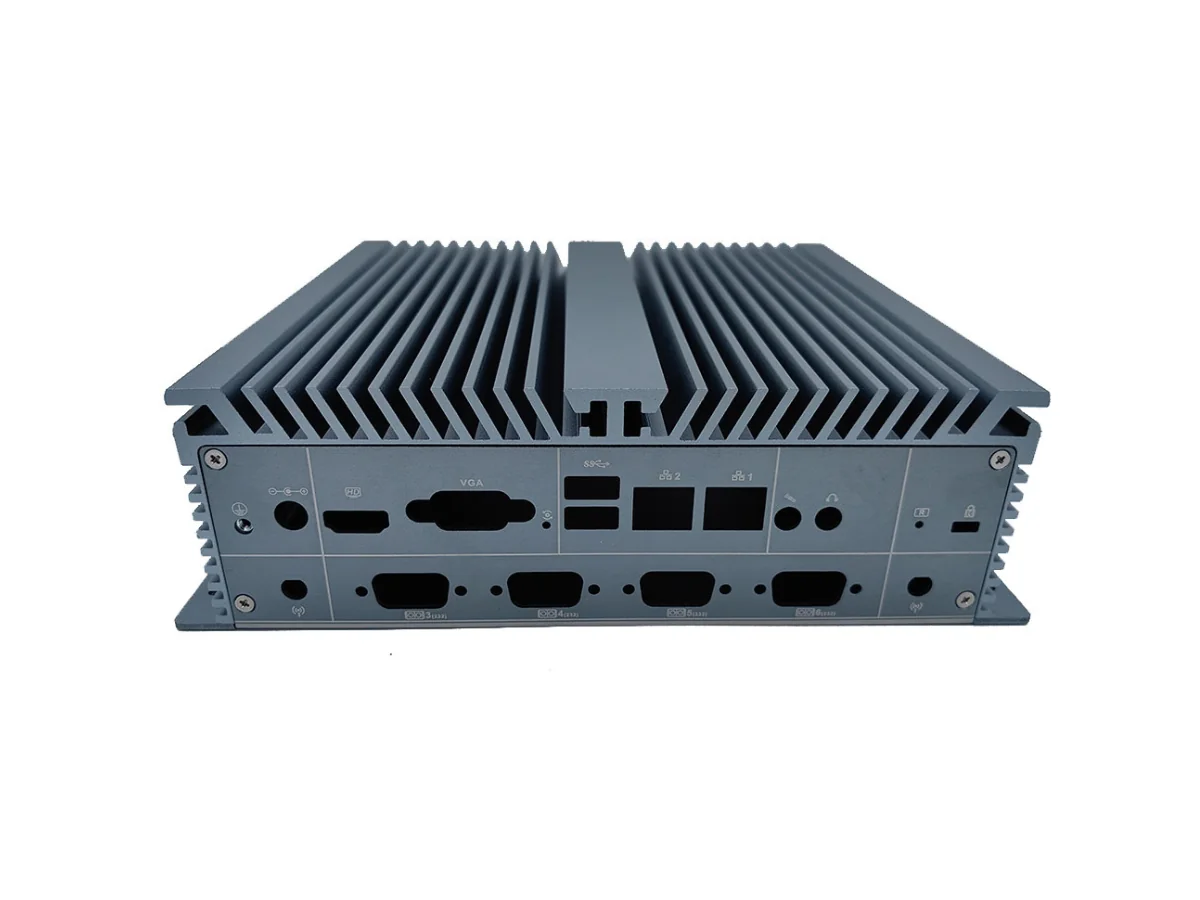

Custom CNC Panel Cutouts

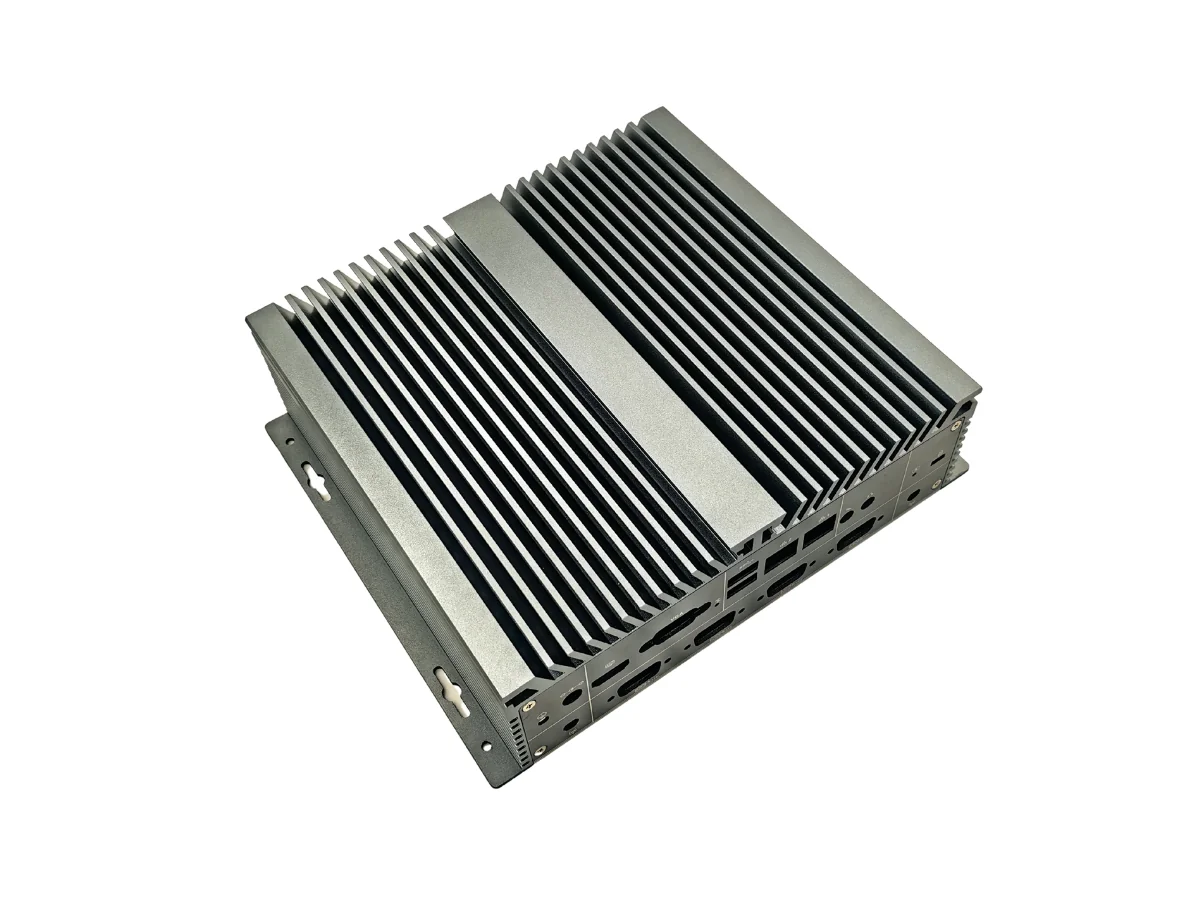

Heatsink Top Angle

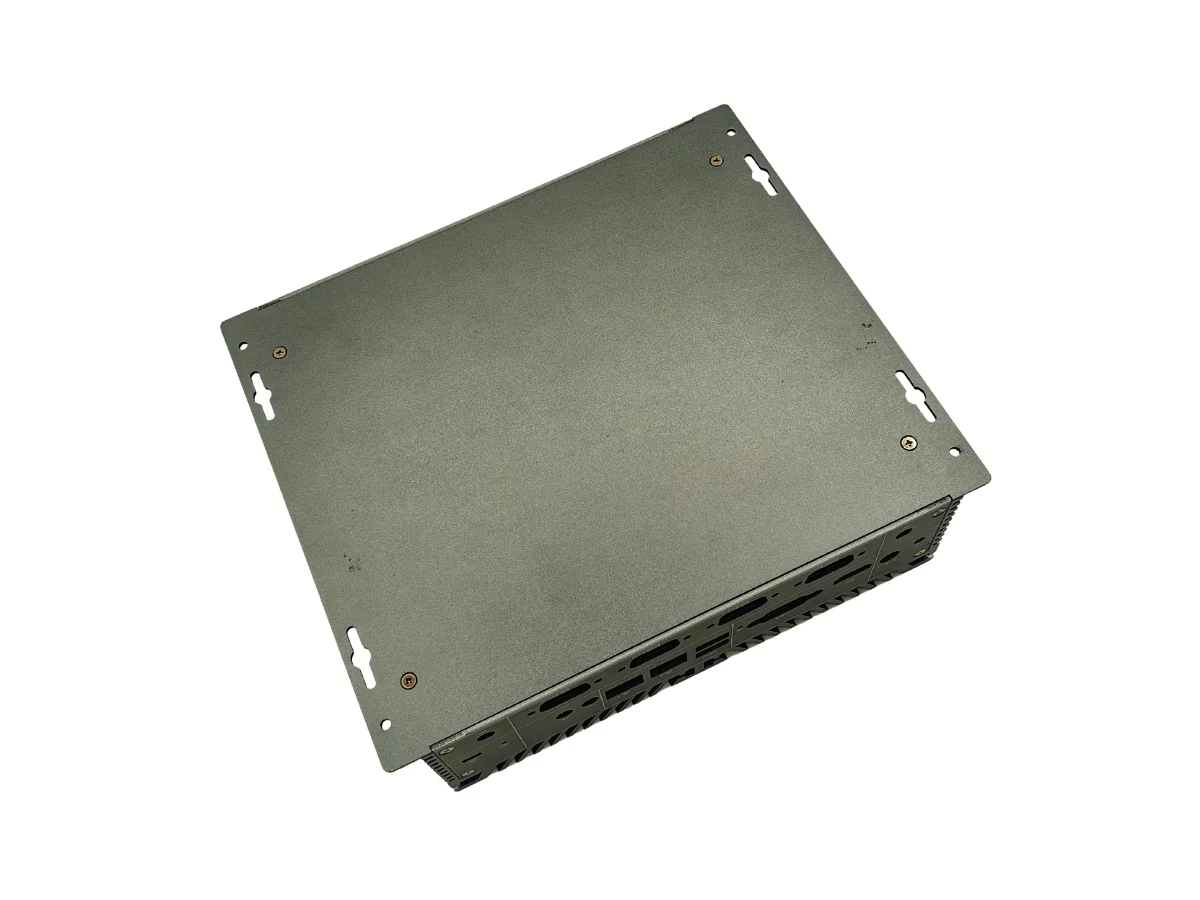

Bottom Mounting Plate

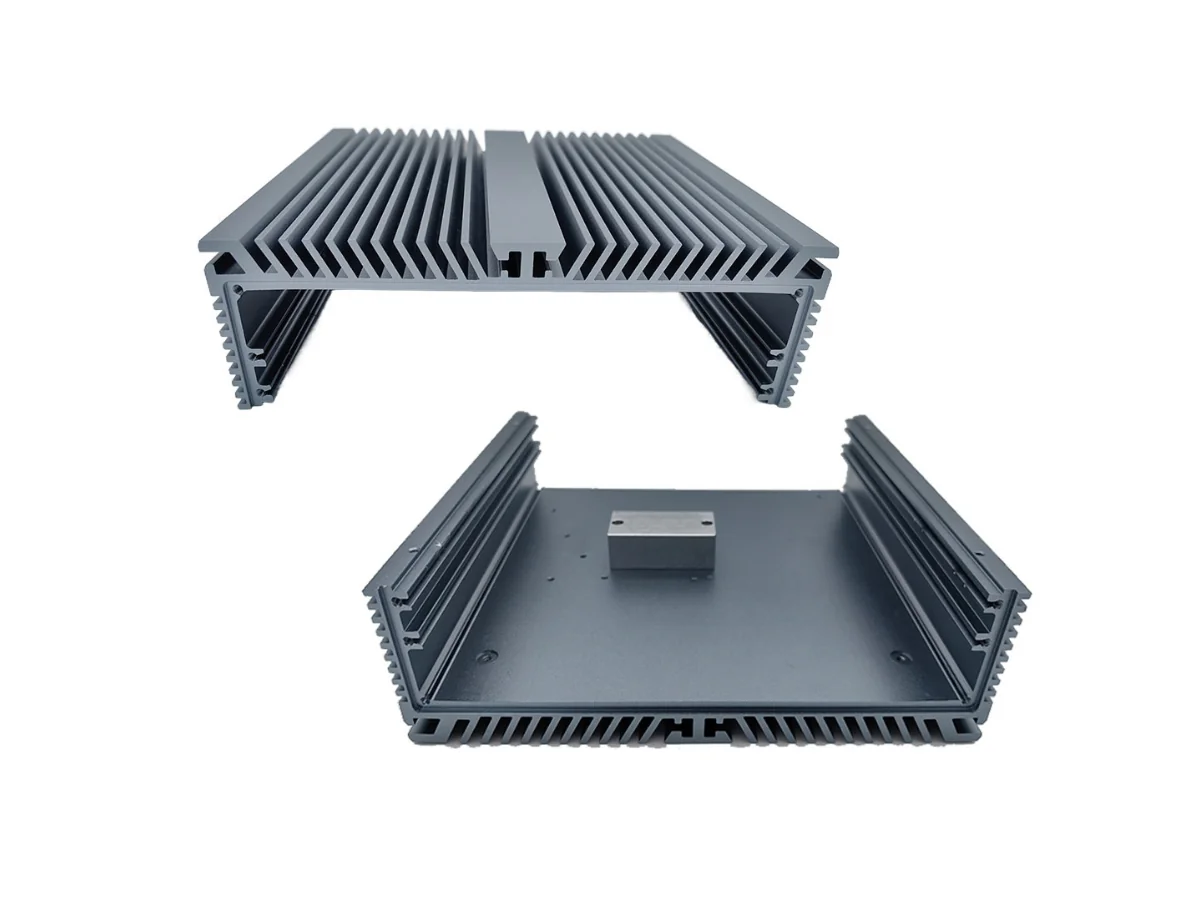

Internal and Thermal Structure

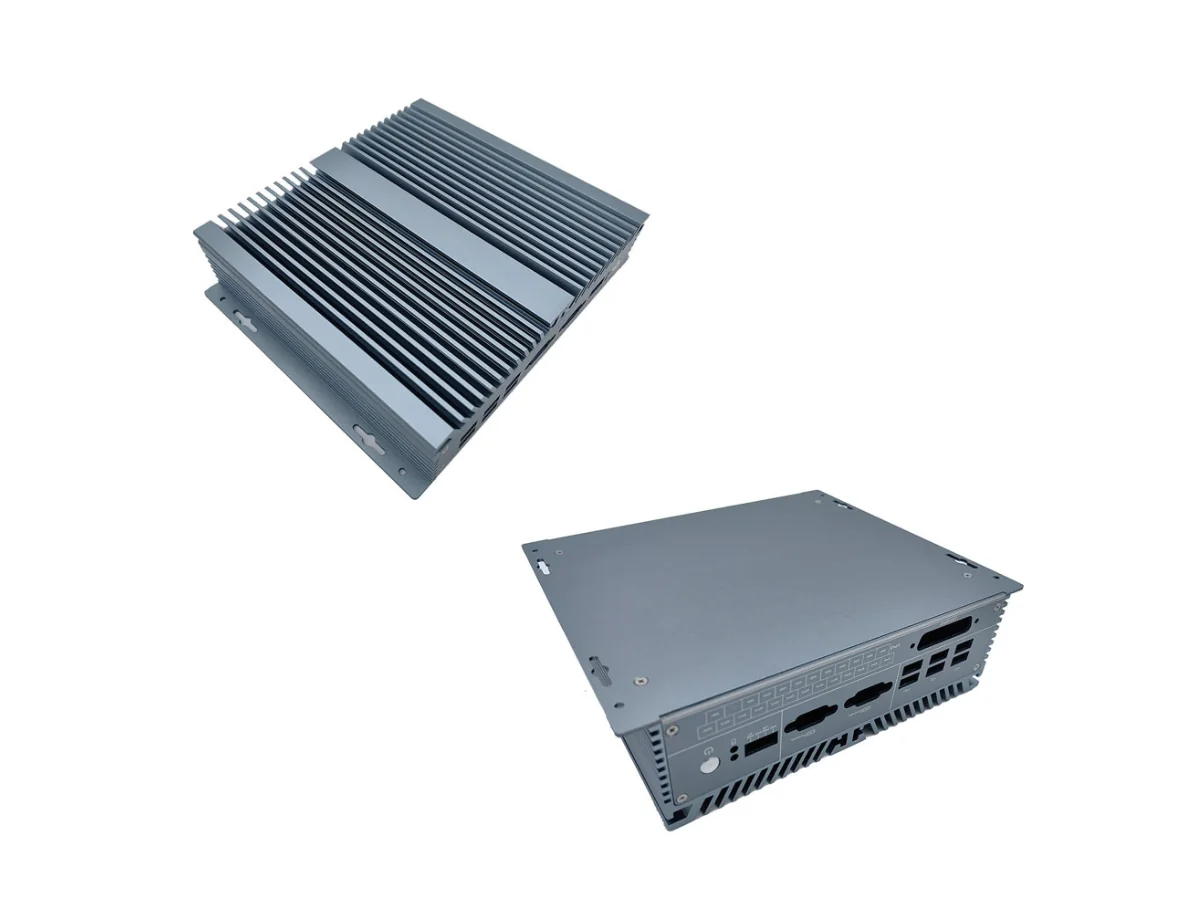

Top and Bottom Views

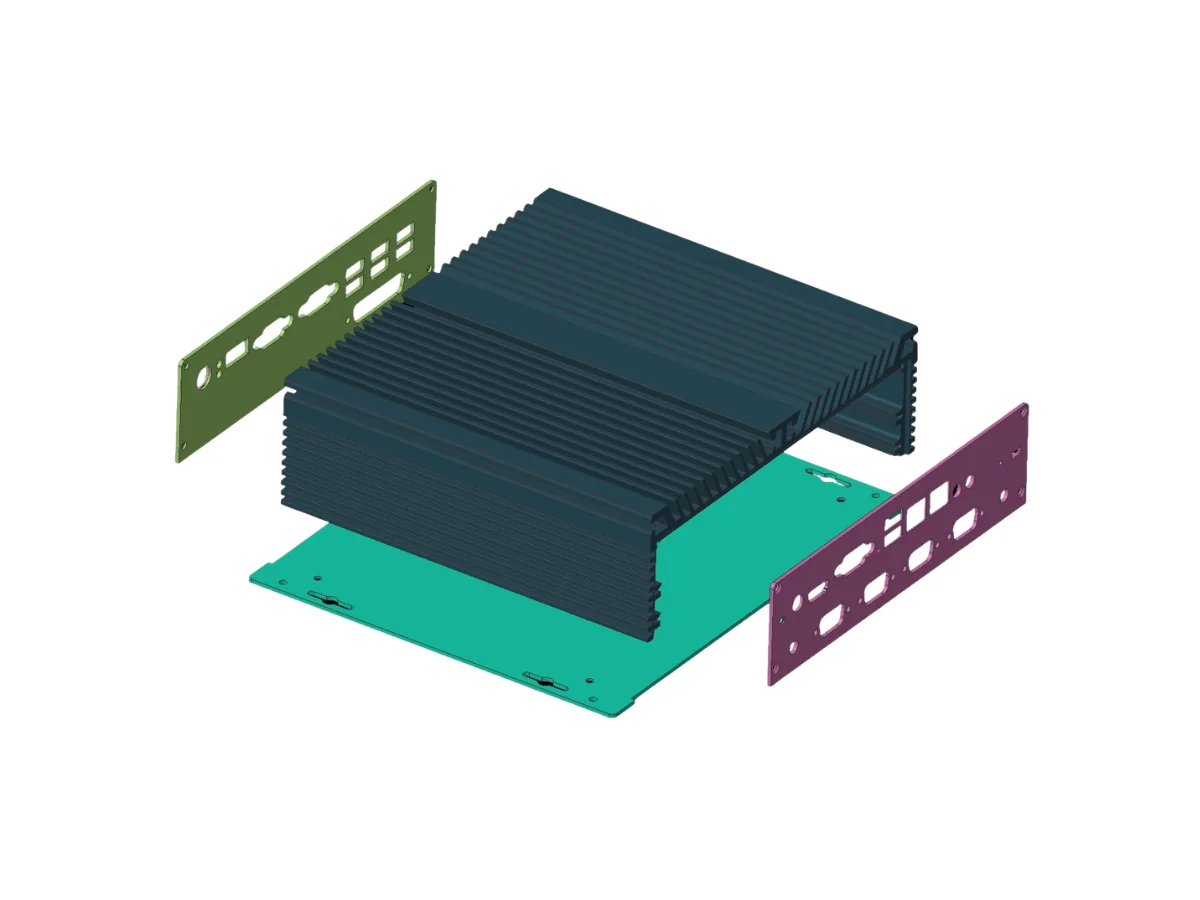

Exploded Structure
Dimensions and Structure
Dimensions shown are based on the current reference configuration and may be customized for project requirements.

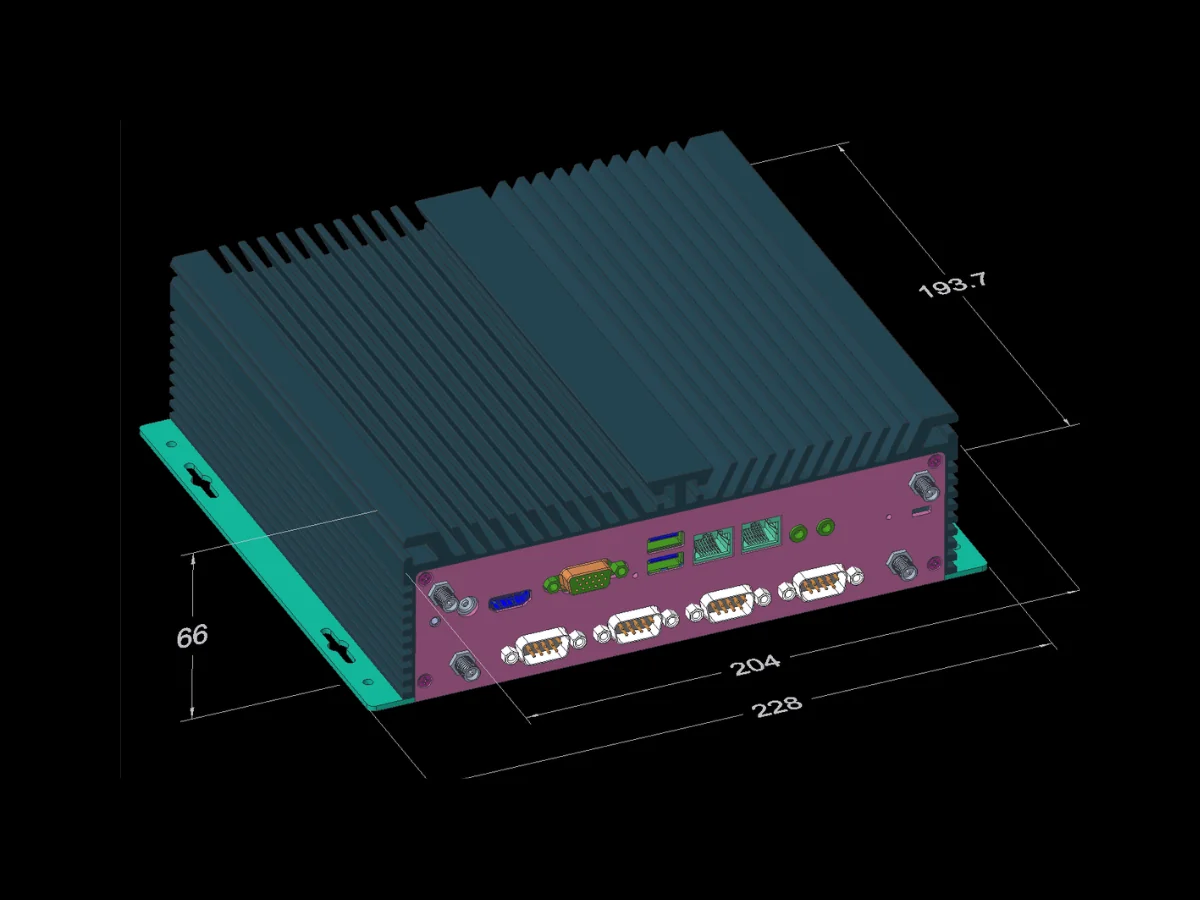

Overall Reference Dimensions
- Overall mounting width: 228 mm
- Enclosure depth shown: 193.7 mm
- Overall height shown: 66 mm

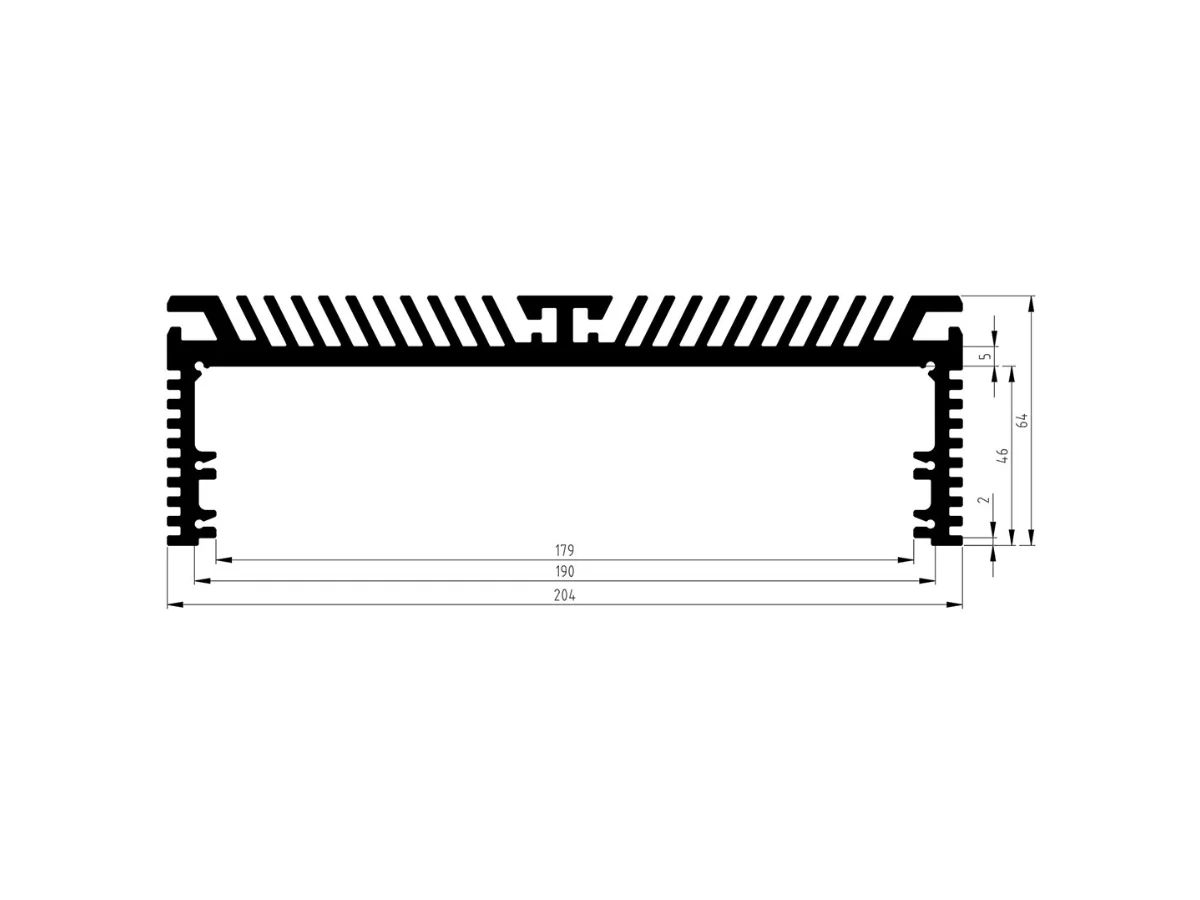

Extrusion Cross-Section
- Enclosure body width: 204 mm
- Intermediate width: 190 mm
- Internal width: 179 mm
- Cross-section height: 64 mm
- Internal height shown: 46 mm
Customization Capabilities
- Custom CNC-machined front and rear panels
- Flexible I/O cutouts
- Aluminum extrusion heatsink structure
- Internal thermal block customization
- Bottom mounting plate customization
- Surface finish and color options
- OEM and ODM enclosure development
Applications
- Fanless industrial PC integration
- Embedded control computers
- Industrial automation equipment
- Edge computing hardware enclosures
- Project-specific OEM and ODM computer systems
Recommended Products

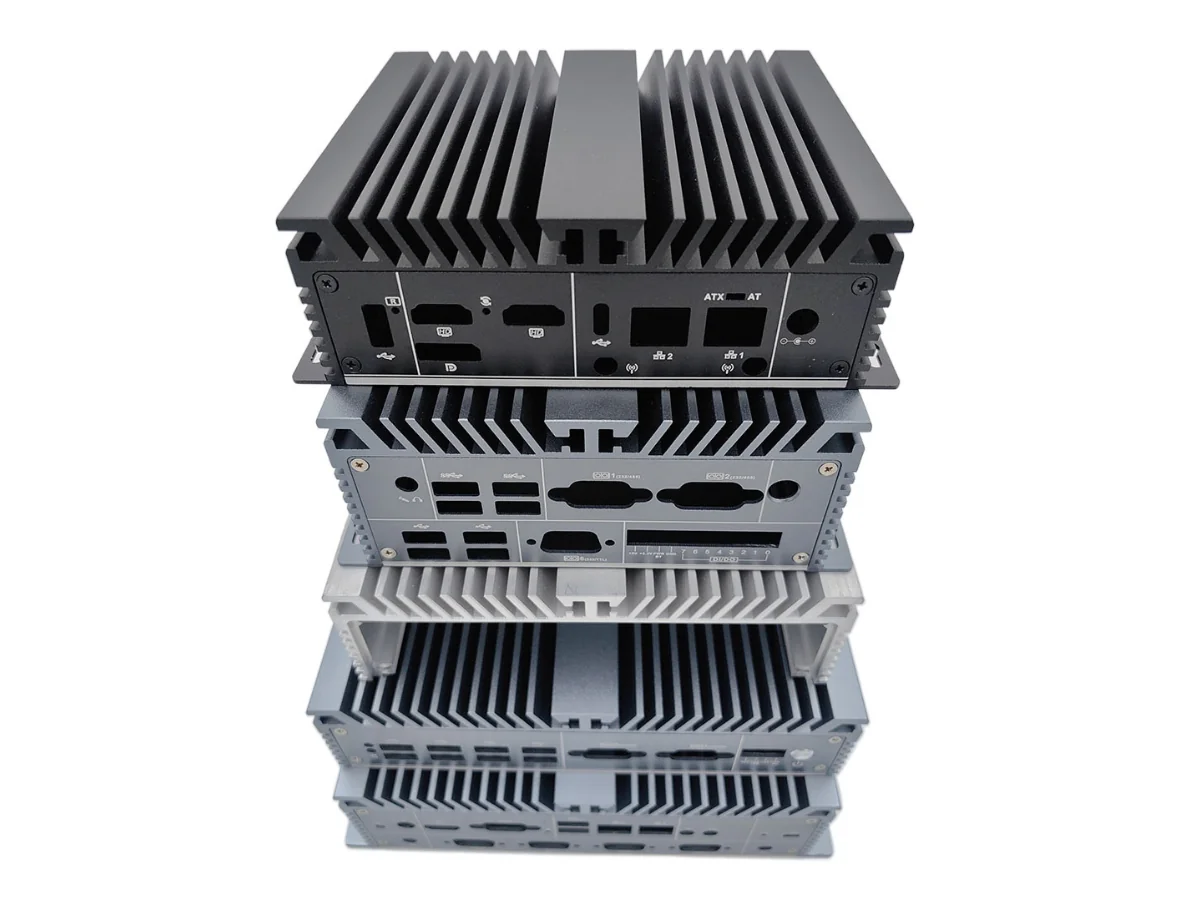

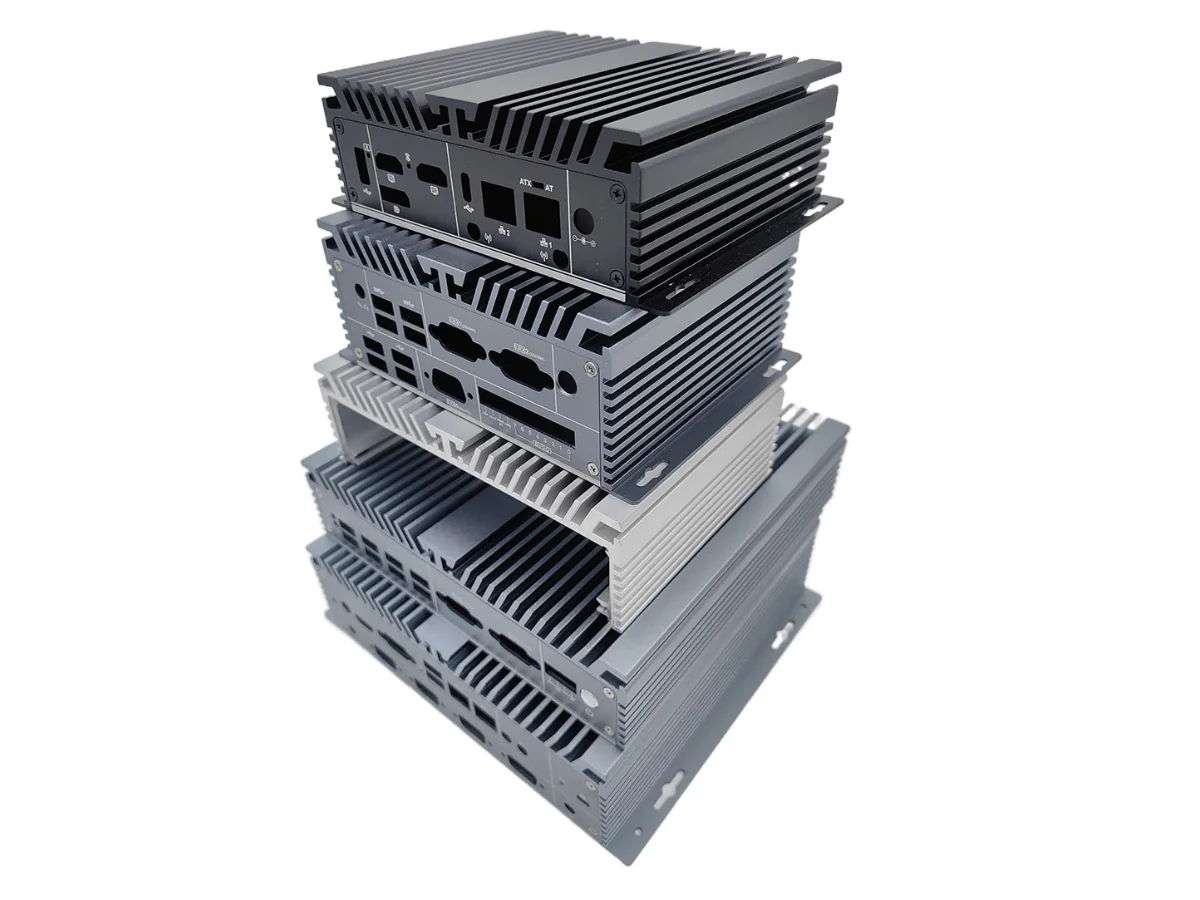

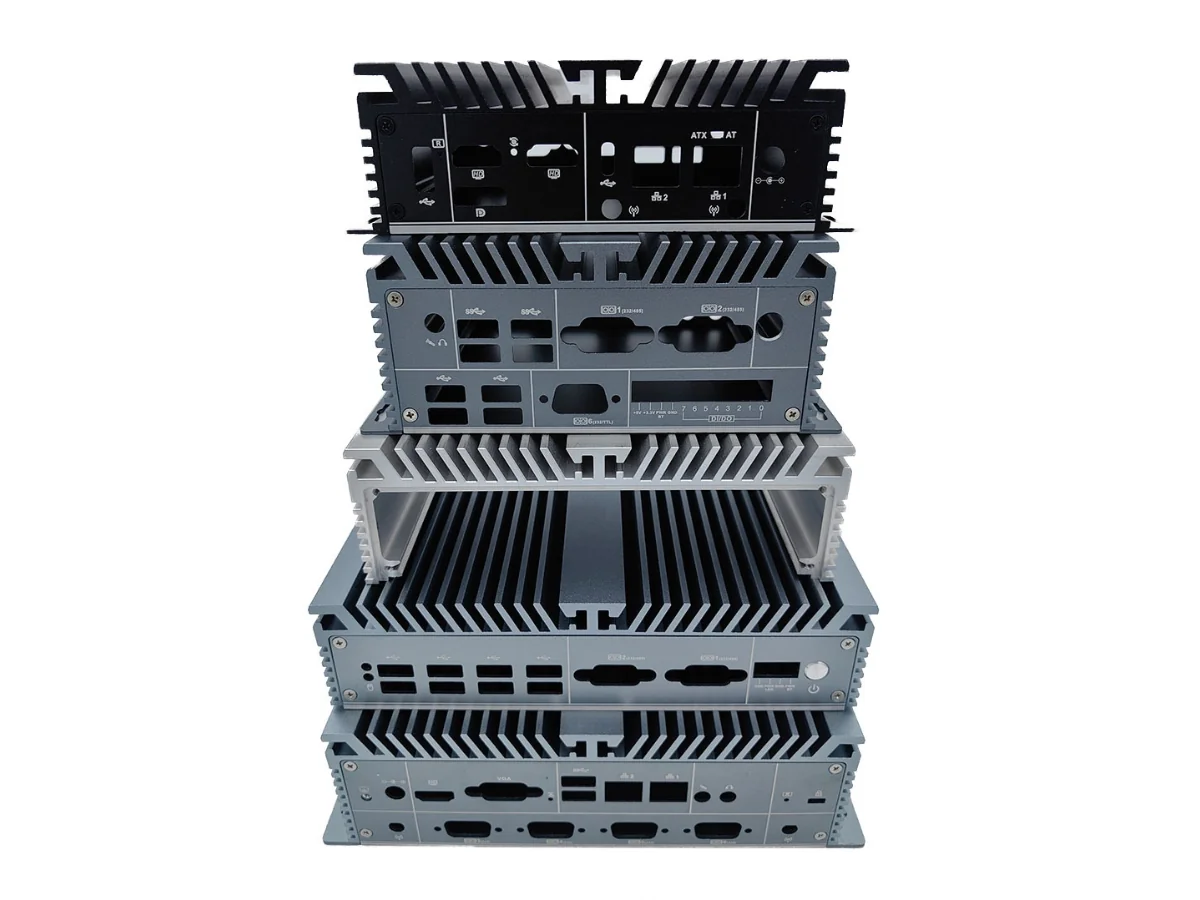

Explore related aluminum enclosure sizes and configurations designed for Nano-ITX, 3.5-inch SBC, 4-inch SBC and Mini-ITX hardware platforms.
Request a Quote for the DM20
Share your motherboard layout, required I/O openings, mounting method, enclosure dimensions and thermal integration needs for a project review.
