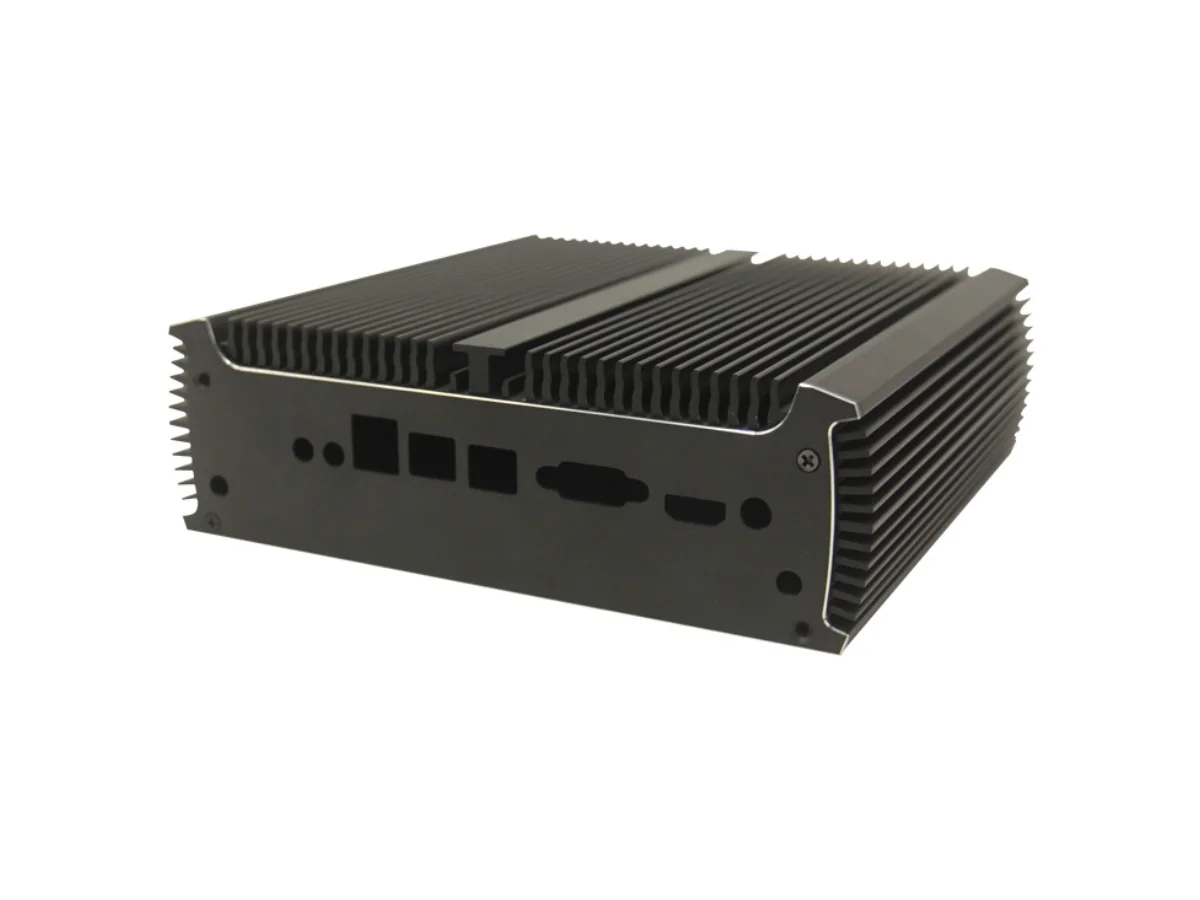

DM23 Custom Aluminum Heatsink Enclosure
Custom extruded aluminum enclosure with integrated heatsink fins, CNC-machined I/O panels and an internal thermal-transfer structure for fanless industrial computer applications.
Key Structural Features
- Black extruded aluminum enclosure body
- Integrated heatsink fins across the top and sides
- Customizable front and rear I/O panels with CNC-machined openings
- Internal mounting structure and thermal-transfer block
- Designed for custom fanless industrial computer enclosures
The visible enclosure, panel and internal structures can be reviewed for project-specific mechanical and thermal integration.
Product Overview
The DM23 combines a black finned aluminum extrusion with customizable CNC-machined I/O panels, an internal mounting structure and a thermal-transfer block. The enclosure is intended for project-specific fanless industrial computer enclosure development.
Product Gallery
Review the enclosure angles, extrusion dimensions, CNC panel details, finned shell and internal thermal-transfer structure shown in the DM23 design.

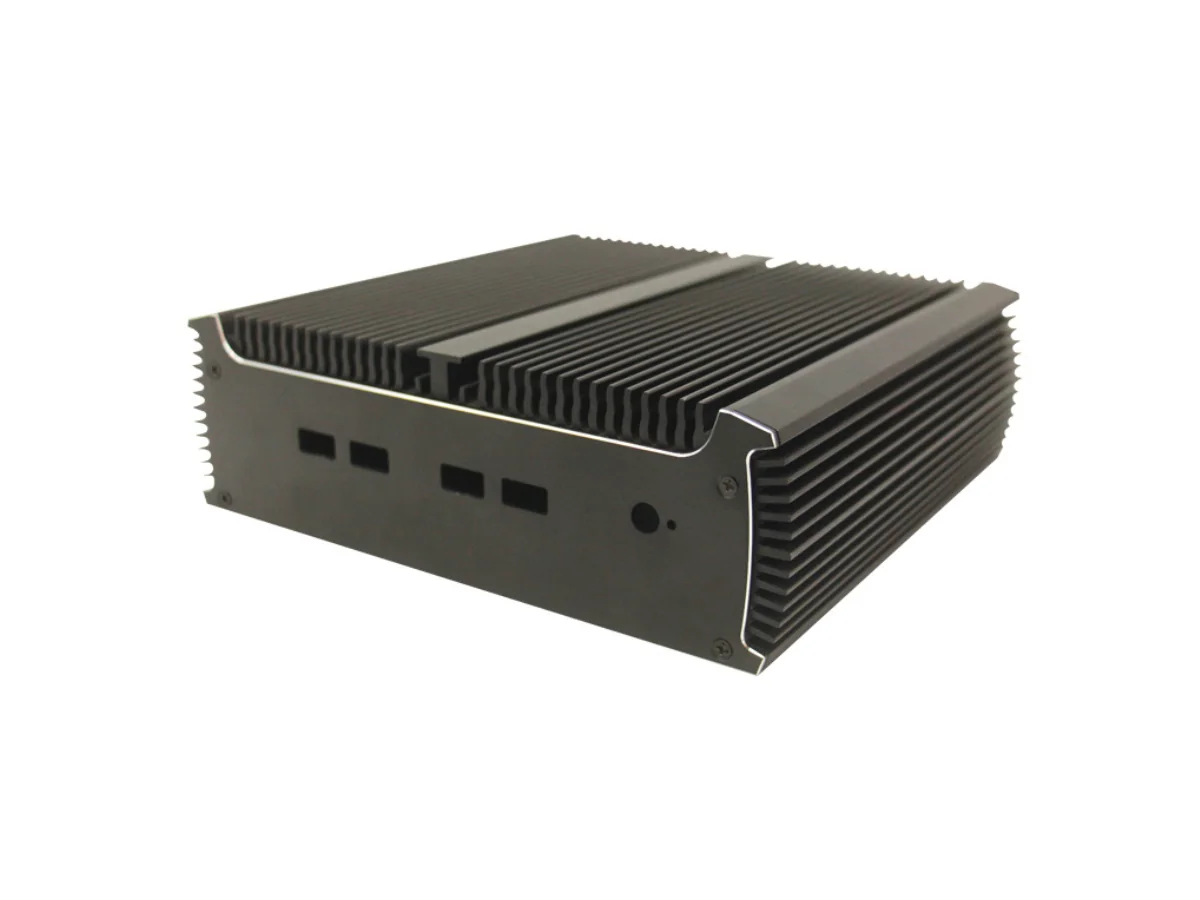

Alternate Enclosure Angle
Extrusion Cross-Section

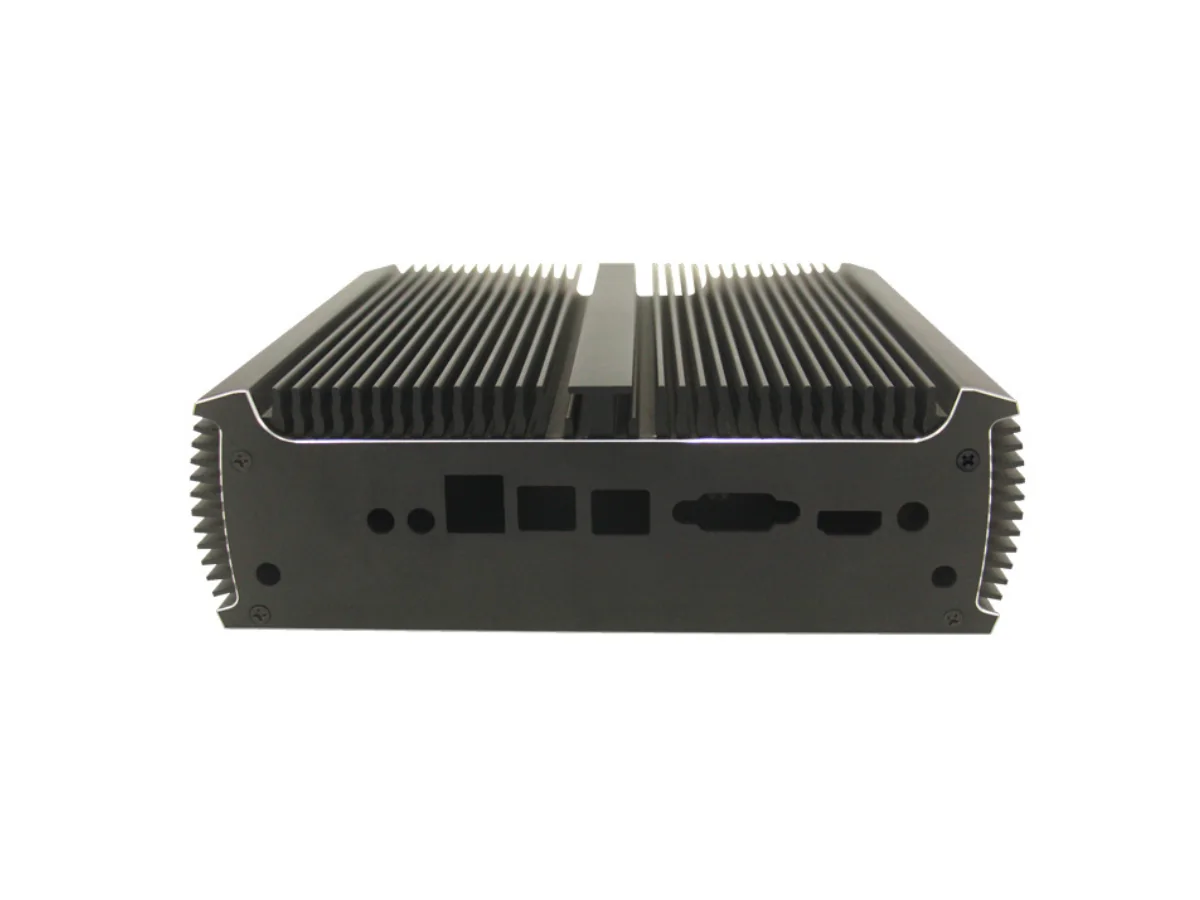

Custom Front Panel

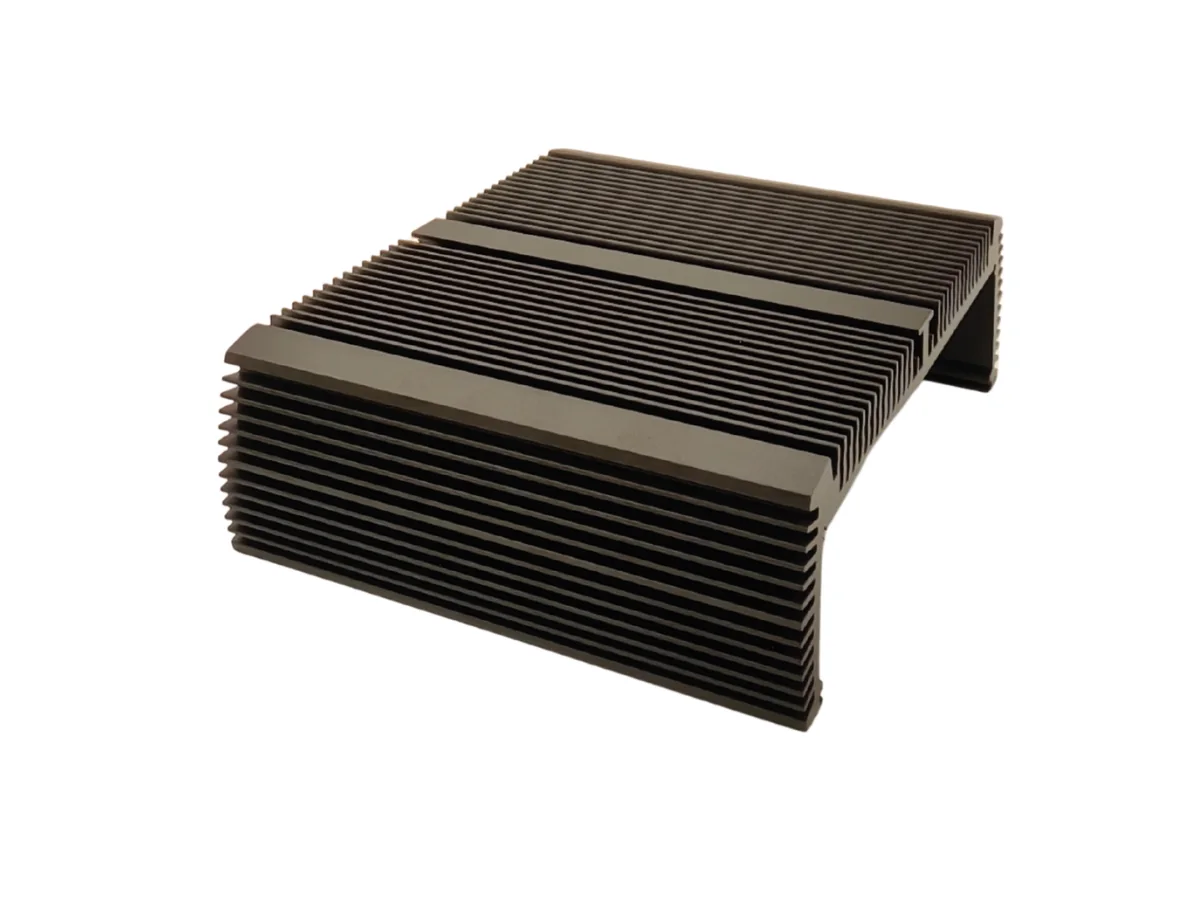

Finned Extrusion Shell

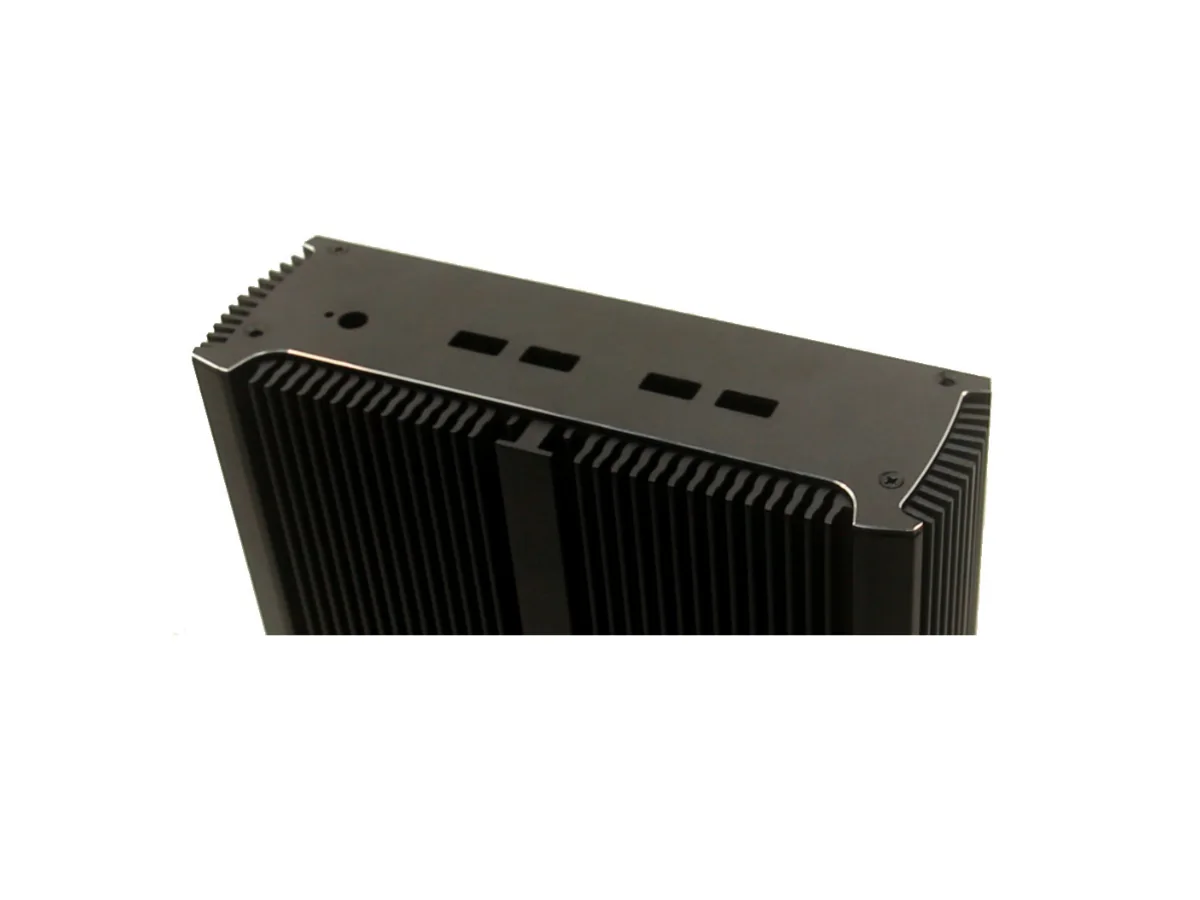

I/O Panel Machining Detail

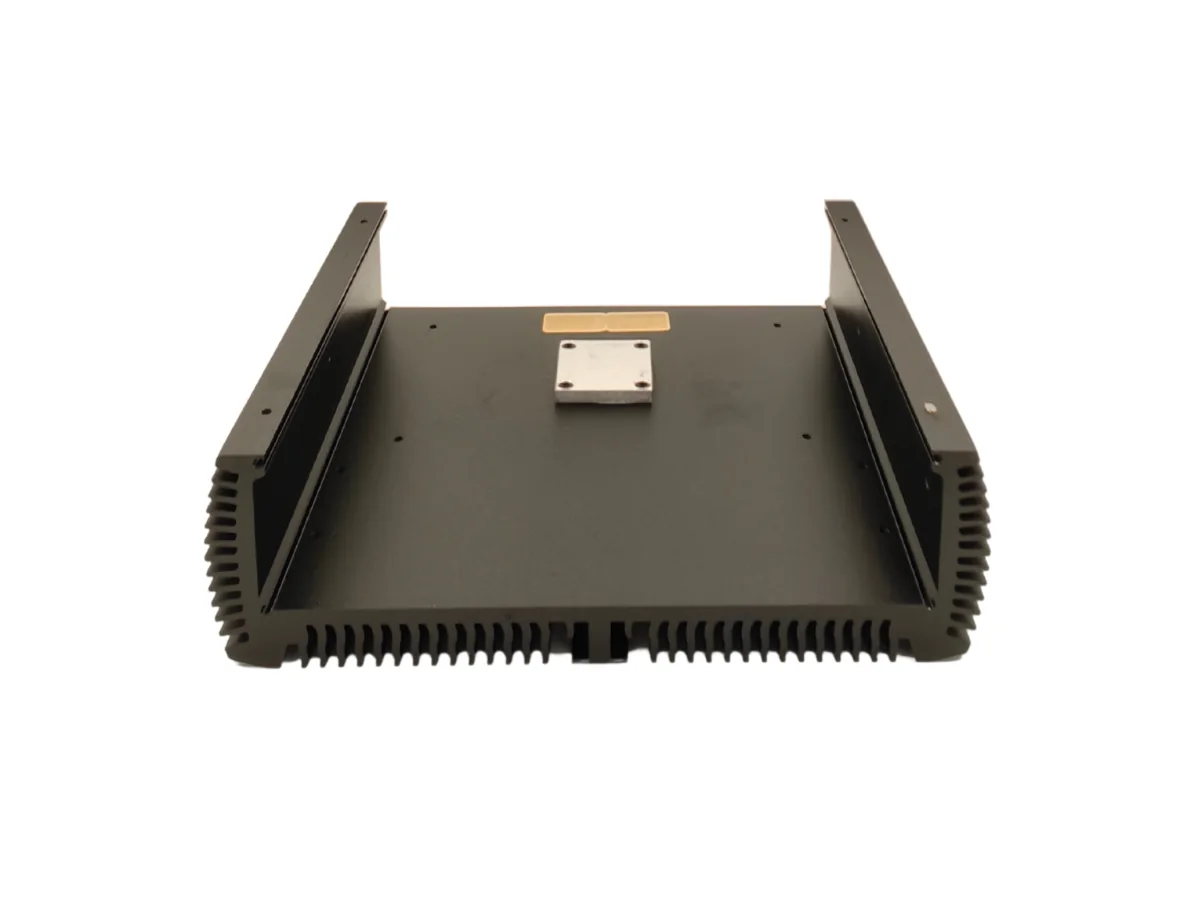

Internal Structure Front View
Internal Structure Top View

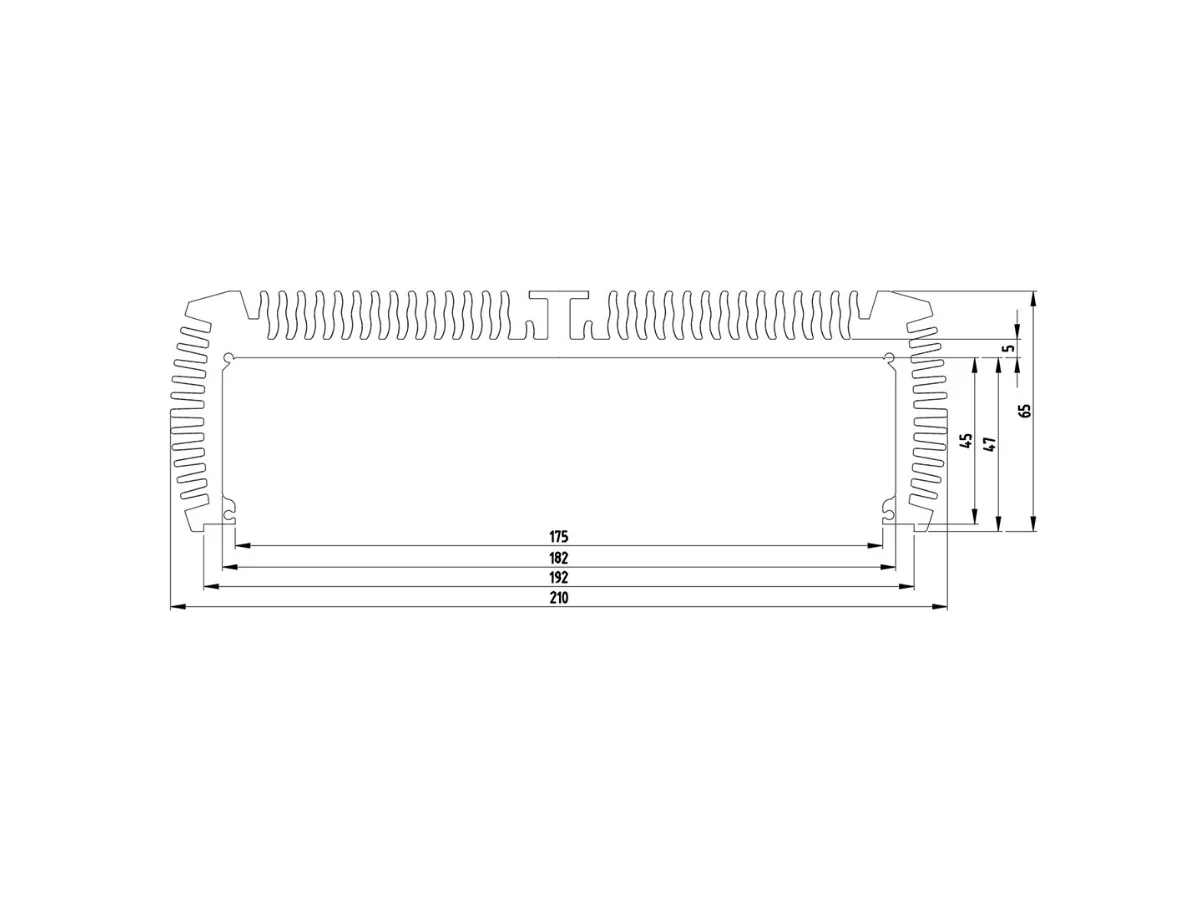

Cross-Section Dimensions
The extrusion cross-section image shows the following reference measurements.
Width
- Overall width: 210 mm
- Intermediate widths: 182 mm and 192 mm
- Inner width: 175 mm
Height
- Overall height: 65 mm
- Inner height: 45 mm
Customization Options
- Front and rear I/O panel layouts
- CNC-machined interface openings
- Internal mounting structure
- Thermal-transfer block arrangement
Applications
- Custom fanless industrial computer enclosures
- Industrial computer mechanical integration
- Project-specific aluminum enclosure development
