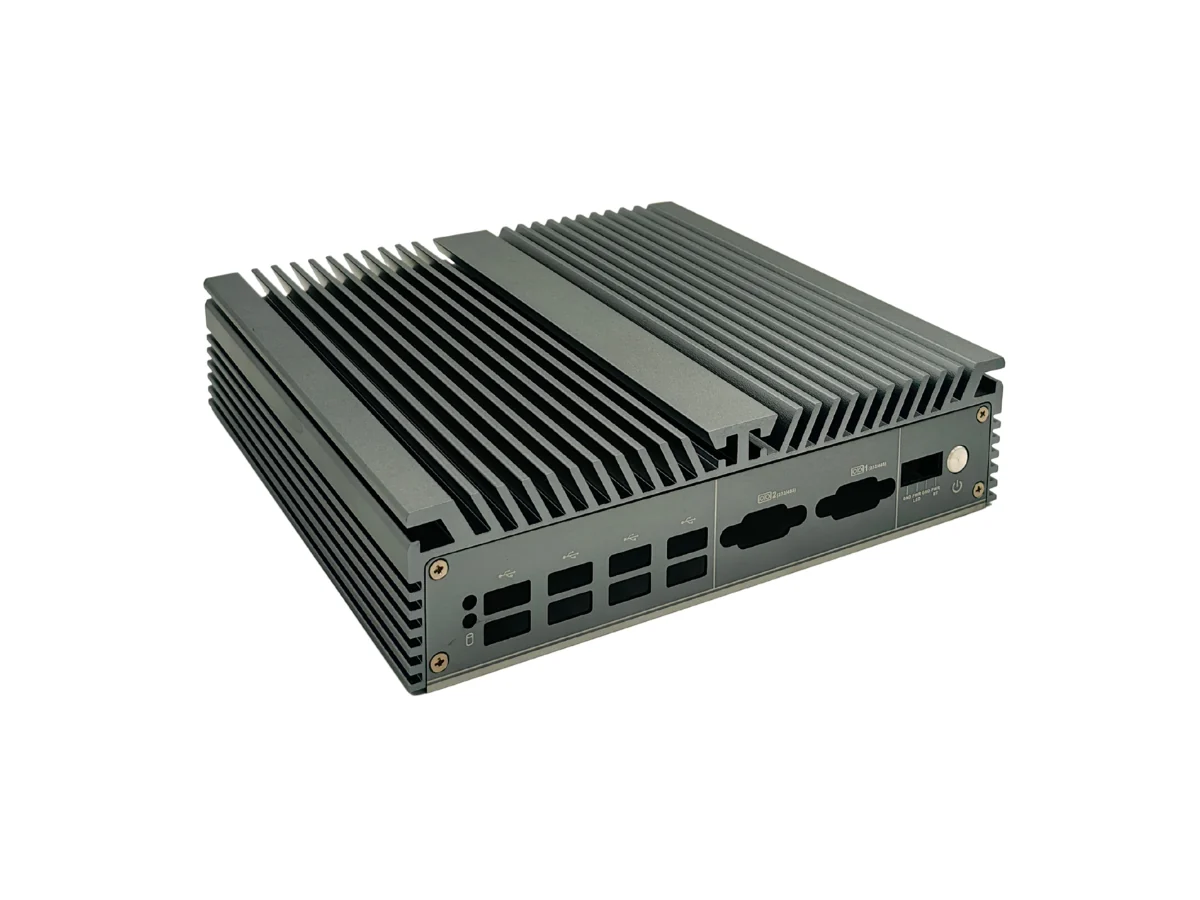

DM25 Custom Aluminum Heatsink Enclosure
DM25 is a low-profile, customizable extruded aluminum enclosure developed for fanless industrial PC integration and project-specific interface layouts.
Key Features
- Extruded aluminum body with integrated external heatsink fins
- CNC-machined front and rear panels for project-specific I/O openings
- Internal mounting structure for configurable component layouts
- Fanless passive heat-dissipation design
- OEM and ODM customization for enclosure and interface requirements
The images show reference enclosure structures and interface arrangements. Panel cutouts and internal mounting details can be adapted to the selected embedded hardware and installation needs.
Product Gallery
Open an image to examine the visible enclosure profile, CNC panel and internal mounting details.

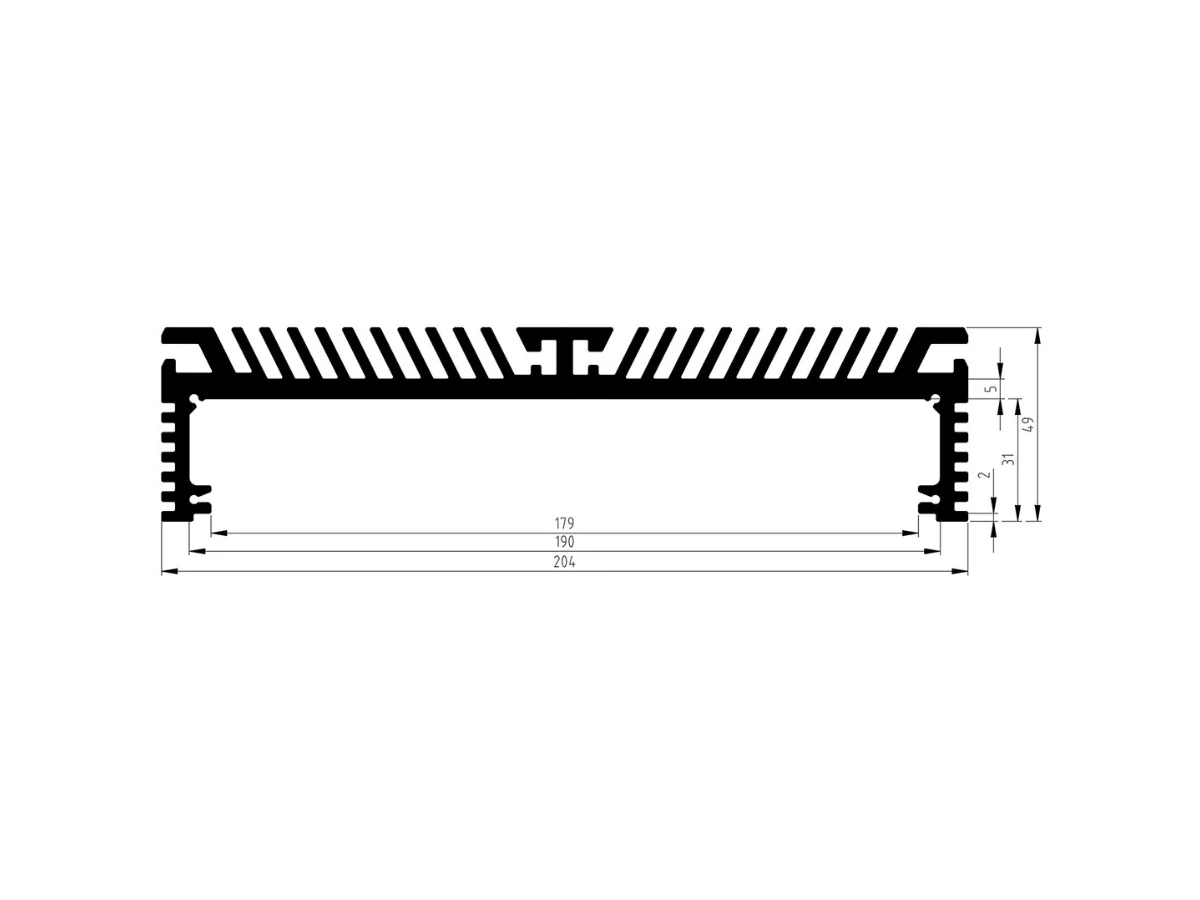

Extrusion Cross-Section

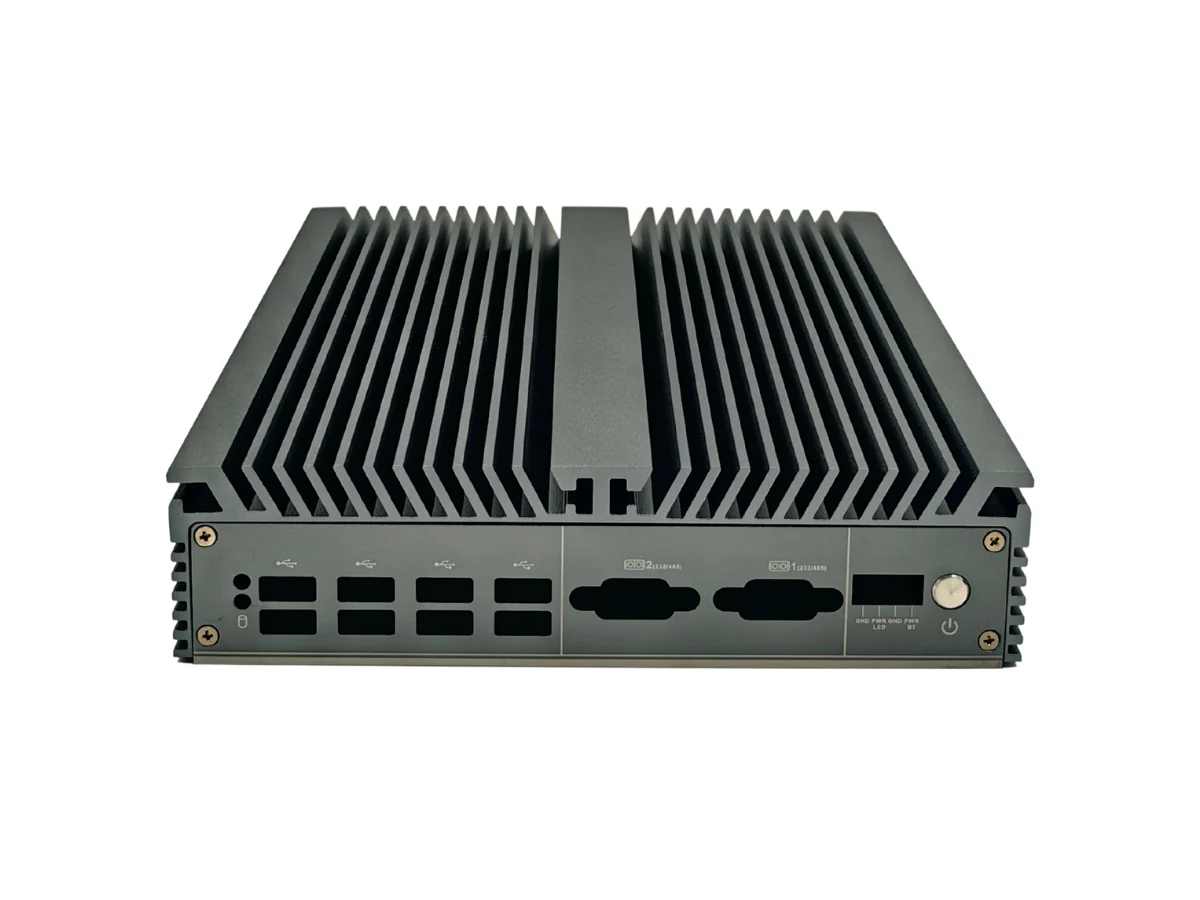

Custom CNC Front Panel

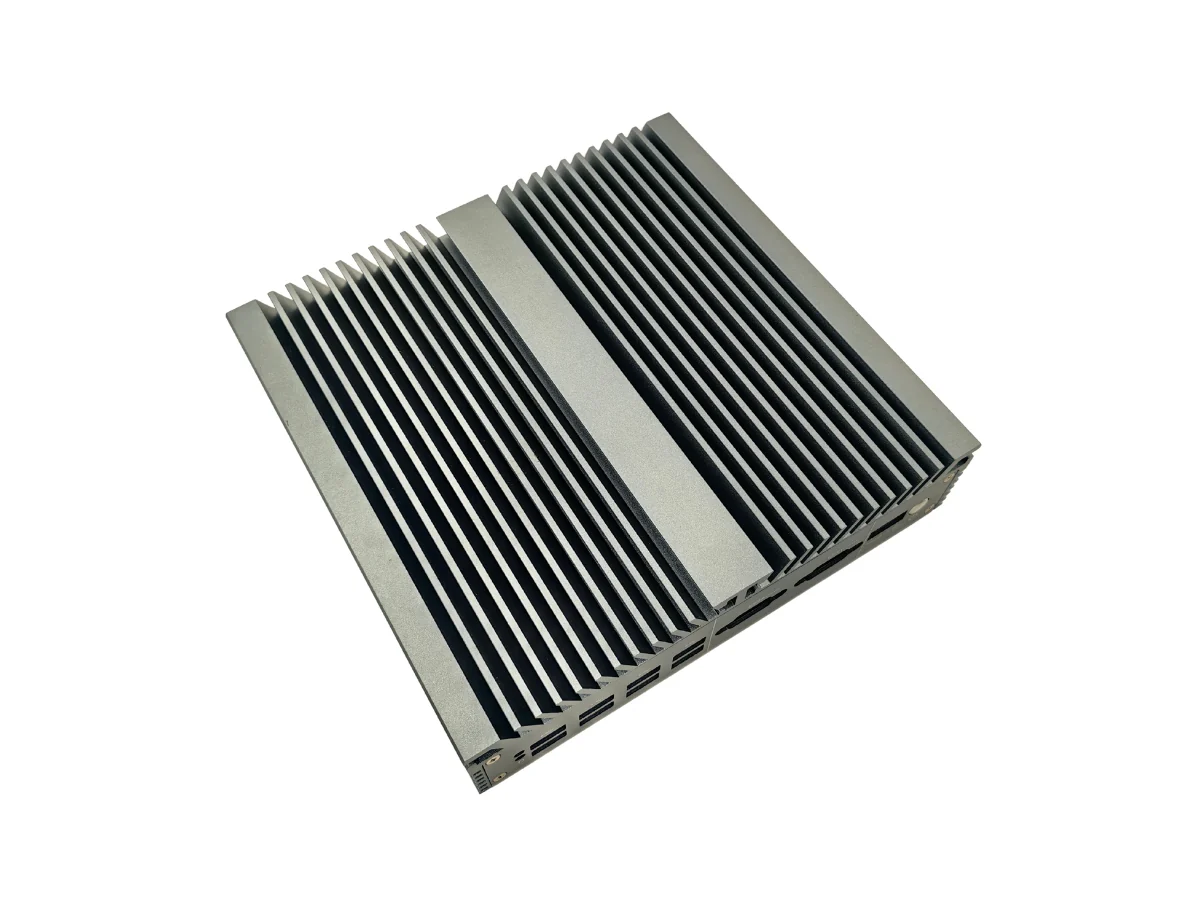

Top Angle View

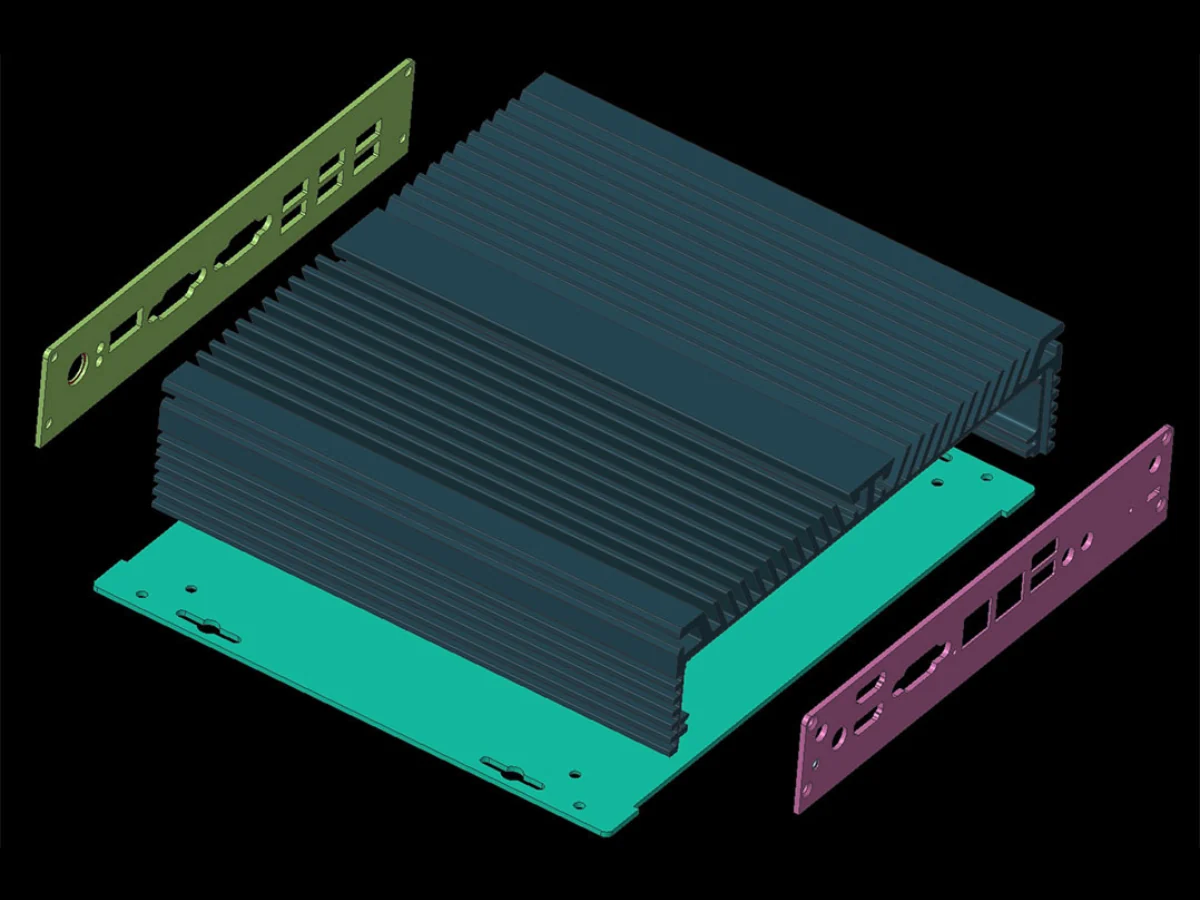

Exploded Structure

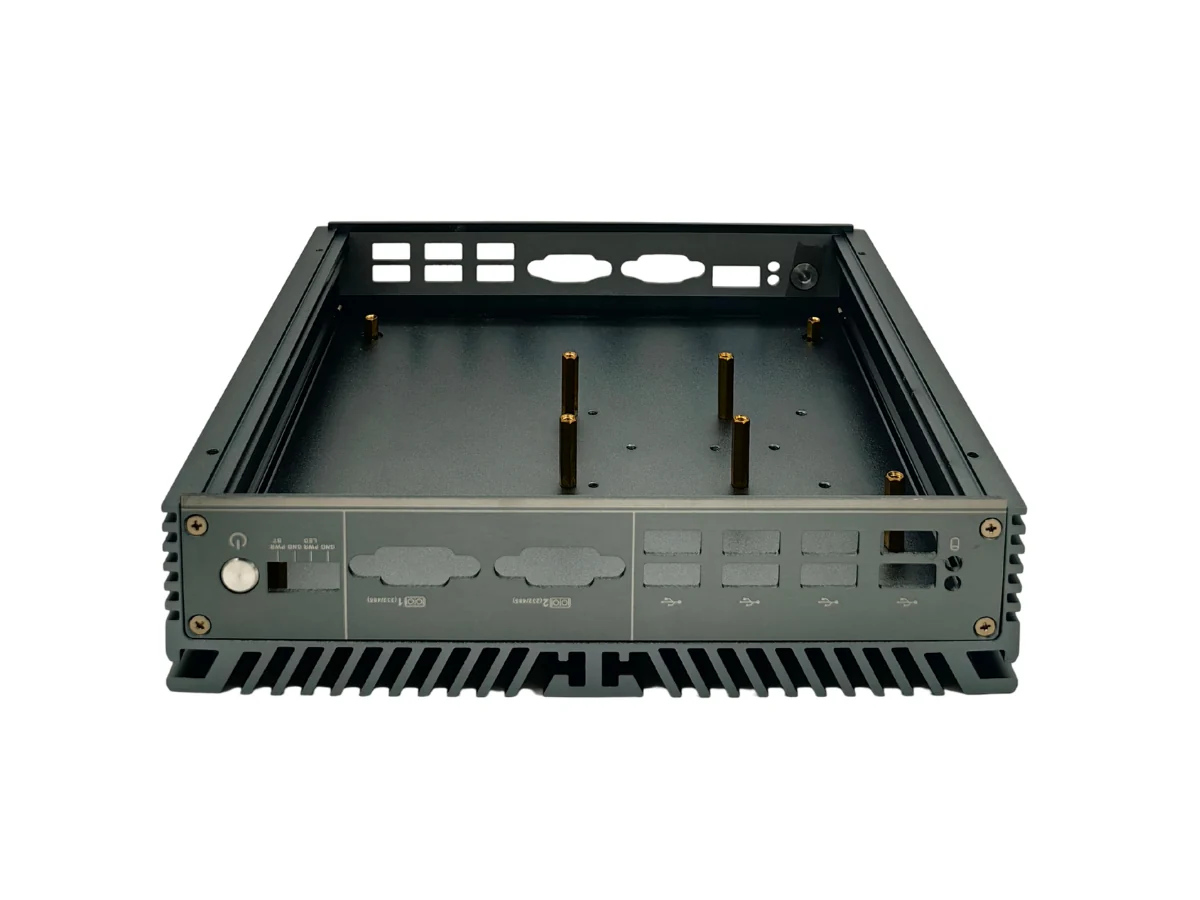

Front Panel and Internal Layout

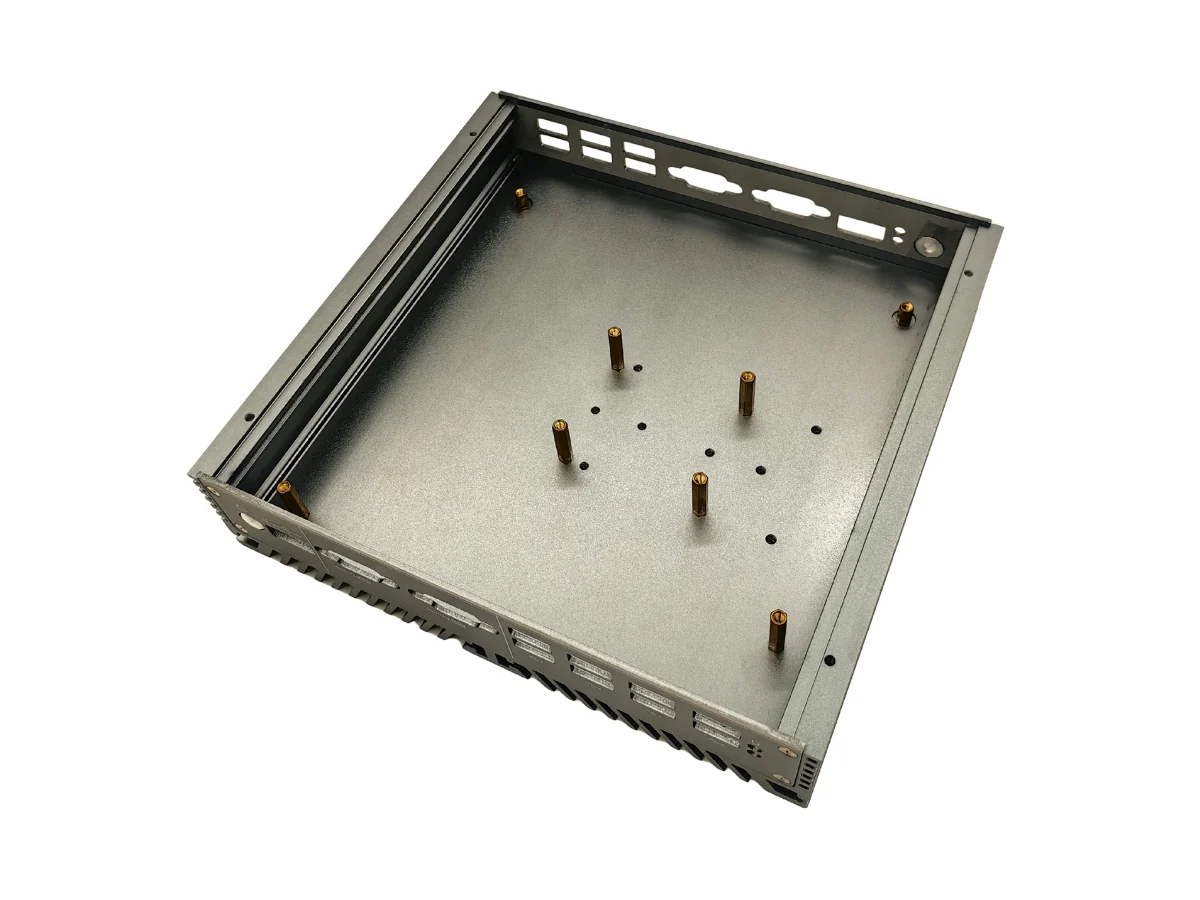

Internal Mounting Structure

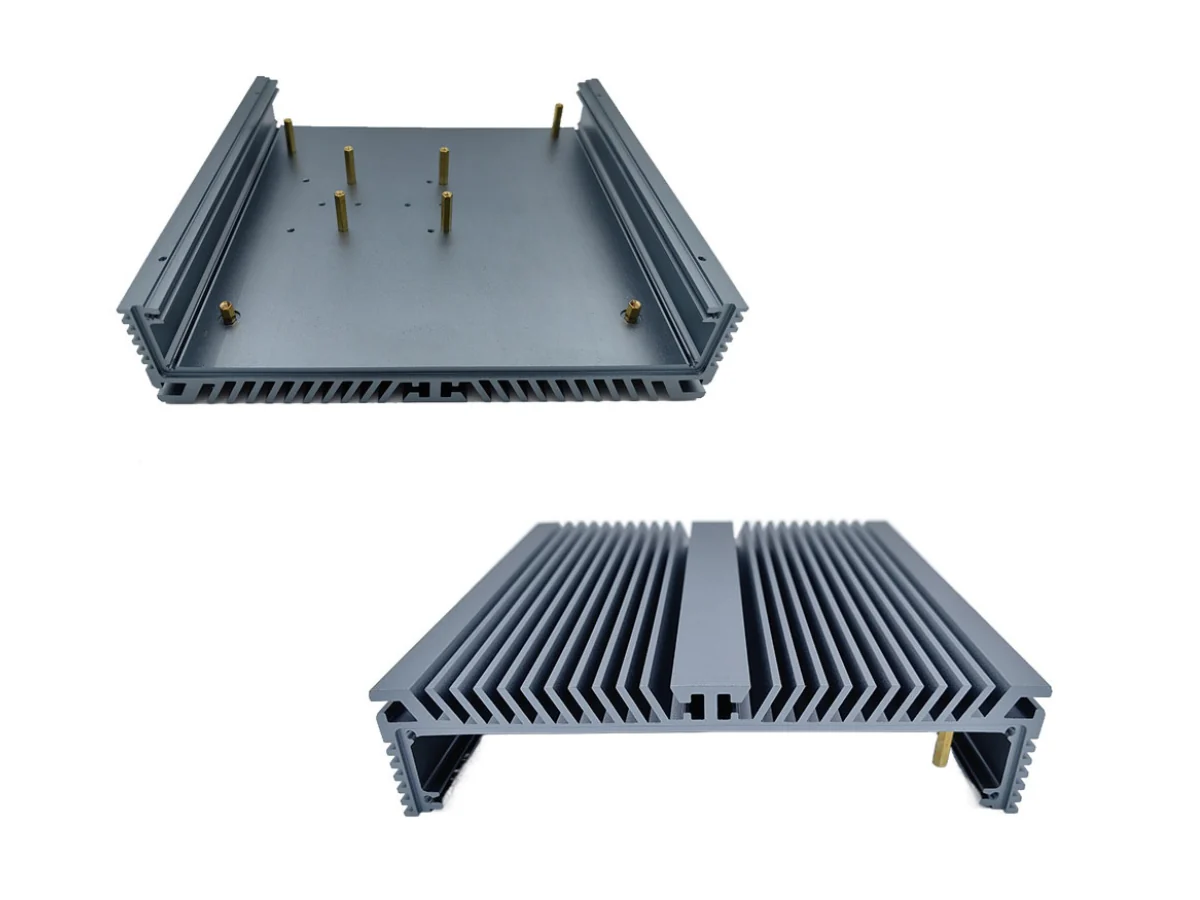

Top Cover and Bottom Chassis

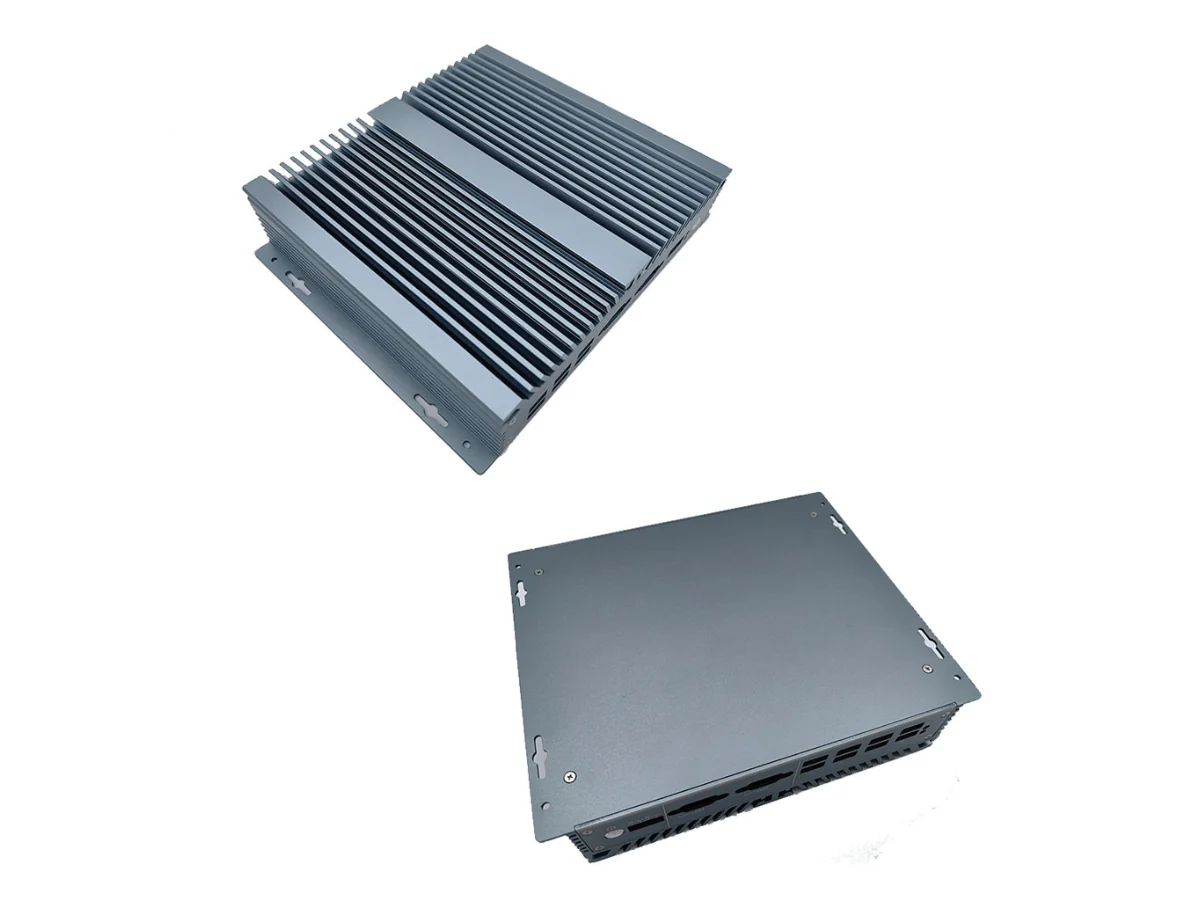

Top and Bottom Views
Customization Capabilities
- Custom CNC-machined front and rear panels
- Project-specific I/O cutout layouts
- Internal mounting structure adaptation
- Extruded heatsink enclosure development
- OEM and ODM enclosure customization
Integration Focus
- Fanless industrial computer enclosures
- Embedded control hardware
- Equipment-integrated computer systems
- Custom interface and installation requirements
Recommended Products
DM25 belongs to a coordinated aluminum enclosure family developed with a consistent heatsink profile and multiple enclosure sizes for different embedded motherboard formats and installation requirements.

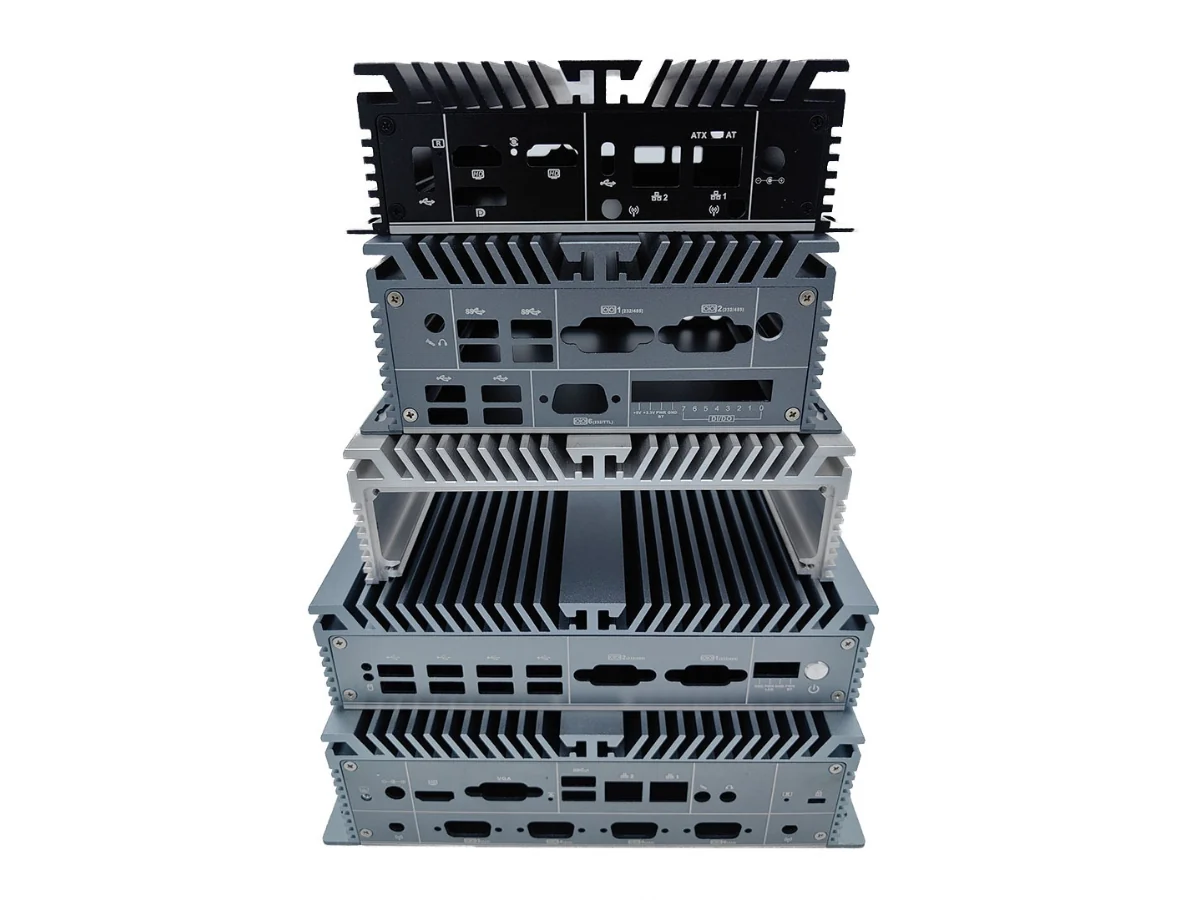

Consistent Family Profile
Front views illustrate a coordinated enclosure design language across the wider product family.

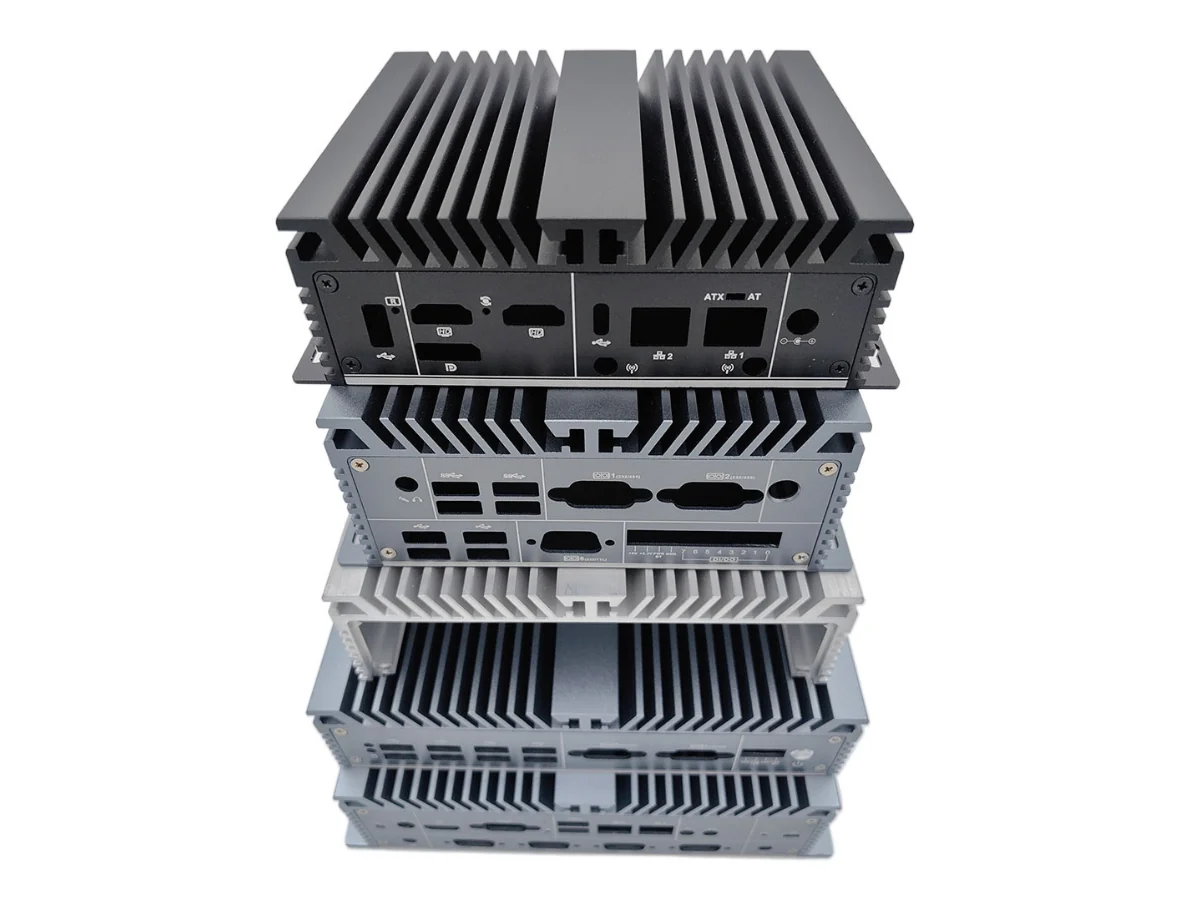

Multiple Enclosure Sizes
The series includes different enclosure proportions for varied embedded hardware and installation needs.

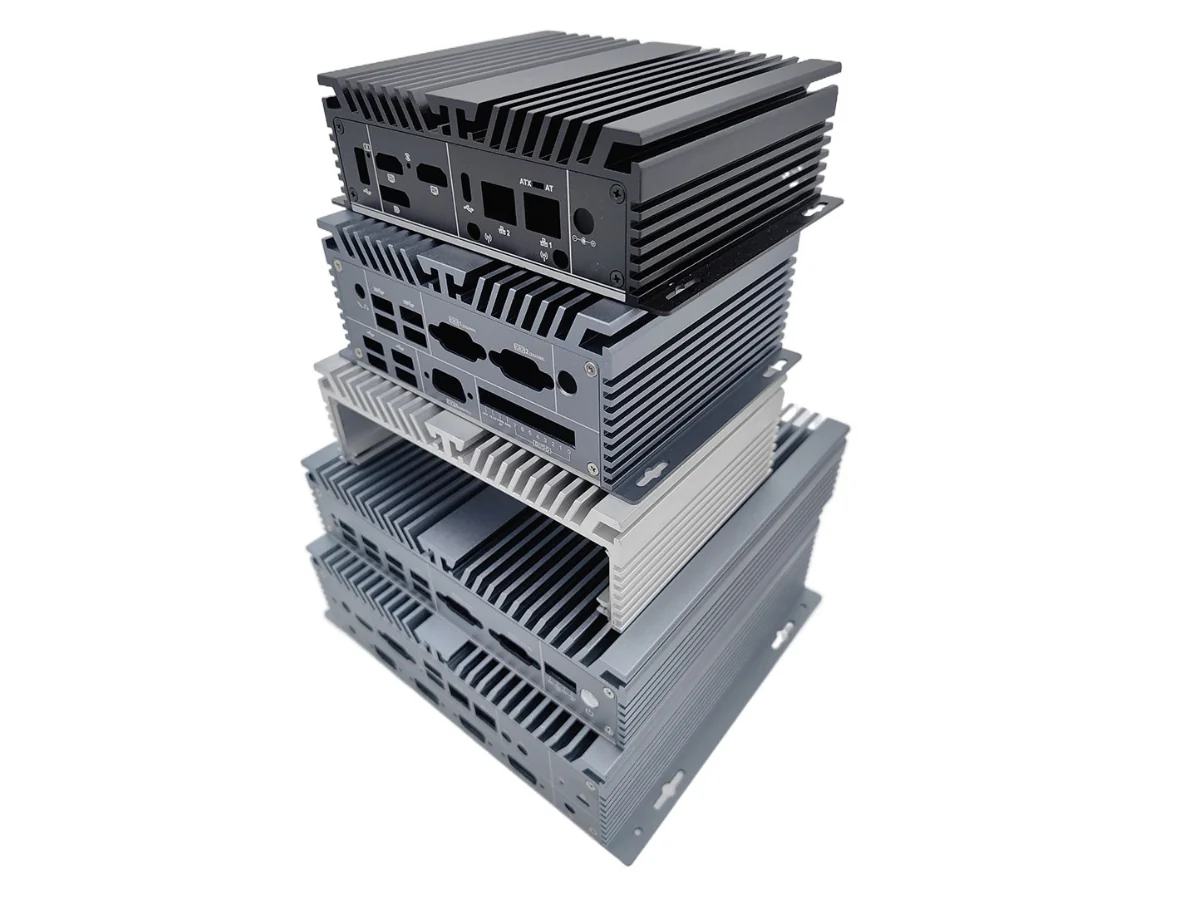

Related Structural Options
Angled views show the shared heatsink styling and varied enclosure configurations within the family.
Request a Quote for the DM25
Share your hardware layout, required I/O openings, mounting method and enclosure integration needs for an engineering review.
