SBC03 Custom Aluminum Enclosure
Modular enclosure platform for SBC and embedded computer integration.
View SBC03K18 Compact Aluminum Enclosure
K18 is a compact aluminum enclosure platform for Mini-ITX systems, embedded computers, compact industrial PC projects and OEM / ODM hardware integration. Its mechanical layout provides a practical starting point for reviewing hardware fit, I/O access, storage and project-specific enclosure customization.
Key Features
- Compact chassis structure for Mini-ITX and embedded computer projects
- Customizable front and rear I/O panels for project-specific connectors, switches and indicators
- Internal component integration for motherboard, power, cable and accessory layouts
- Storage mounting support for 2.5-inch SSD or HDD integration
- Enclosure machining customization for cutouts, mounting features and mechanical details
- Prototype and production support for OEM / ODM hardware programs
The illustrated configuration is a reference platform. The final enclosure can be reviewed around the selected hardware, connector locations, component height, cable clearance, installation method and production requirements.

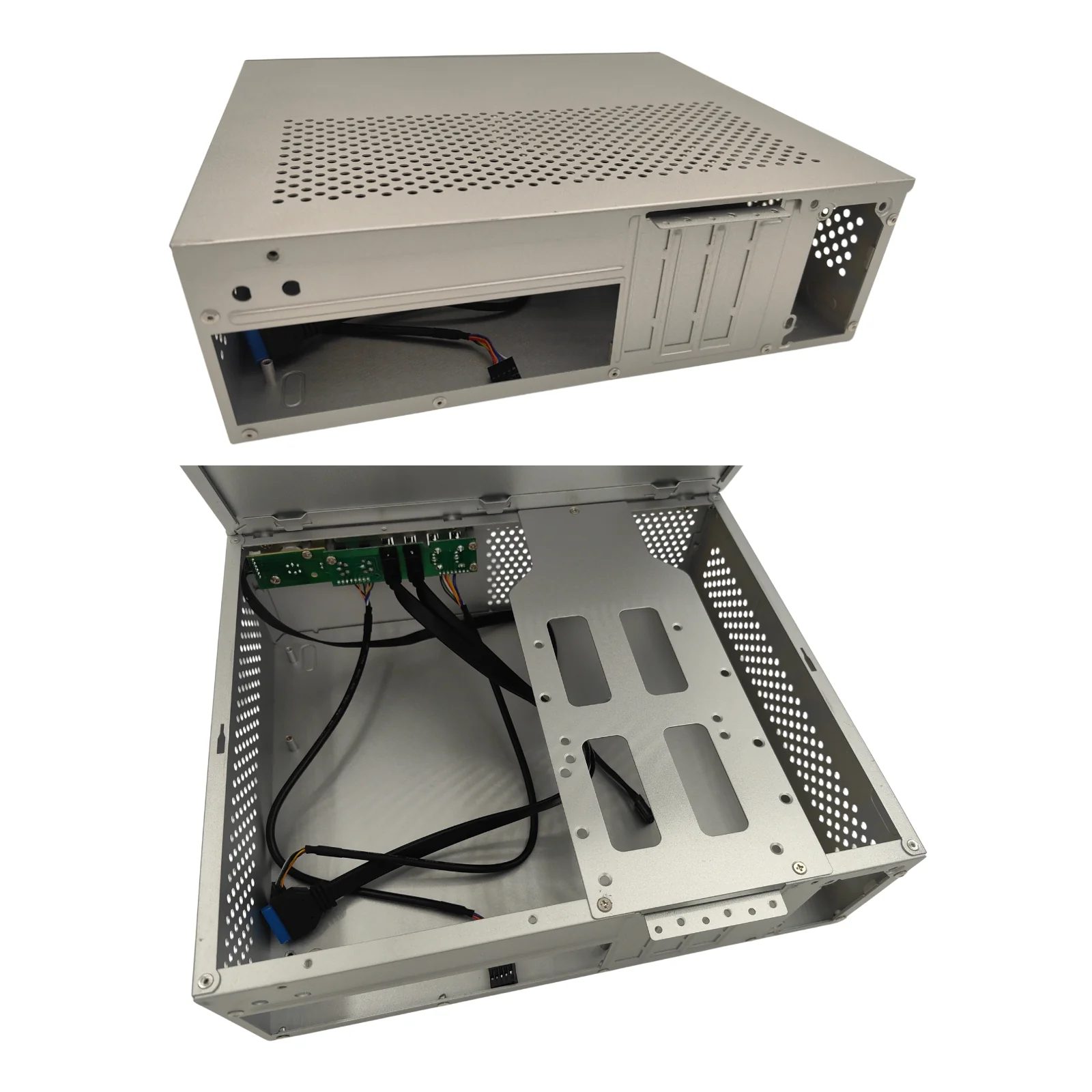

Internal Structure
The K18 internal layout is arranged to support practical component mounting and compact hardware integration. Motherboard position, power arrangement, cable routing and accessory locations can be reviewed together so the enclosure is adapted to the selected Mini-ITX or embedded computing hardware.
Flexible Hardware Integration
Internal mounting provisions and clearances can be evaluated for the motherboard and project-specific hardware assembly.

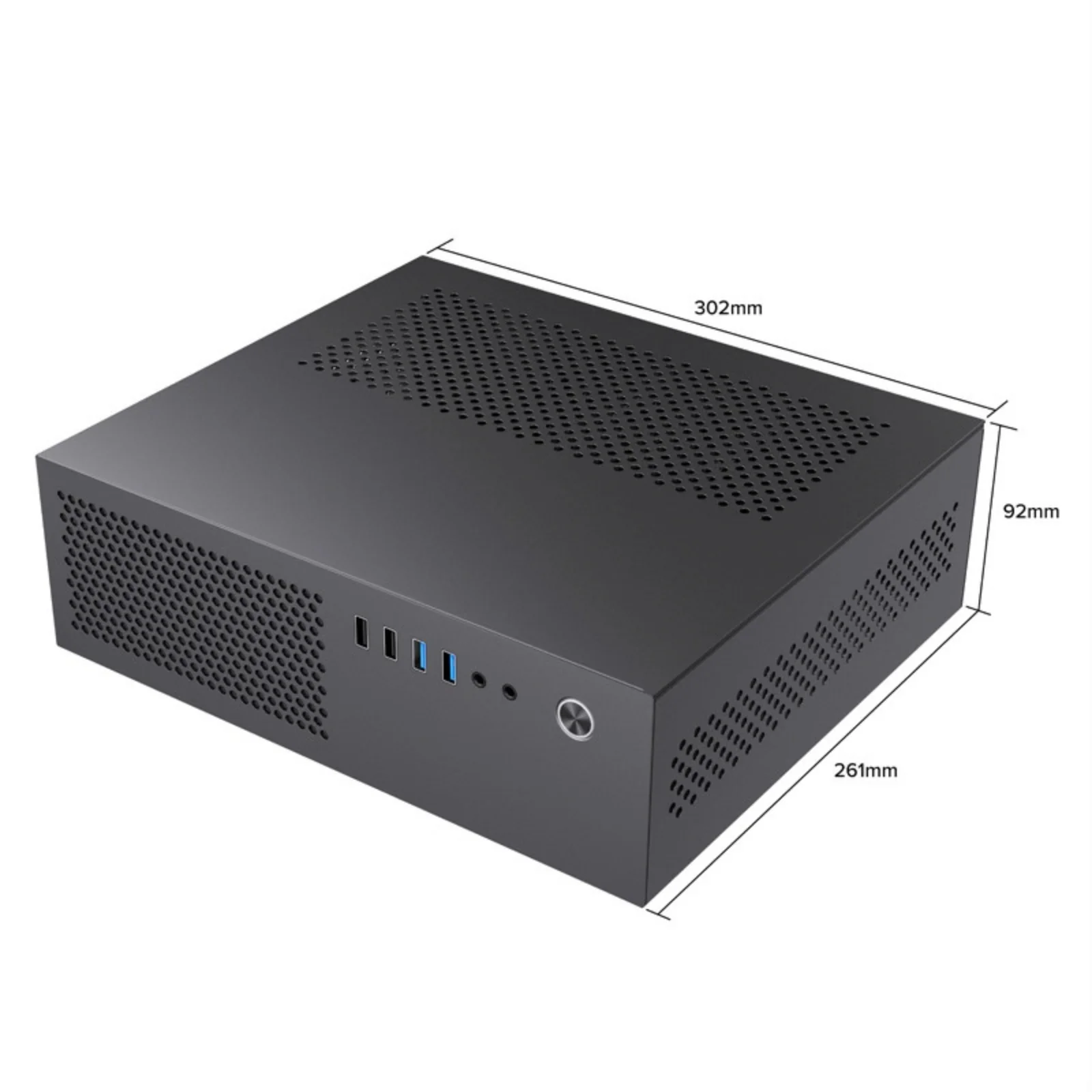

Dimensions
The K18 dimensional drawing provides a reference for project fit evaluation, including the available installation envelope and the relationship between enclosure features. Final dimensions and mechanical details can be adjusted when the selected hardware or application requires a different configuration.
Enclosure Fit Reference
Use the reference dimensions when assessing mechanical fit, mounting space and integration requirements for a compact industrial PC or embedded system.

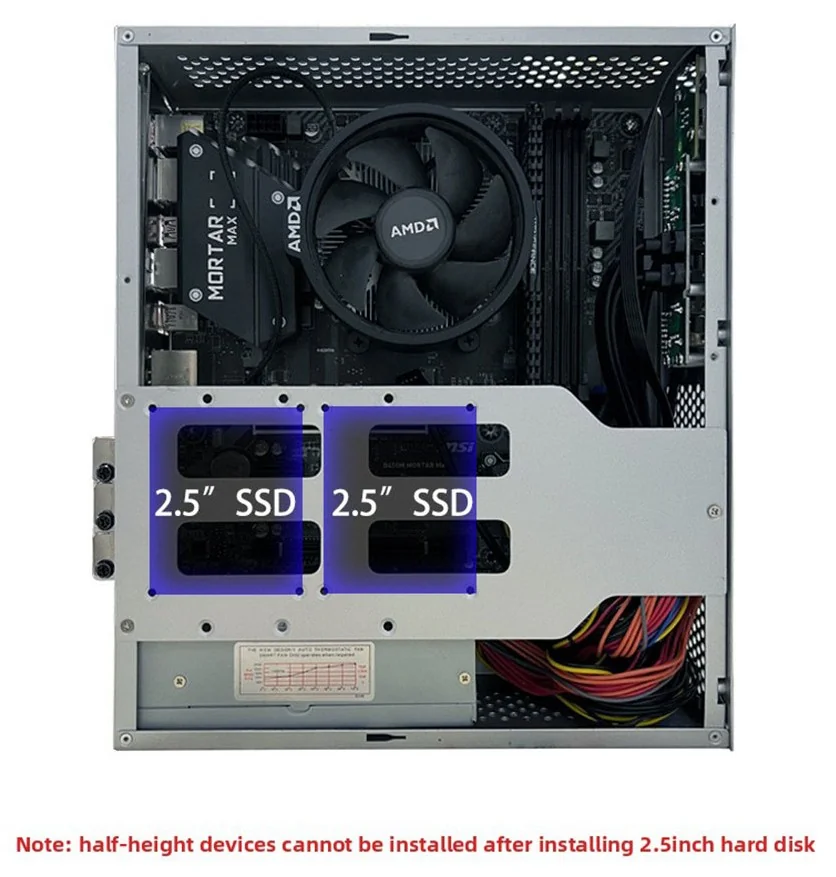

Storage Mounting
K18 supports 2.5-inch SSD or HDD mounting for projects that require internal storage. The mounting arrangement can be coordinated with the motherboard, power connections, cable routing and service-access requirements of the finished hardware.
2.5-Inch Storage Integration
Storage mounting provides flexibility for SSD or HDD integration while maintaining a compact enclosure layout.
OEM / ODM Support
Domify supports K18 enclosure projects from mechanical design review through prototype and batch production. Available support can include CNC machining, custom I/O cutouts, surface finishing, mounting features, internal layout refinement and production planning for OEM / ODM hardware integration.
- Mechanical design and integration review
- CNC machining and custom I/O panel cutouts
- Surface finishing and project-specific appearance options
- Prototype support for design validation
- Batch production support for approved enclosure configurations
Start Your K18 Enclosure Project
Share your motherboard dimensions, I/O map, storage requirements, mounting method and target quantity for an engineering review or quotation.
