SBC01 Compact Custom Aluminum Heatsink Enclosure

SBC01 is a compact extruded aluminum heatsink enclosure with CNC-machined I/O panels, an integrated cooling-fin structure and flexible internal mounting for embedded and industrial computer applications.

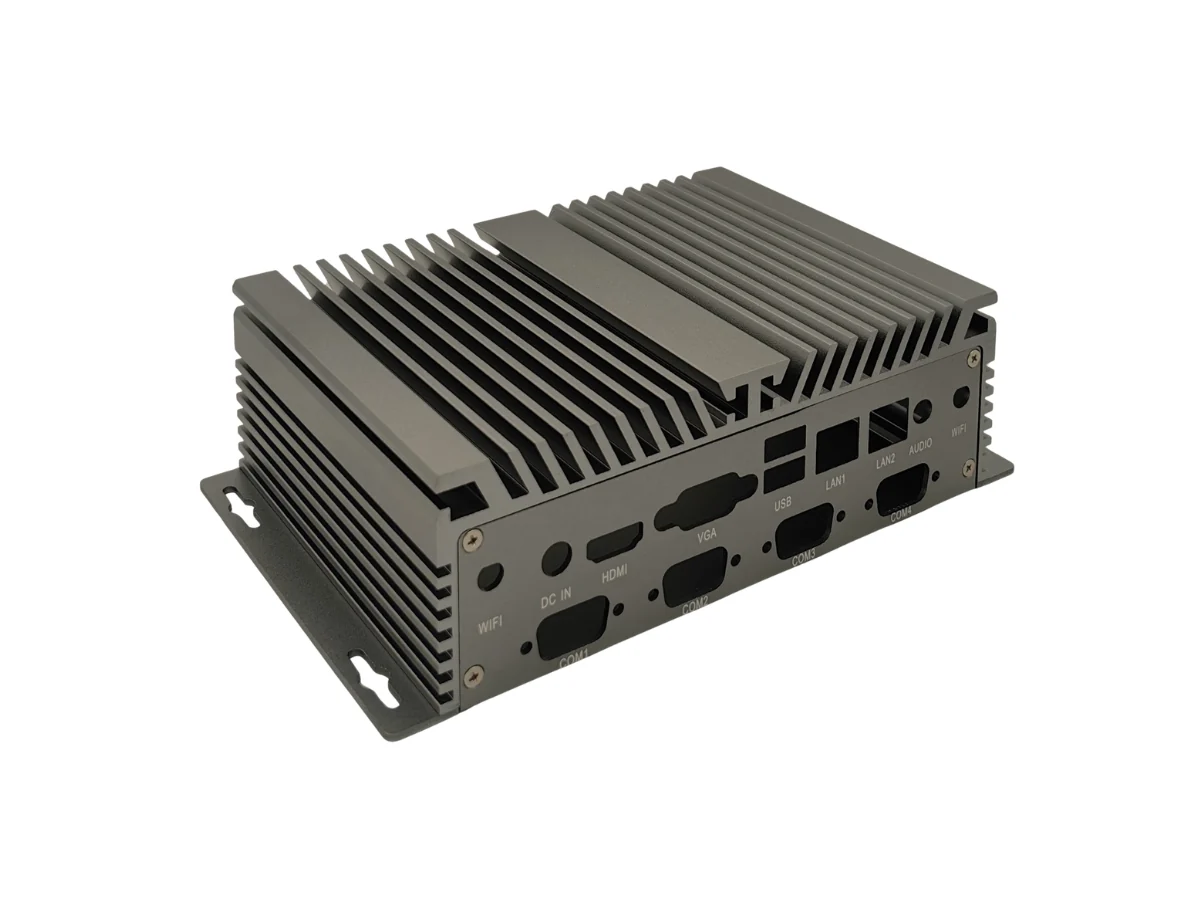

SBC01 compact aluminum heatsink enclosure viewed from the front angle

Key Features

  • Extruded aluminum enclosure with integrated cooling fins
  • CNC-machined front and rear I/O panels
  • Flexible internal mounting points for project-specific layouts
  • Wall-mounting base plate with keyhole mounting slots
  • Compact modular construction for embedded computer integration

The visible panel openings and internal mounting arrangement represent the pictured SBC01 configuration and can be reviewed for a custom enclosure project.

Contact UsBack to Products

Overview

The SBC01 combines an extruded heatsink profile, removable CNC-machined interface panels and an internal mounting base. Its finned enclosure body provides an integrated cooling structure, while the bottom plate supports wall mounting and flexible placement of internal components.

Dimensions / Cross-section

The confirmed extrusion cross-section has an overall width of 174 mm and an overall height of 56 mm. No enclosure length is specified by the available drawing.

SBC01 aluminum extrusion cross-section showing 174 millimeter width and 56 millimeter height
  • Overall cross-section width: 174 mm
  • Overall cross-section height: 56 mm

Product Gallery

The main view above and the nine views below form the ten-image SBC01 product gallery.

SBC01 extruded aluminum profile cross-section with reference dimensions

Extrusion Cross-Section

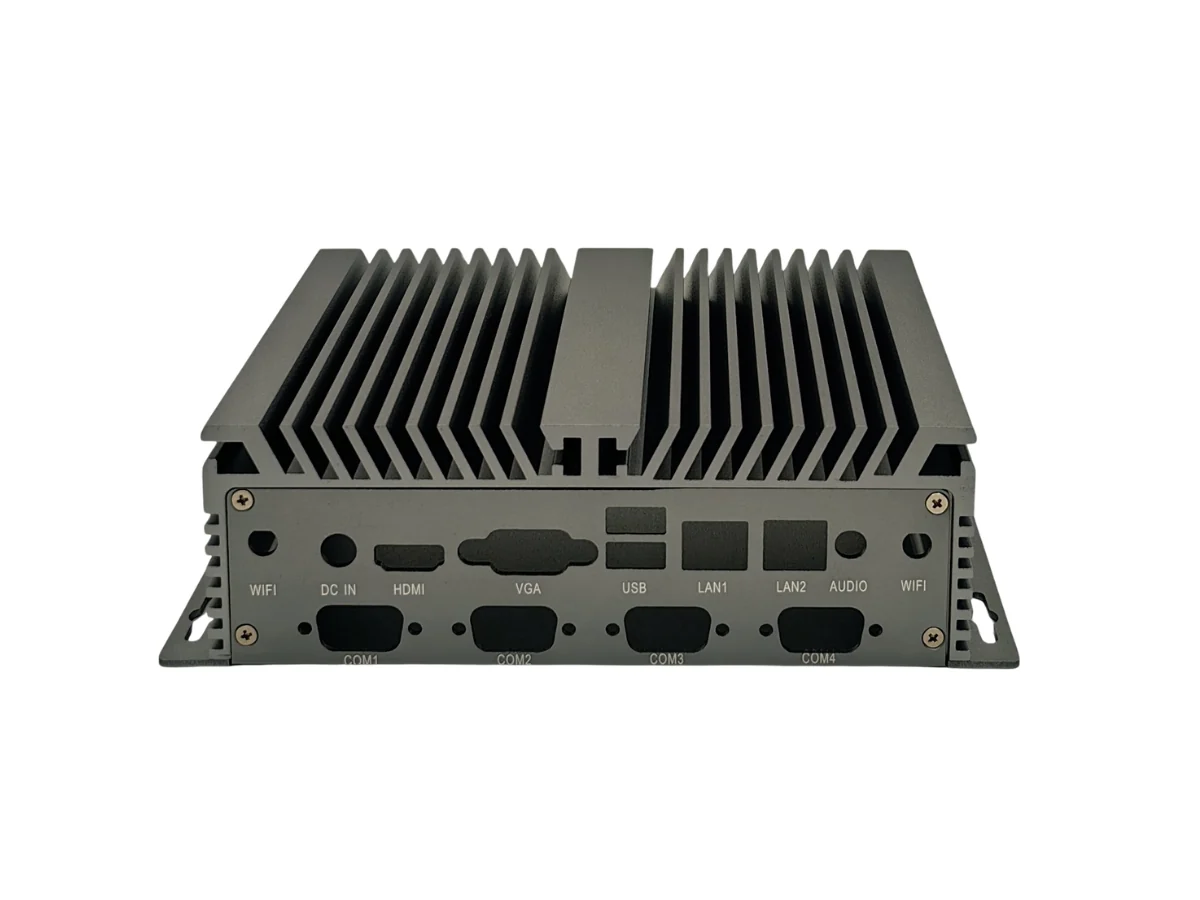

SBC01 front panel showing CNC-machined interface openings

CNC Interface Panel

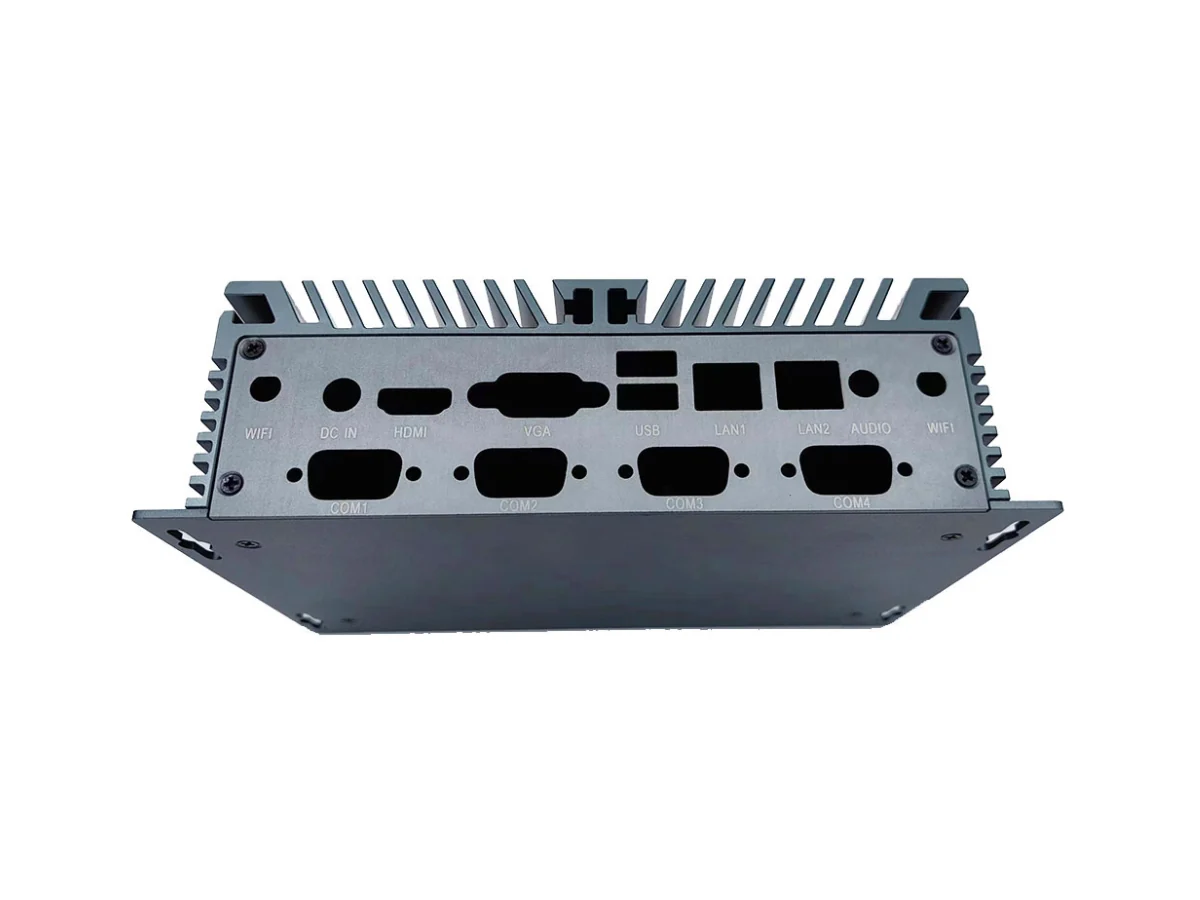

SBC01 front interface panel viewed together with the bottom mounting plate

Front Panel and Bottom Plate

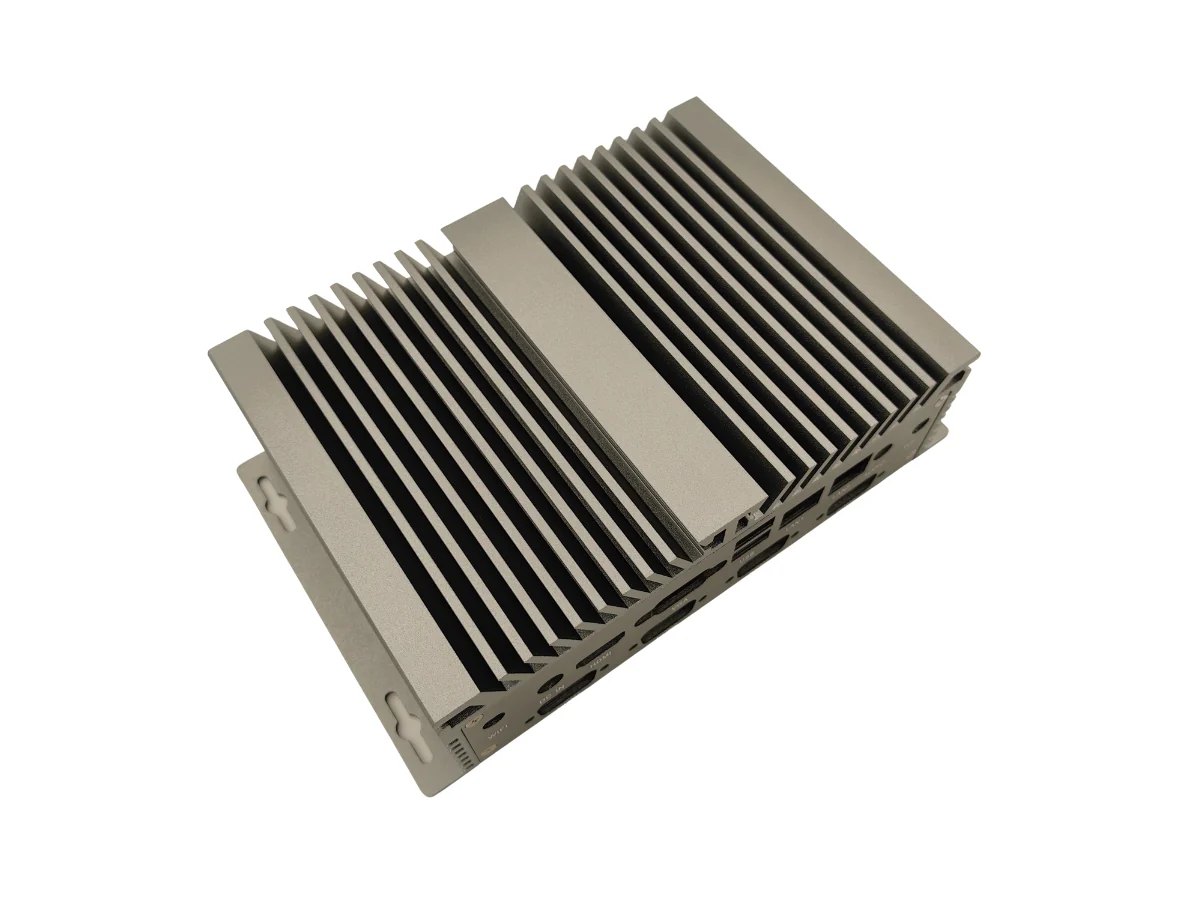

SBC01 enclosure viewed from above at an angle with cooling fins visible

Top Angle View

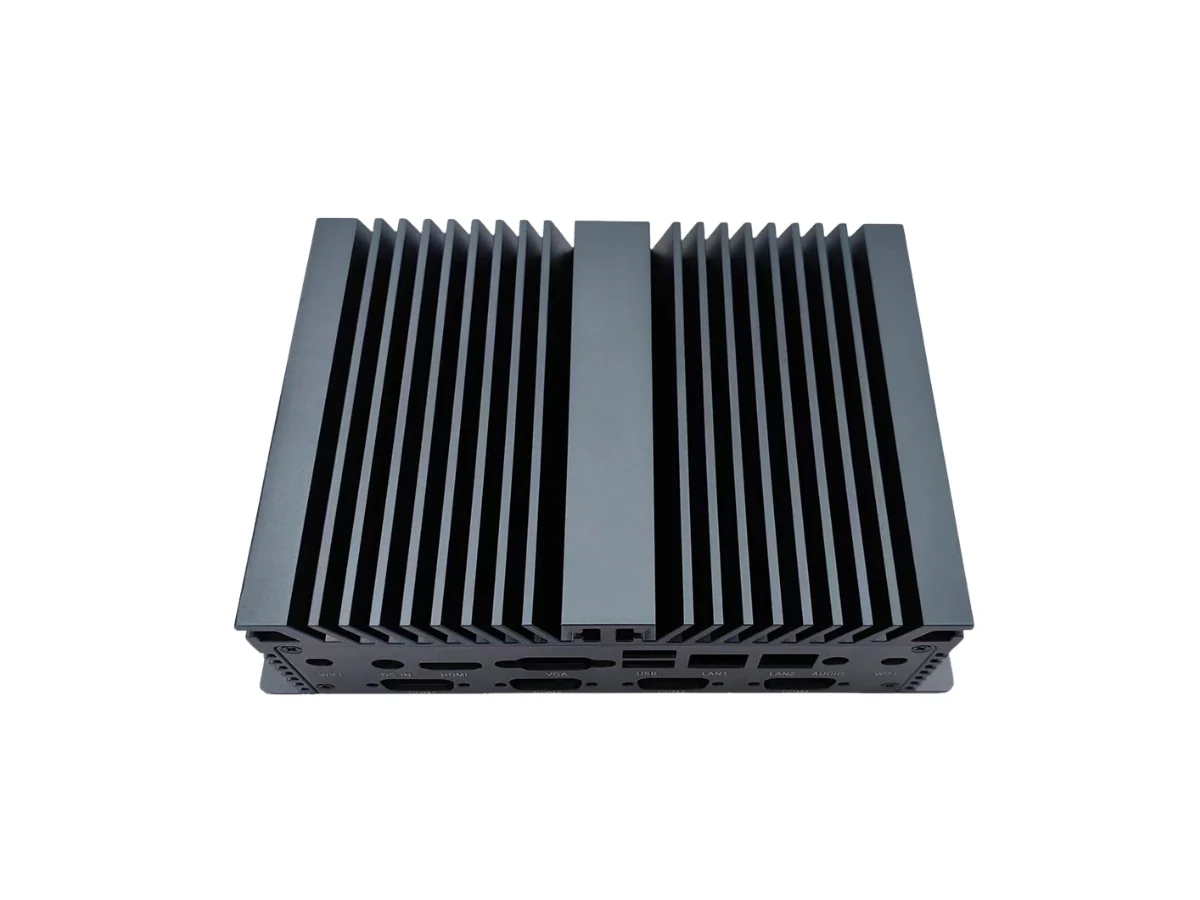

Top view of the SBC01 enclosure showing its parallel heatsink fins

Top View

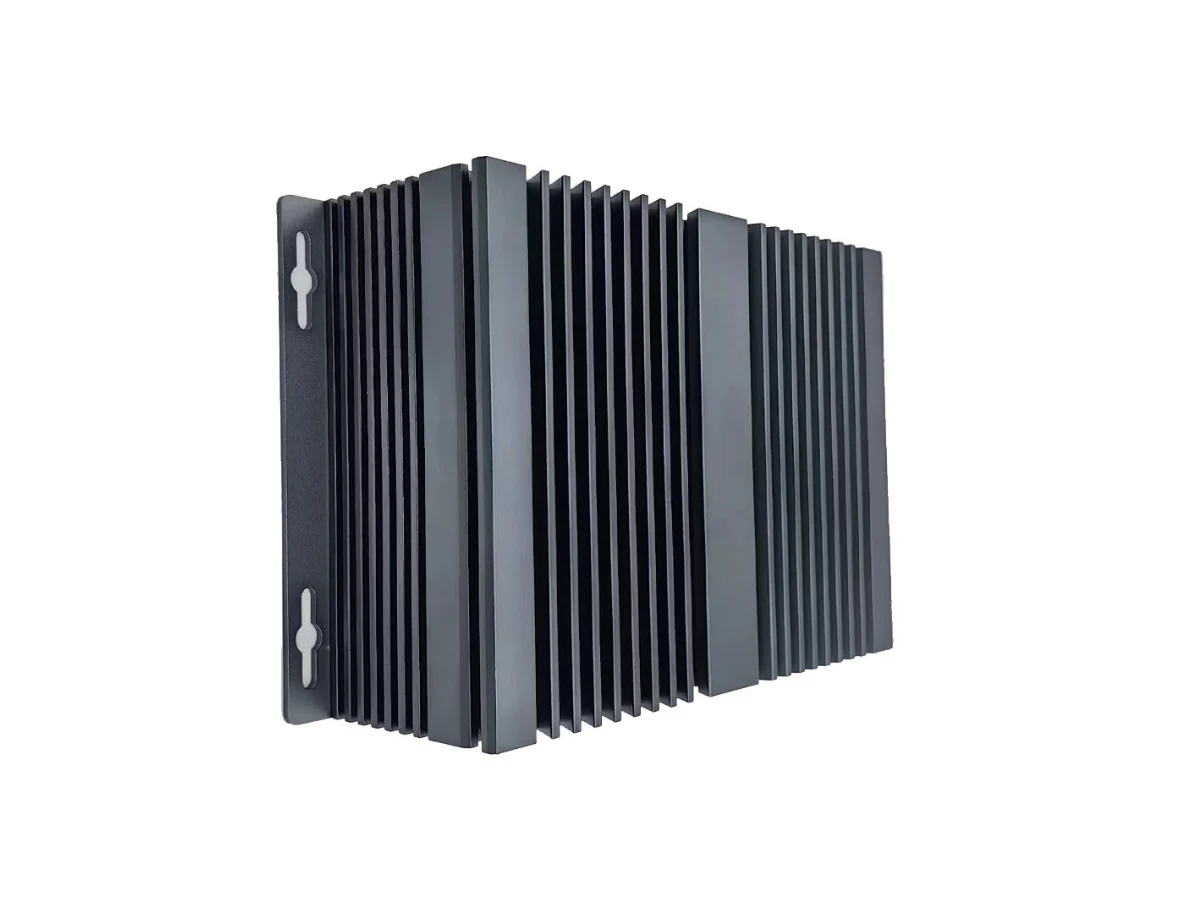

SBC01 enclosure standing vertically with wall-mounting slots visible

Vertical Mounting View

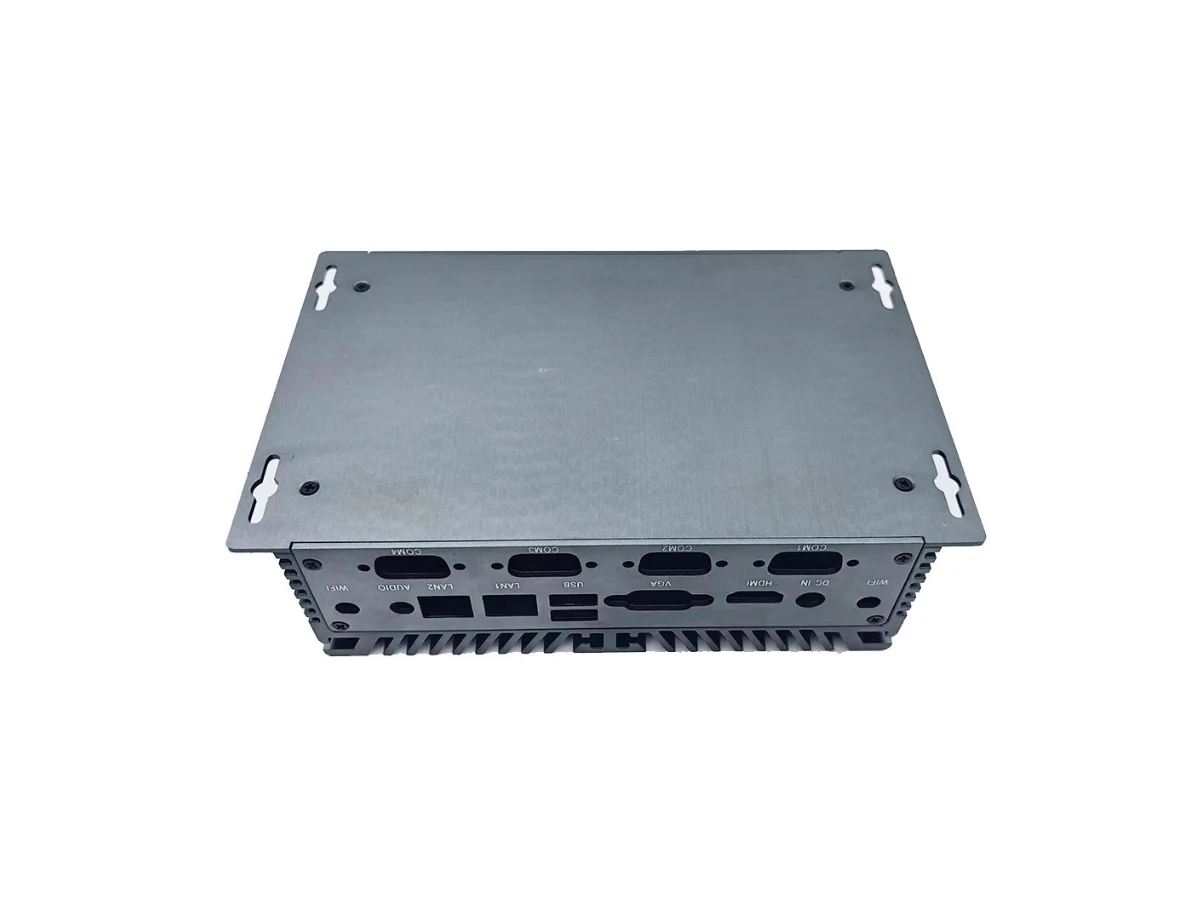

SBC01 bottom mounting plate with four keyhole installation slots

Bottom Mounting Plate

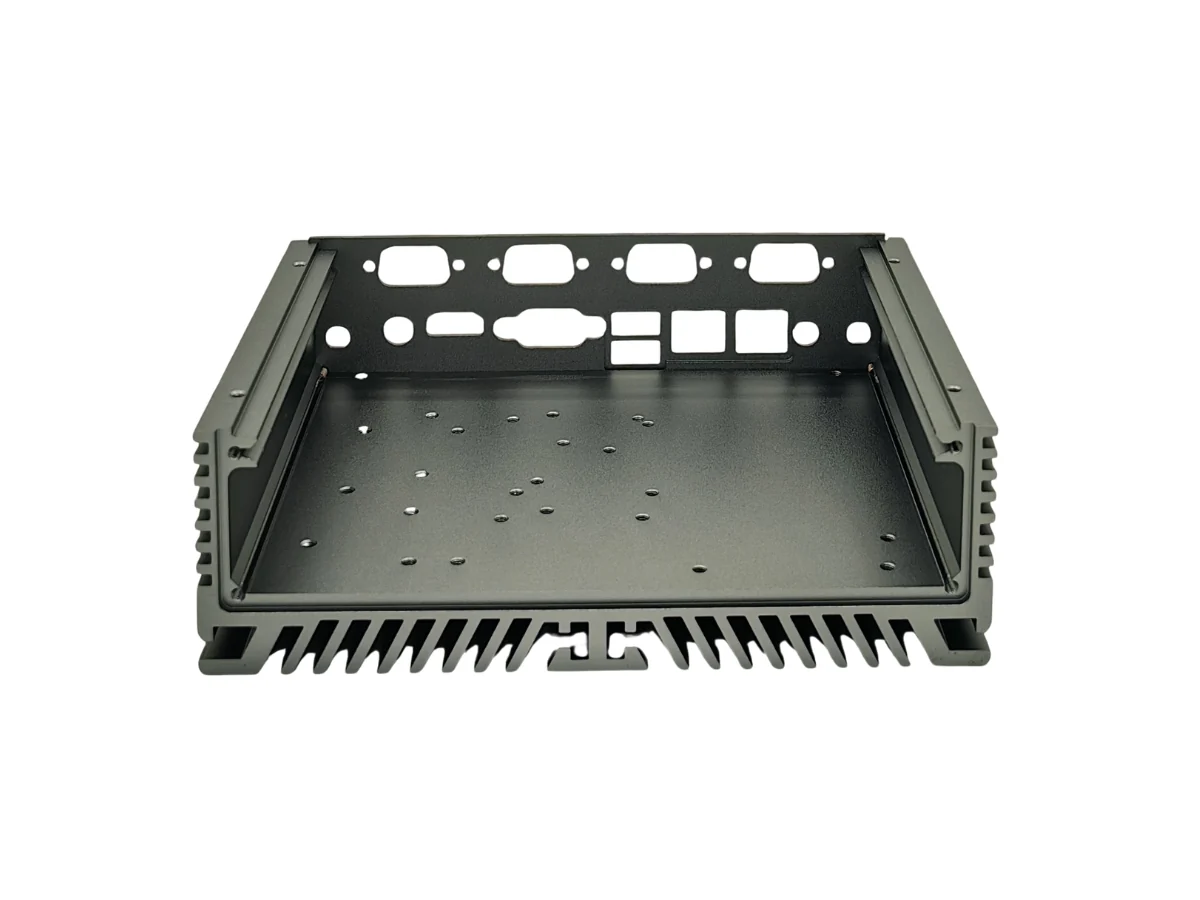

Open SBC01 enclosure viewed from the front with internal mounting holes visible

Internal Structure

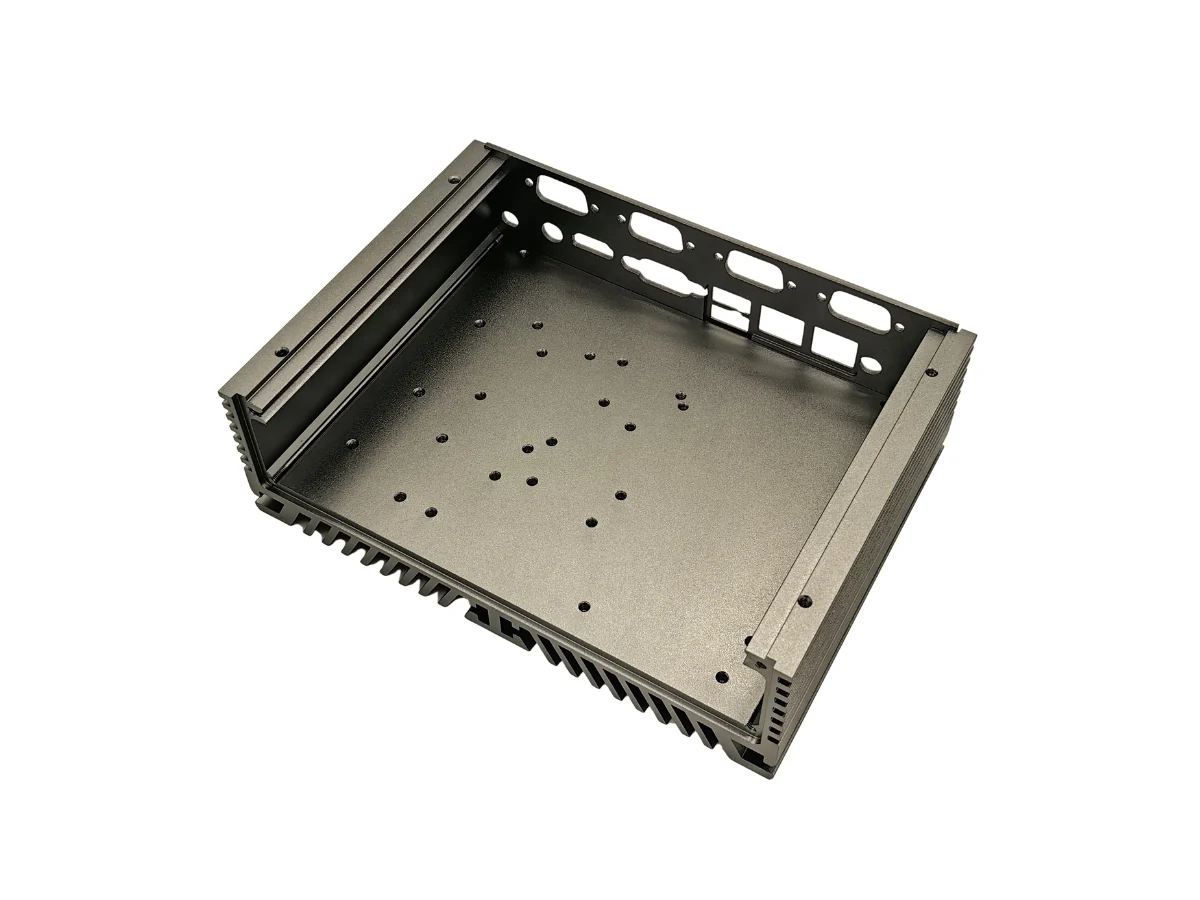

Open SBC01 enclosure shown at an angle with the internal mounting layout visible

Internal Mounting Layout

Recommended Products

Explore related aluminum enclosure sizes developed with the same heatsink profile and modular construction concept.

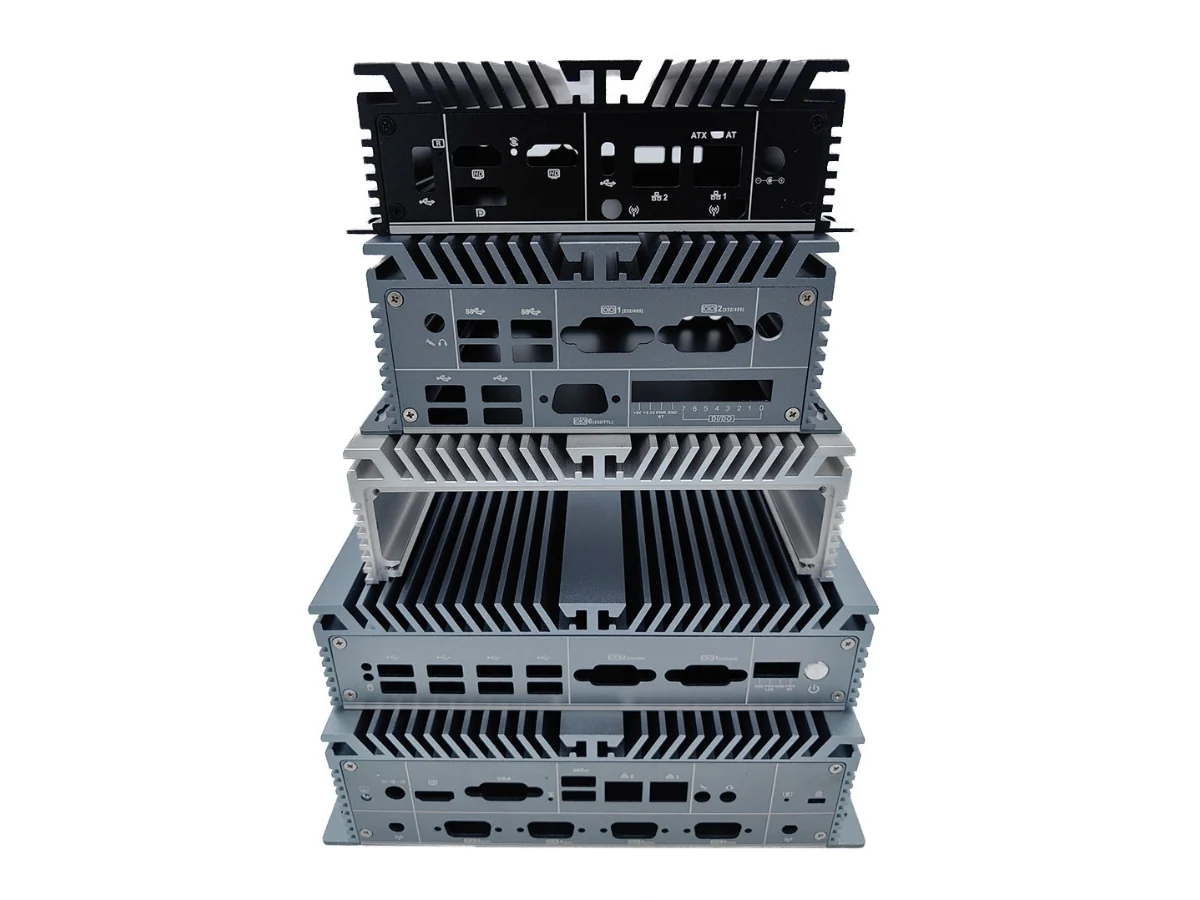

Related aluminum heatsink enclosures displayed together from the front

Series Front Lineup

Front views show the shared enclosure profile across related configurations.

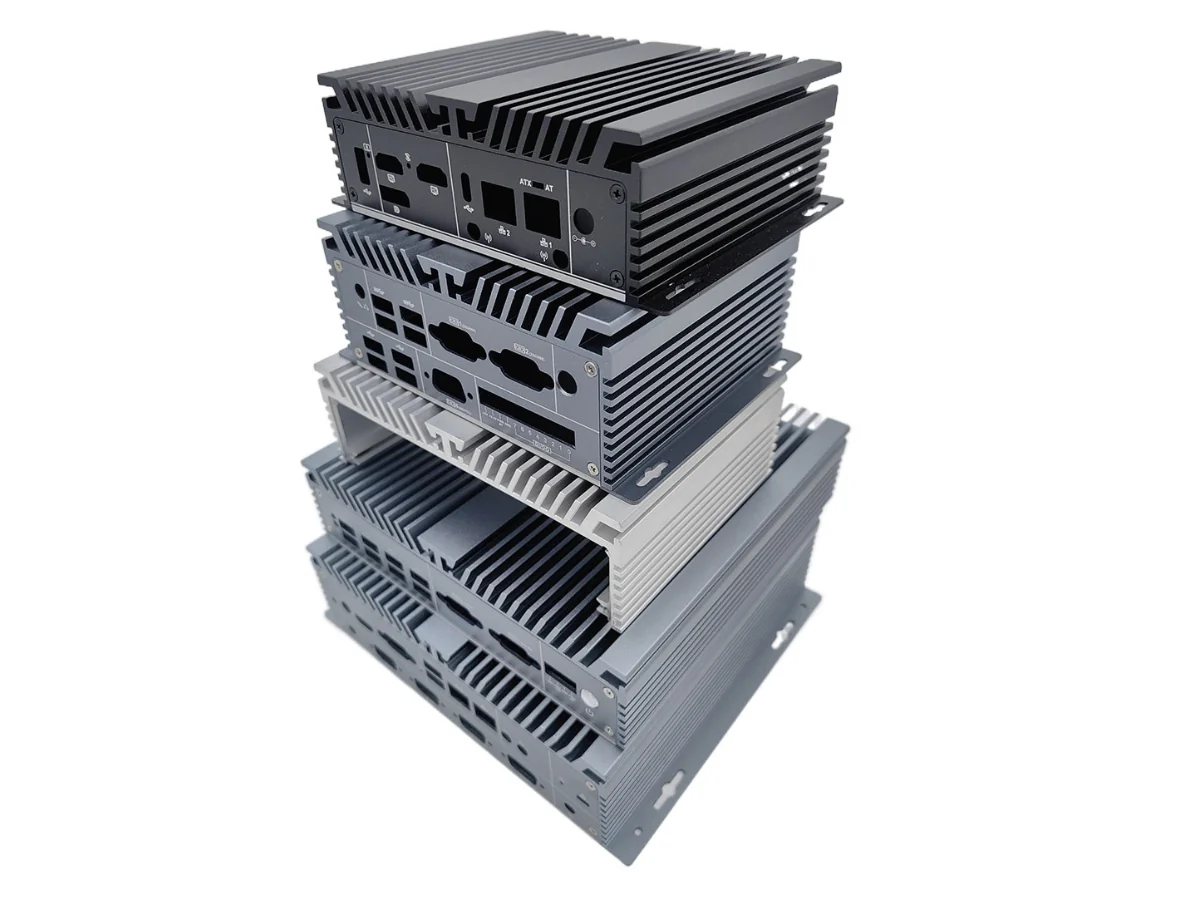

Related aluminum heatsink enclosures displayed in an angled lineup

Series Angle Lineup

Angled views illustrate the continued finned profile and modular construction concept.

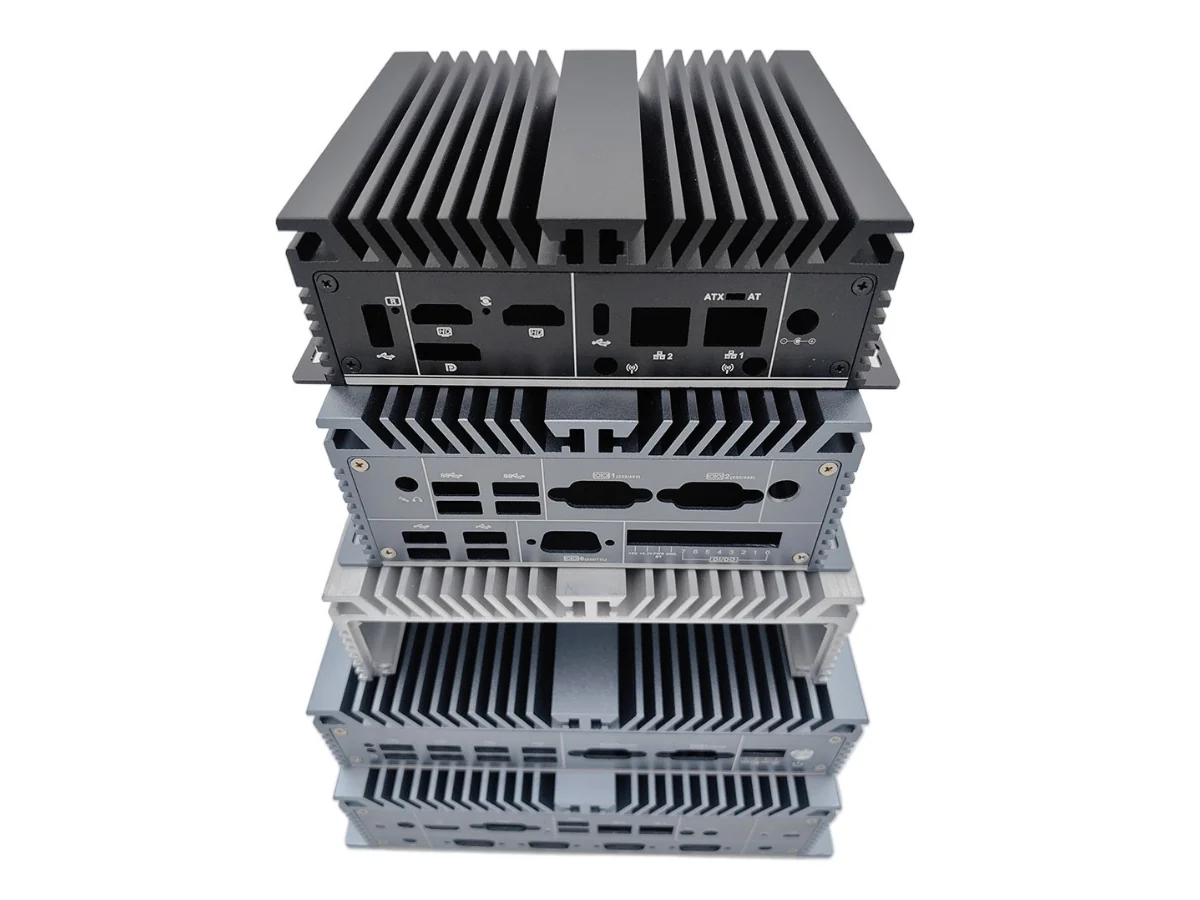

Related aluminum heatsink enclosures of visibly different sizes stacked for comparison
