SBC02 Custom Aluminum Enclosure

SBC02 is a customizable extruded aluminum enclosure platform for embedded and industrial electronics projects, combining a heatsink-style exterior with configurable panels and internal mechanical integration.

SBC02 custom extruded aluminum enclosure shown from the front angle

Key Features

Extruded aluminum enclosure with a heatsink-style finned exterior
CNC-machined front and rear panel customization for project-specific layouts
Internal mounting layout that can be reviewed around the electronics assembly
Bottom plate and standoff mounting structure for mechanical integration
OEM / ODM mechanical customization with prototype and small-batch engineering support

The visible openings, mounting positions and enclosure details reflect the pictured SBC02 configuration. Domify can review them against the requirements of a custom electronics enclosure project.

Request an Engineering Review Request a Quote

Exterior and Heatsink Structure

The SBC02 enclosure uses an extruded body with a finned, heatsink-style outer profile. This construction provides a practical starting point for embedded and industrial electronics housings where the enclosure appearance, panel layout and mechanical assembly need to be coordinated.

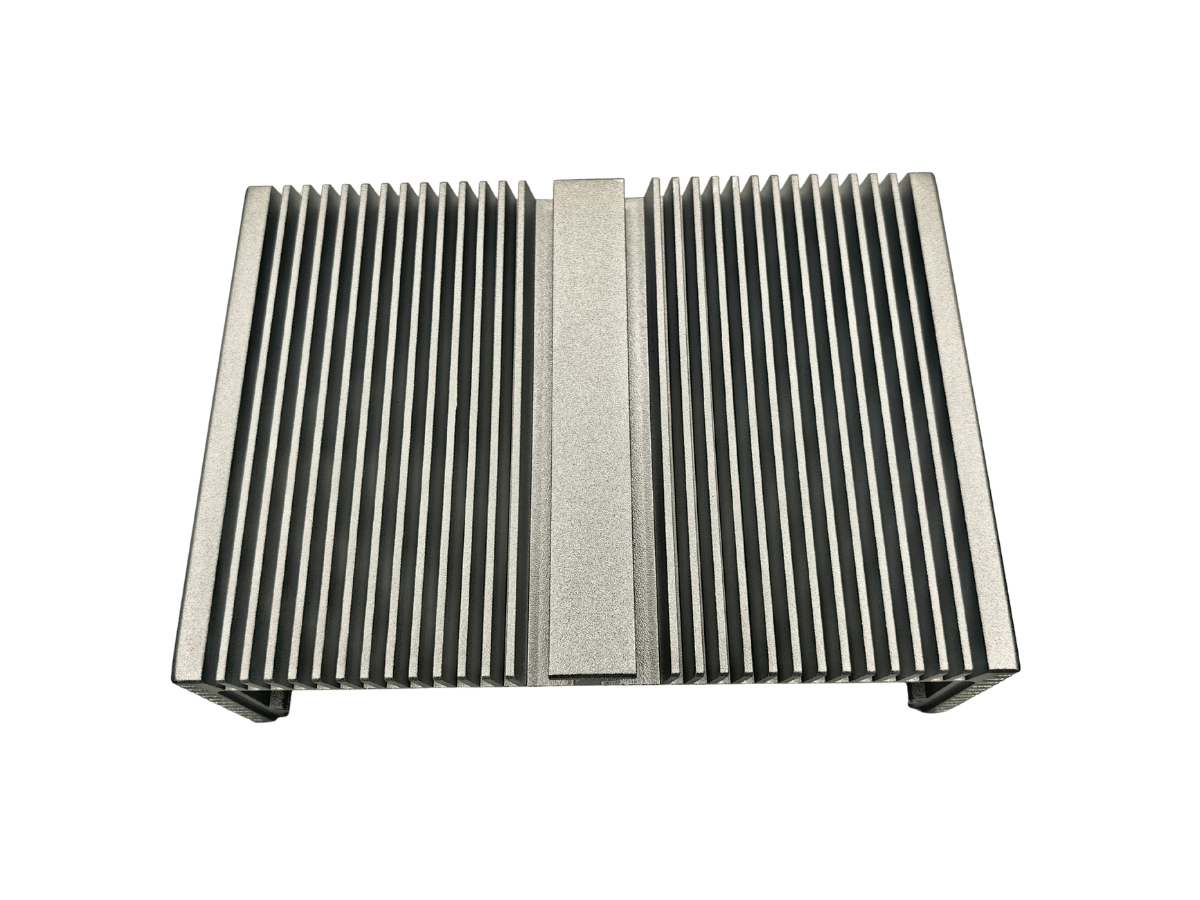

Top view of the SBC02 extruded aluminum enclosure with parallel heatsink-style fins

Front and Rear Panel Customization

Front and rear panels can be CNC-machined to suit a reviewed project layout. The panel configuration image illustrates how cutouts and mechanical details can be planned with the enclosure body, without defining a fixed interface set.

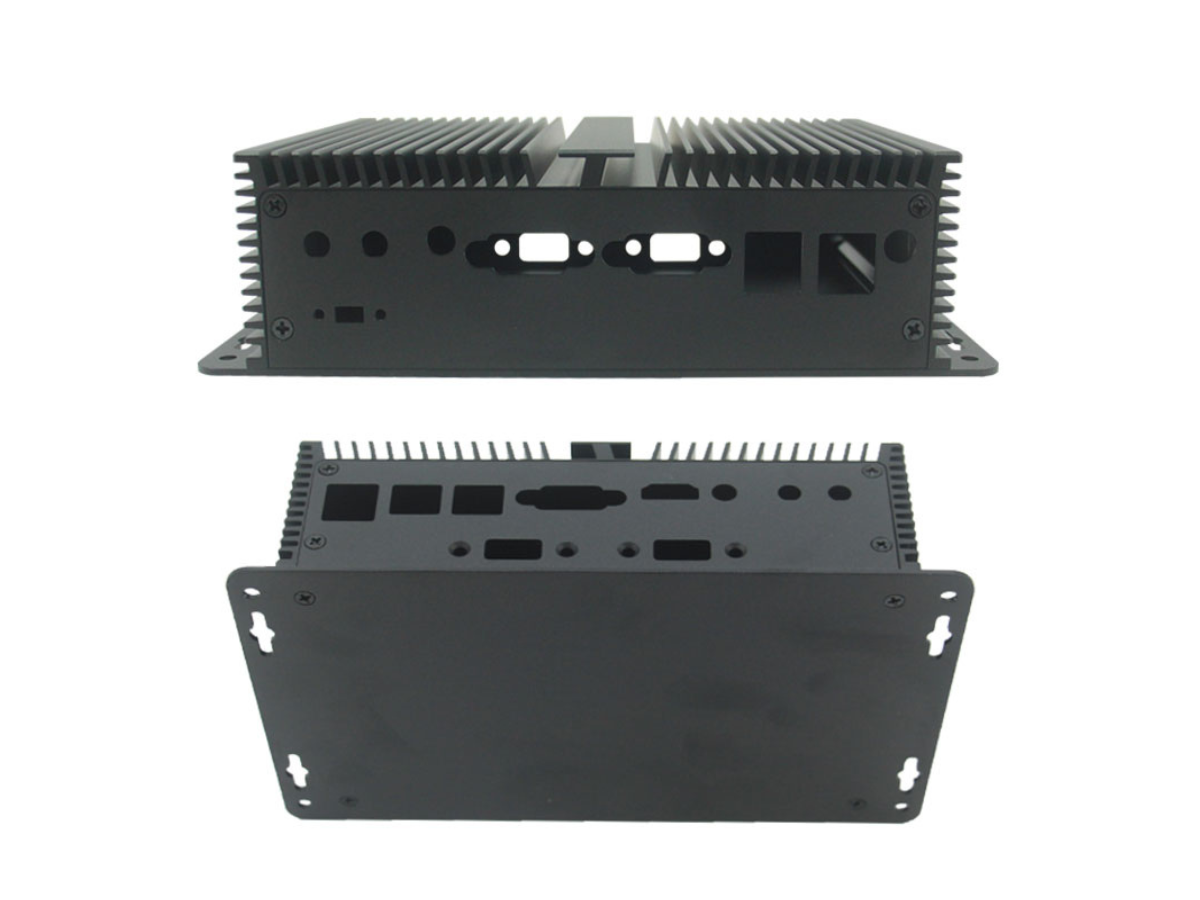

SBC02 custom front and rear aluminum panel configurations with machined openings

Internal Mounting Layout

Internal mounting features support a project-specific mechanical layout. The upper internal view and bottom plate view show the available mounting concept for positioning a board, components or other assembled hardware after engineering review.

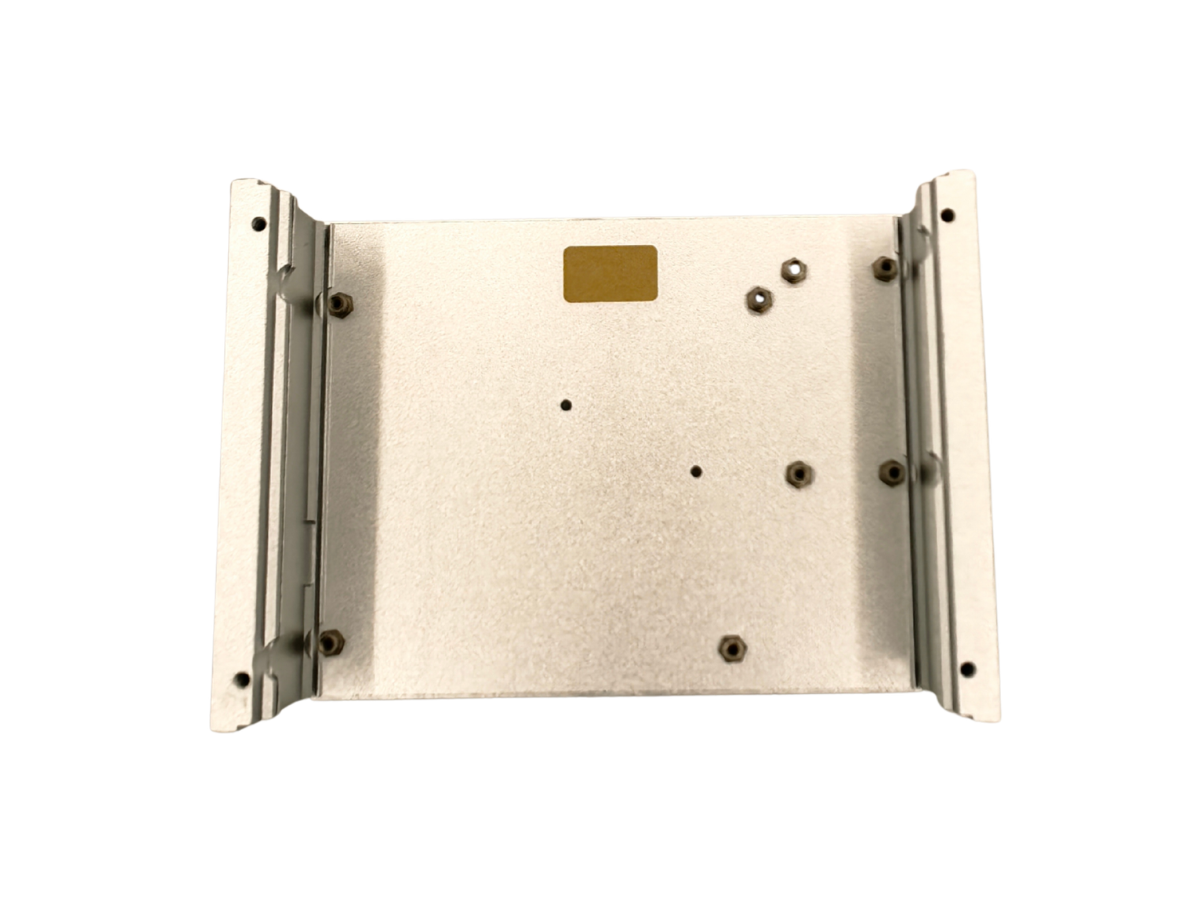

Internal Layout

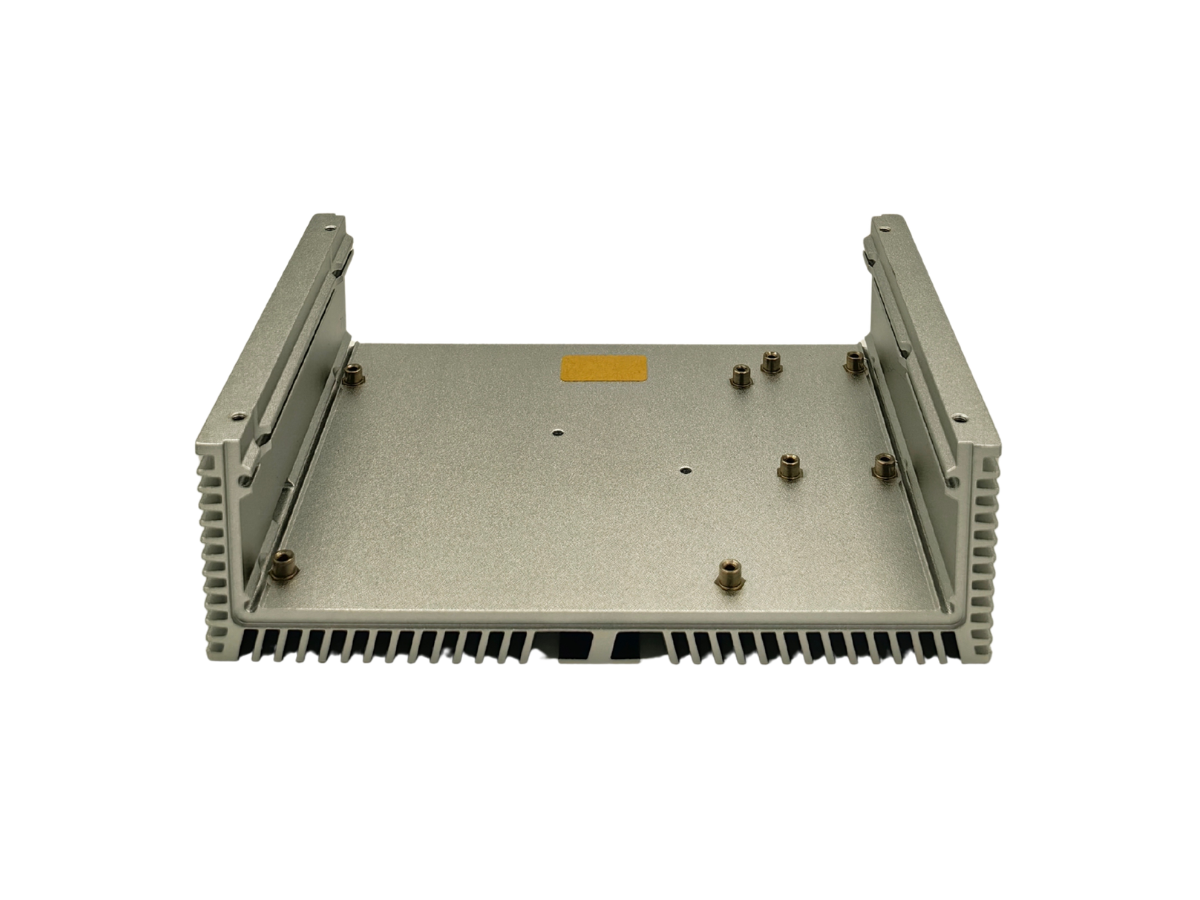

SBC02 bottom plate with internal mounting standoffs for mechanical assembly

Bottom Plate and Standoffs

Open Enclosure and Mechanical Structure

The open-enclosure views show the relationship between the extruded body, removable panel areas and internal space. They provide a useful reference when discussing assembly access, mounting geometry and custom mechanical details for an OEM or ODM program.

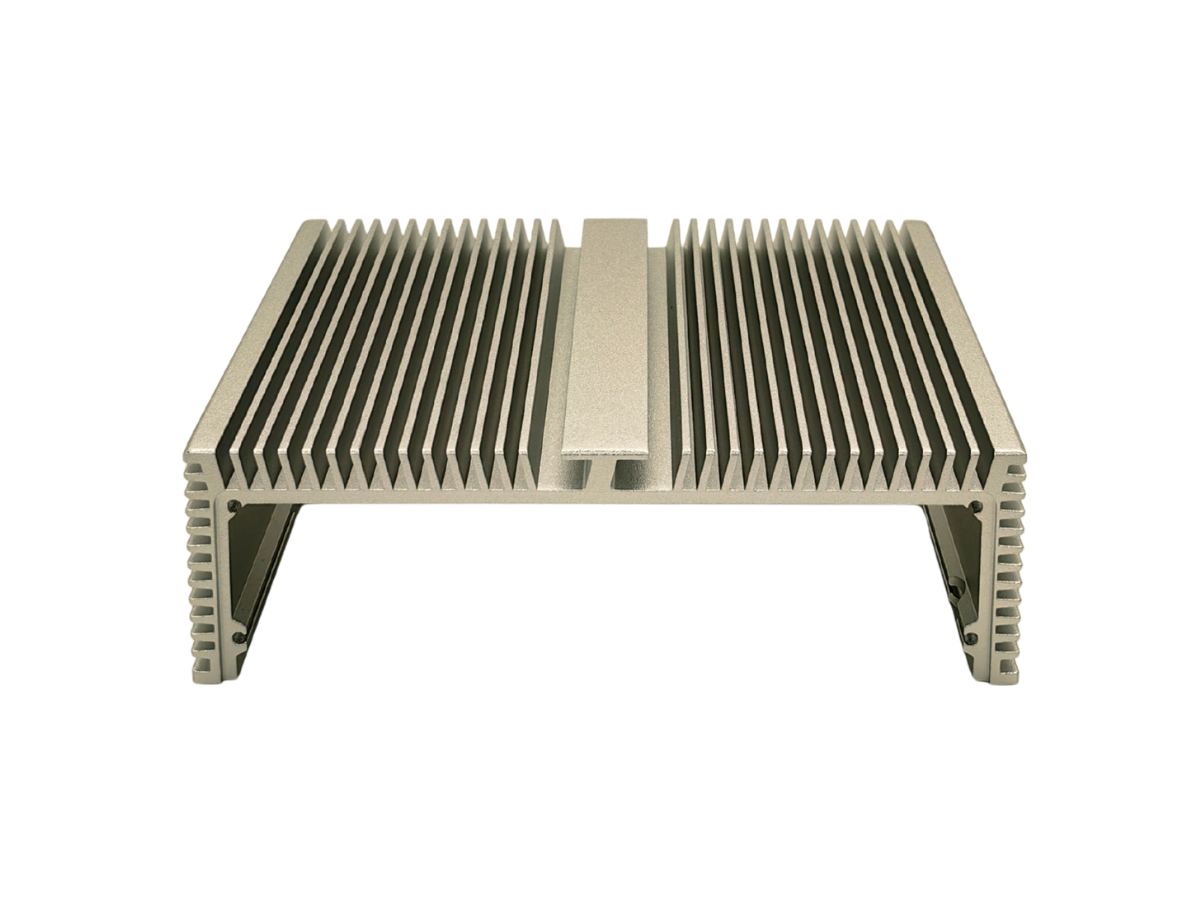

Open Front View

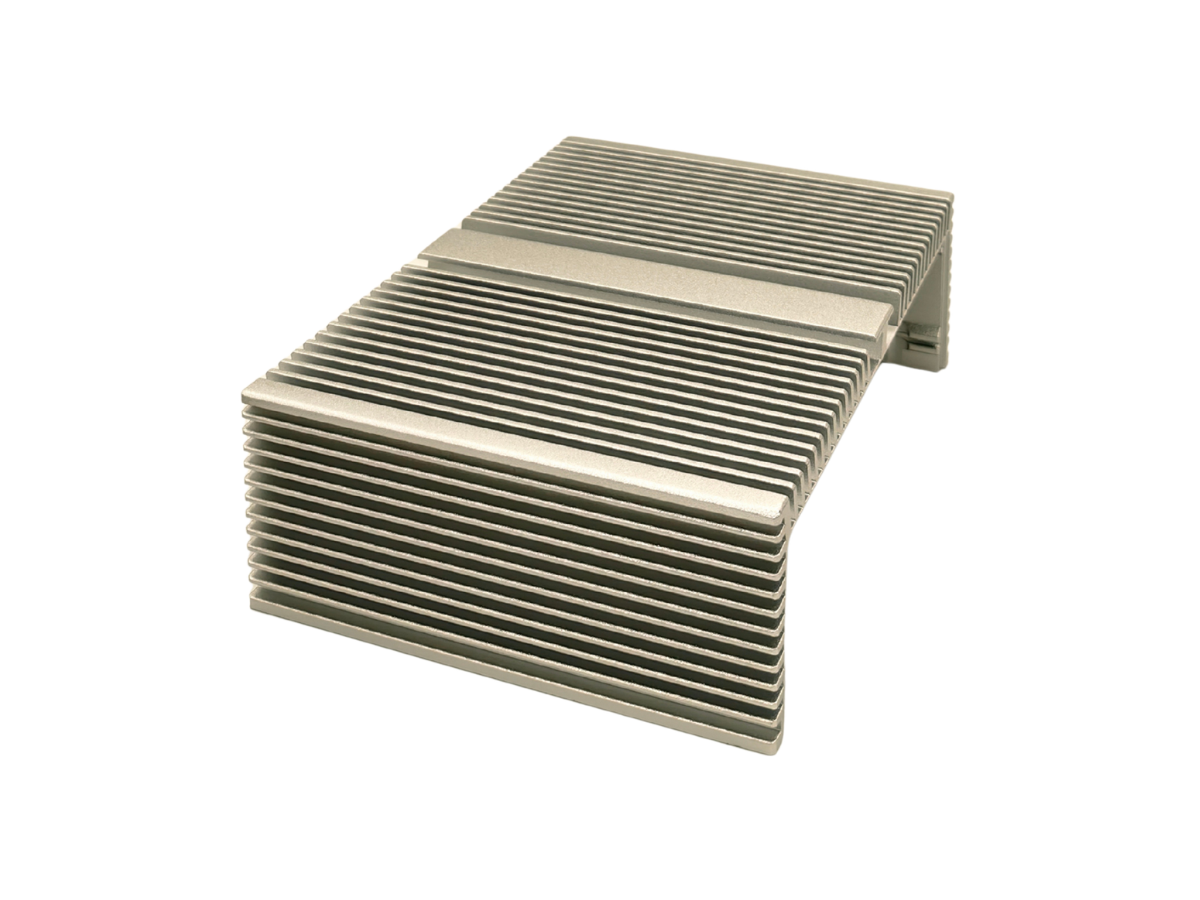

Rear Angle View

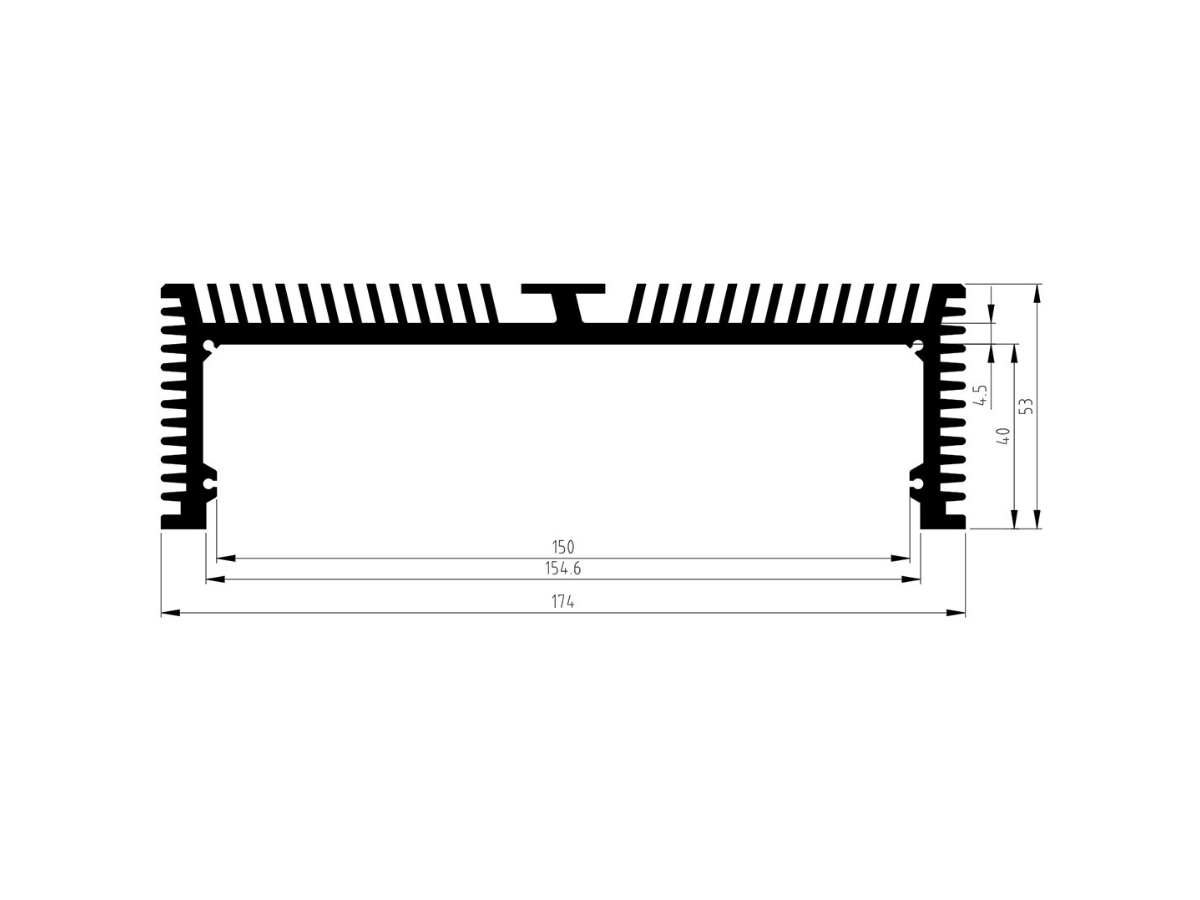

Cross-Section Reference

The available cross-section drawing is a reference for discussing the SBC02 extrusion profile. Confirm dimensional and integration requirements with the engineering team for a specific enclosure project.

OEM / ODM Engineering Support

Domify supports custom enclosure projects from mechanical review through prototype and small-batch engineering support. Explore our custom aluminum enclosure solution and industrial PC OEM / ODM support, or review relevant engineering portfolio work.
