DM08 Custom Aluminum Enclosure

DM08 is a customizable extruded aluminum heatsink enclosure platform for embedded computers, industrial electronics and OEM / ODM hardware projects. Its mechanical structure provides a practical basis for project-specific panel machining and internal integration review.

DM08 custom extruded aluminum enclosure shown from an angle

Key Features

Extruded aluminum enclosure body with a heatsink-style finned exterior
CNC-machined front and rear panel openings for reviewed project layouts
Custom electronics enclosure platform for embedded and industrial hardware integration
Internal mounting arrangement for project-specific PCB and component review
Mechanical enclosure and panel configuration options for OEM / ODM programs
Prototype and small-batch engineering support

The visible openings and mounting details reflect the pictured configuration. Domify can review panel layouts and mechanical integration against your project requirements.

Request an Engineering Review Request a Quote

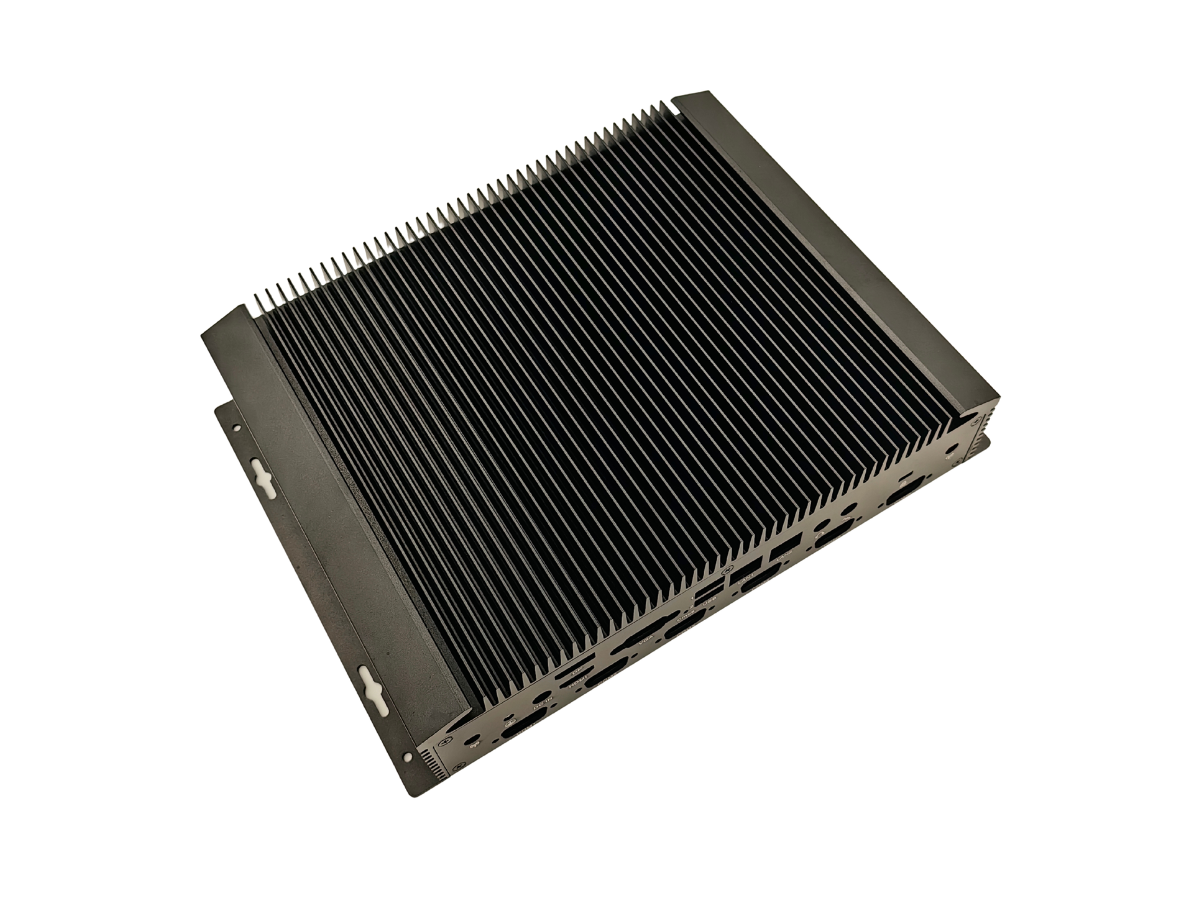

Extruded Aluminum Heatsink Structure

The DM08 enclosure uses a finned extrusion structure that forms both the mechanical enclosure body and a heatsink-style exterior. The profile can serve as a starting point for project-specific machining, panels and mechanical integration discussions.

DM08 extruded aluminum enclosure with a finned heatsink-style top surface

Custom I/O Panel Examples

These images show example customized I/O panel configurations. Panel openings can be reviewed according to the customer's project I/O layout and are not a fixed standard interface set.

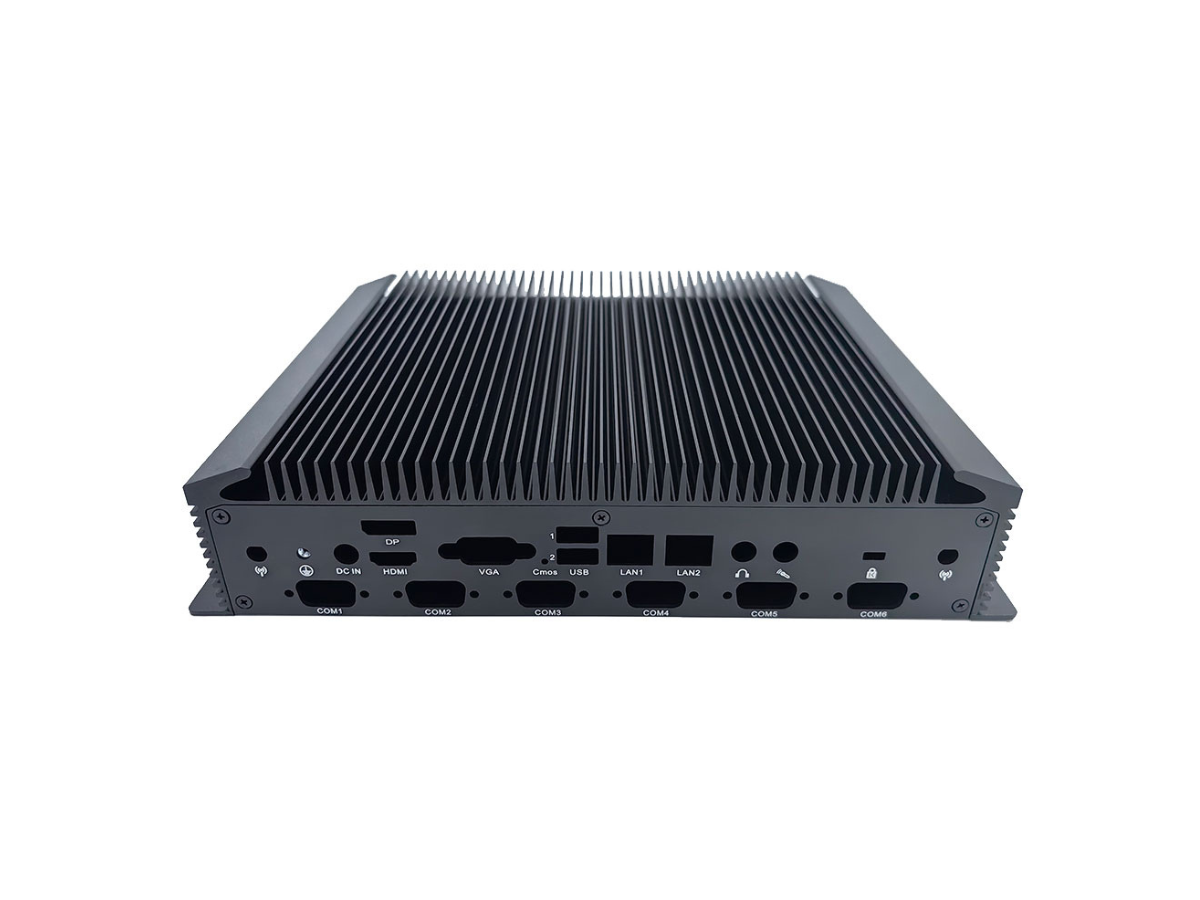

DM08 example customized aluminum I/O panel with machined openings

Example Panel Layout

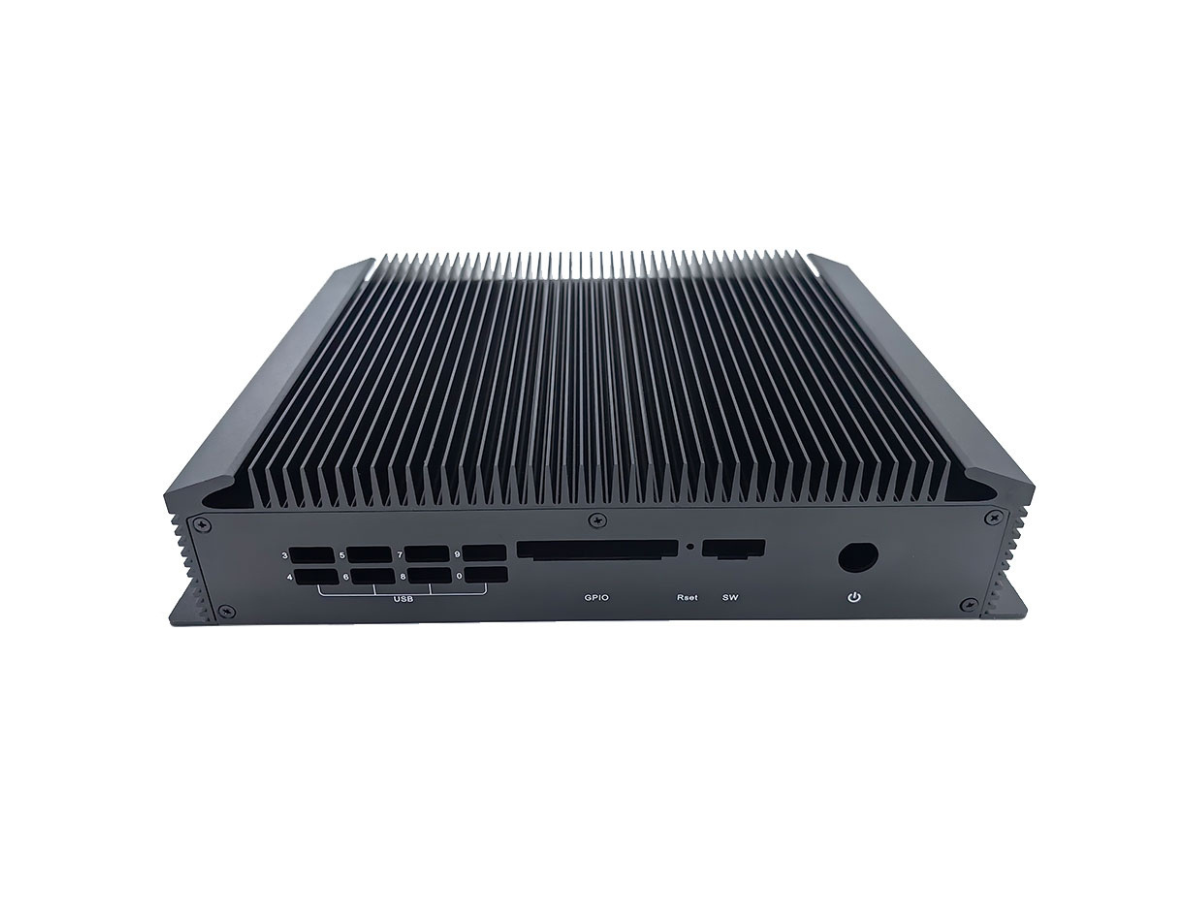

DM08 example customized control-panel configuration with machined openings

Example Control Panel

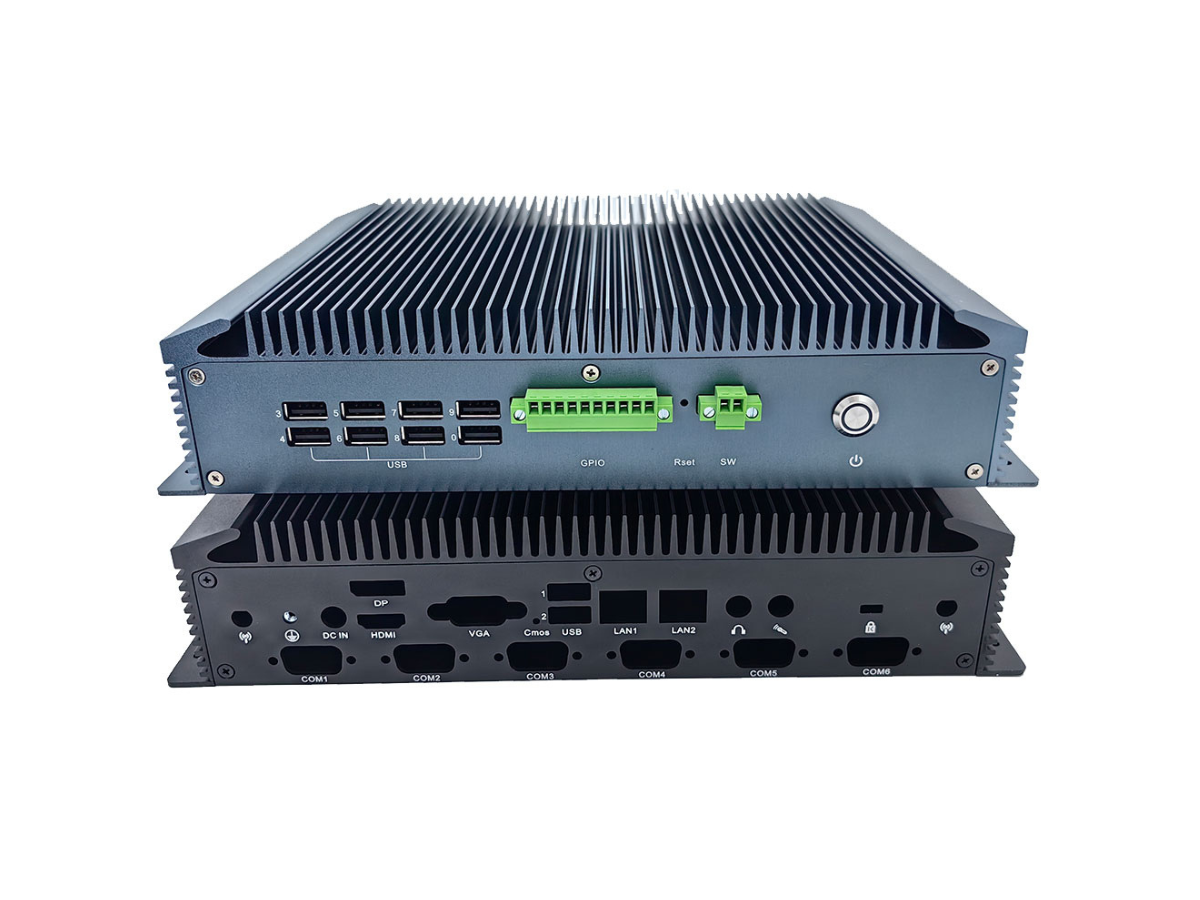

DM08 example dual-panel enclosure configuration with machined openings

Example Dual-Panel Layout

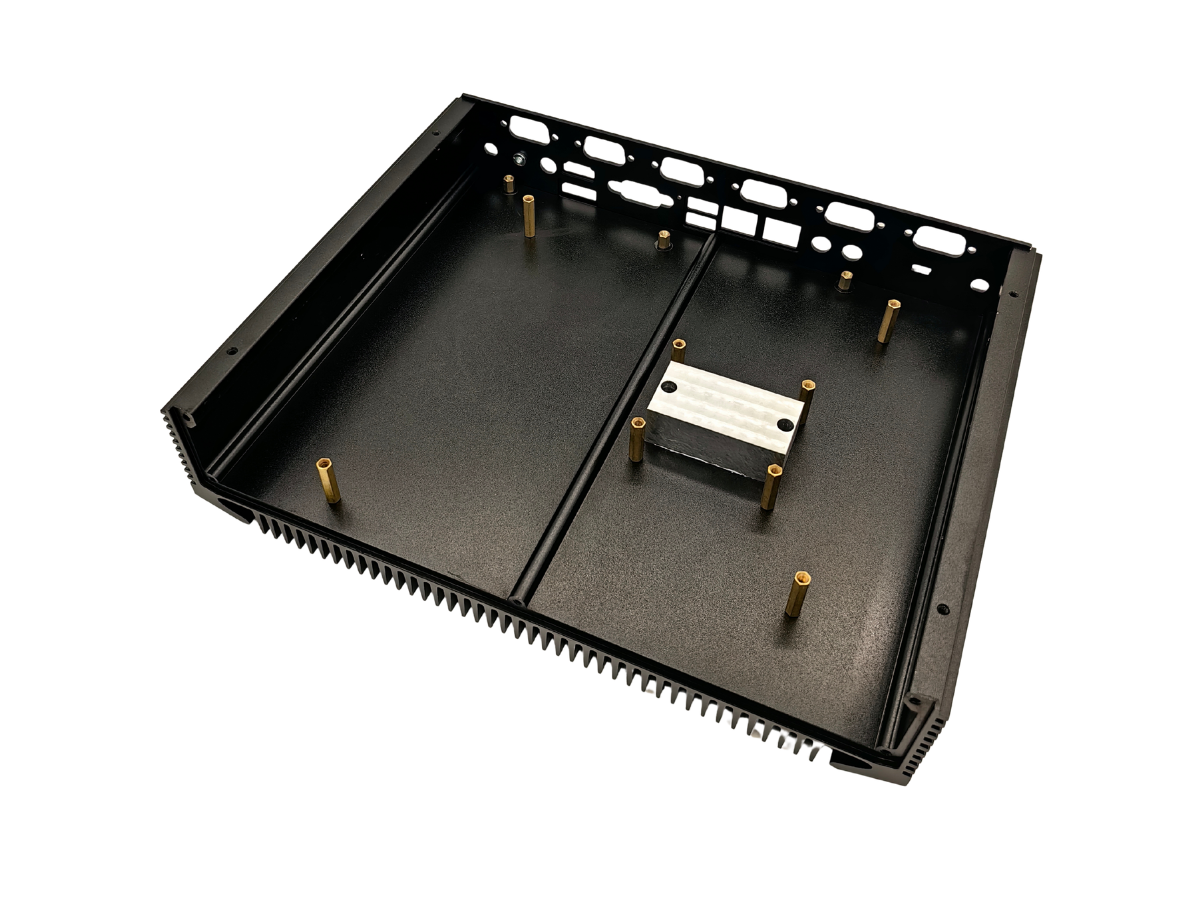

Internal Mounting Structure

The internal views show the DM08 mounting arrangement and mechanical structure. PCB and component placement can be reviewed for a specific project, with mounting features adjusted according to the confirmed requirements.

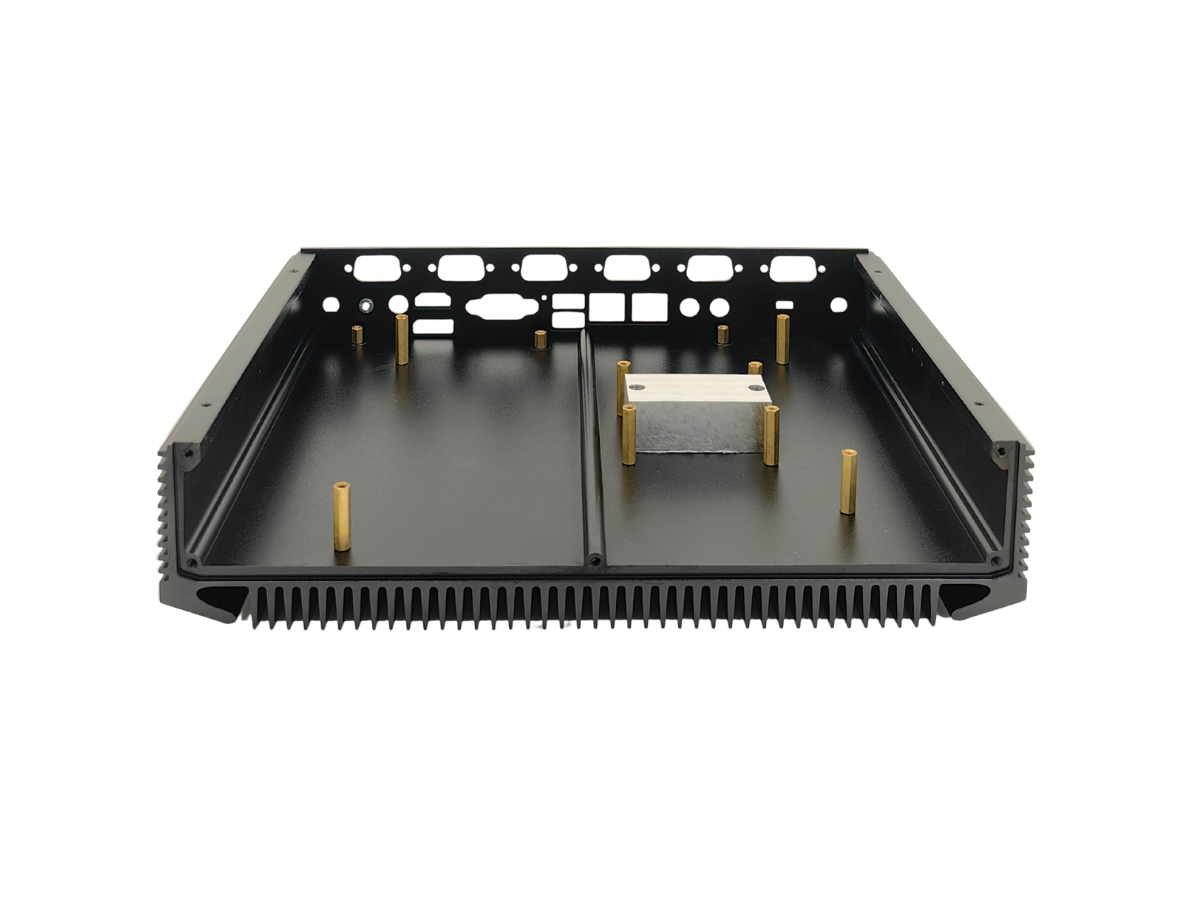

Top view inside the DM08 enclosure showing the internal mounting layout

Internal Layout

Mounting Structure

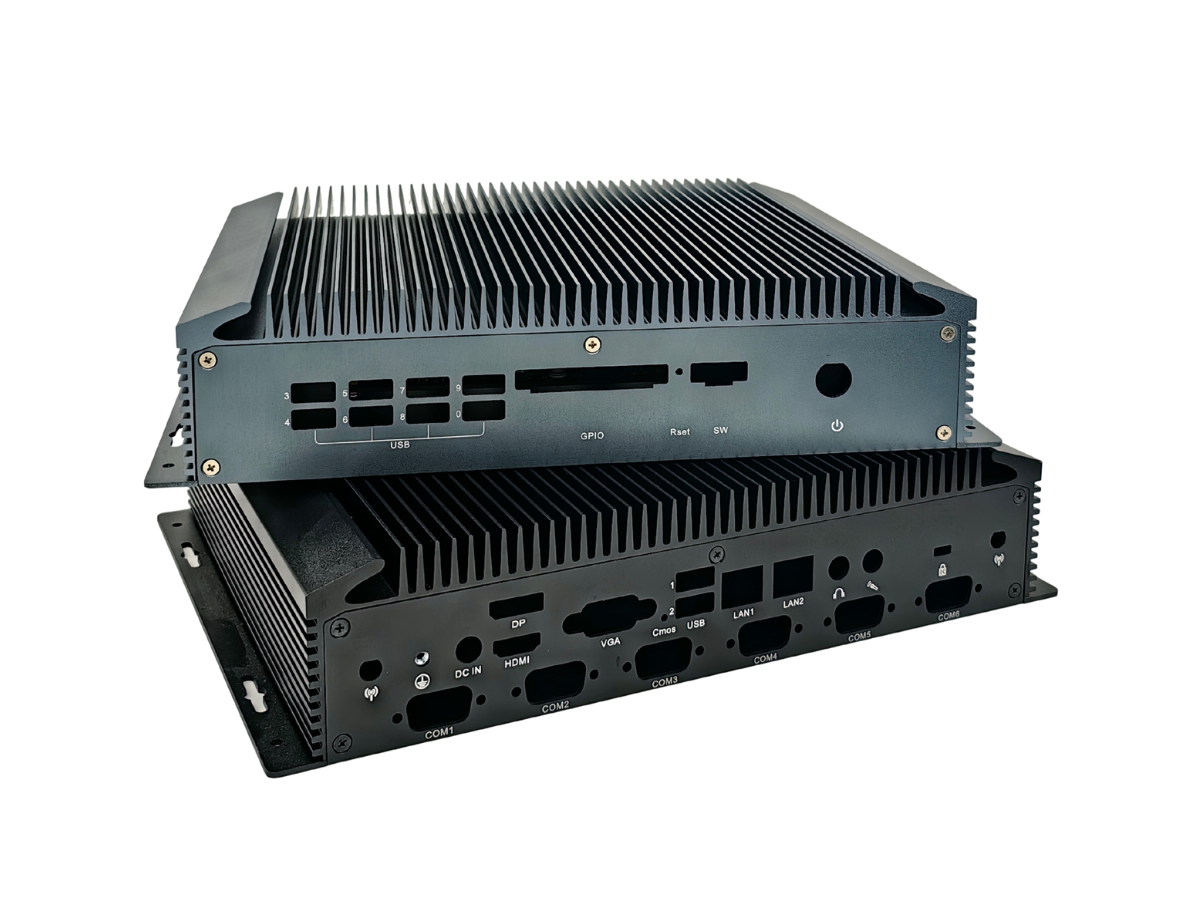

Enclosure Configuration

The DM08 enclosure and panel combination can be reviewed around the project's mechanical and access requirements. Configuration options are considered as part of the engineering discussion rather than presented as a fixed standard.

DM08 aluminum enclosure and panel configuration shown from an angle

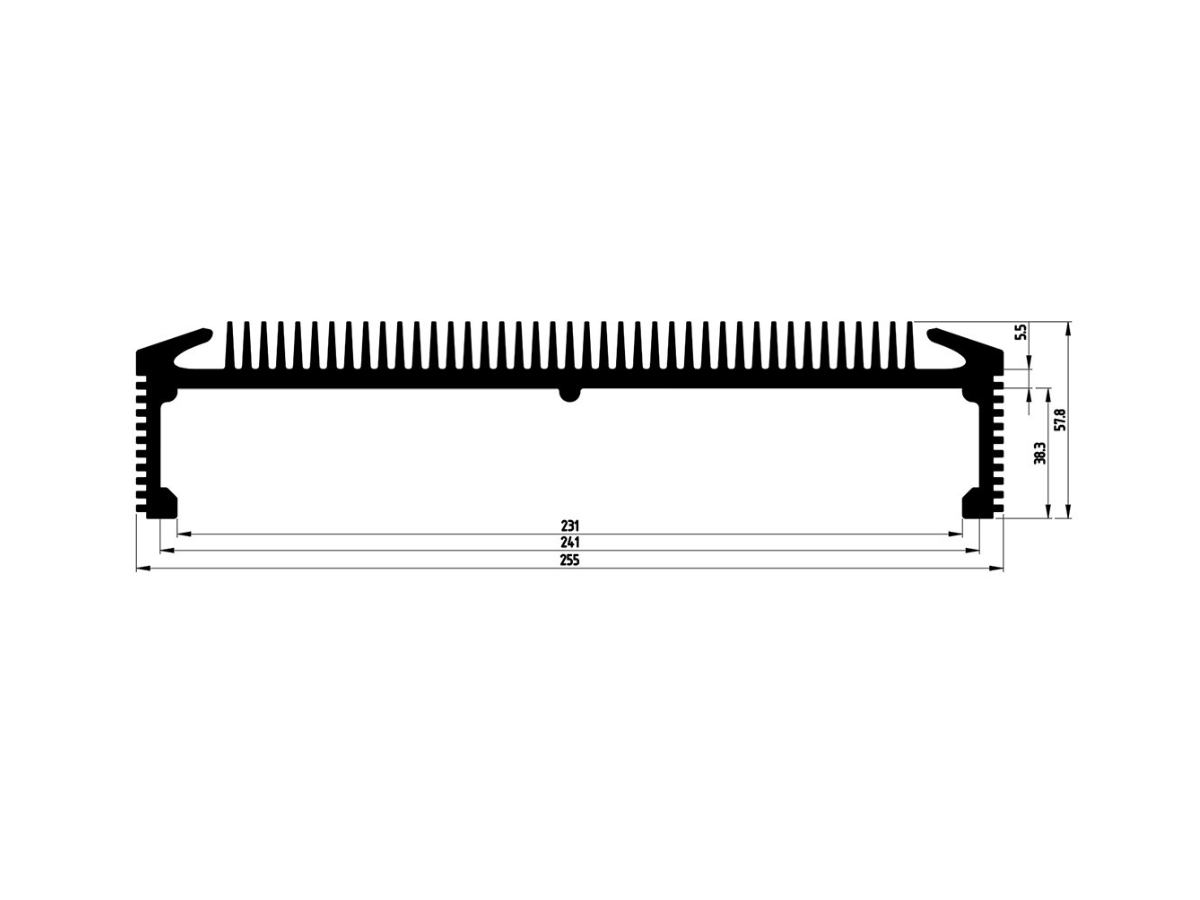

Cross-Section Reference

This drawing is an engineering reference for discussing the DM08 extrusion profile. Confirm dimensional and integration requirements with the engineering team for a specific custom aluminum enclosure project.

DM08 aluminum extrusion cross-section engineering reference drawing

OEM / ODM Engineering Support

Domify supports enclosure structure review, panel machining review, internal mounting review and CNC machining support for prototype and small-batch projects. Explore our custom aluminum enclosure solution, industrial PC OEM / ODM support, product range and relevant engineering portfolio work.
