SBC04 Custom Aluminum Enclosure

SBC04 is a customizable extruded aluminum heatsink enclosure platform for embedded electronics, industrial controllers and OEM / ODM hardware projects. Its mechanical structure provides a practical basis for project-specific panel machining and enclosure integration review.

SBC04 custom extruded aluminum enclosure shown from an angle

Key Features

Extruded aluminum enclosure body with a heatsink-style finned exterior
CNC-machined front and rear panel openings for reviewed project layouts
Flexible front and rear panel configurations for custom electronics enclosure projects
Project-specific mechanical integration and internal mounting review
Enclosure and panel configuration flexibility for OEM / ODM programs
Prototype and small-batch engineering support

The visible panel openings and connectors are example customized project configurations, not a fixed standard interface set. Panel openings can be reviewed according to the customer's hardware and I/O layout.

Request an Engineering Review Request a Quote

Extruded Aluminum Enclosure Structure

The SBC04 enclosure uses a finned extrusion structure that forms a compact mechanical enclosure platform with a heatsink-style exterior. The profile can be reviewed for project-specific machining, internal integration and panel requirements.

Top view of the SBC04 extruded aluminum enclosure with heatsink-style fins

Custom Front and Rear Panel Configurations

These images show example customized panel configurations. Custom connector openings, switch, indicator and interface cutouts can be considered through project-specific CNC machining; different hardware projects can require different panel layouts.

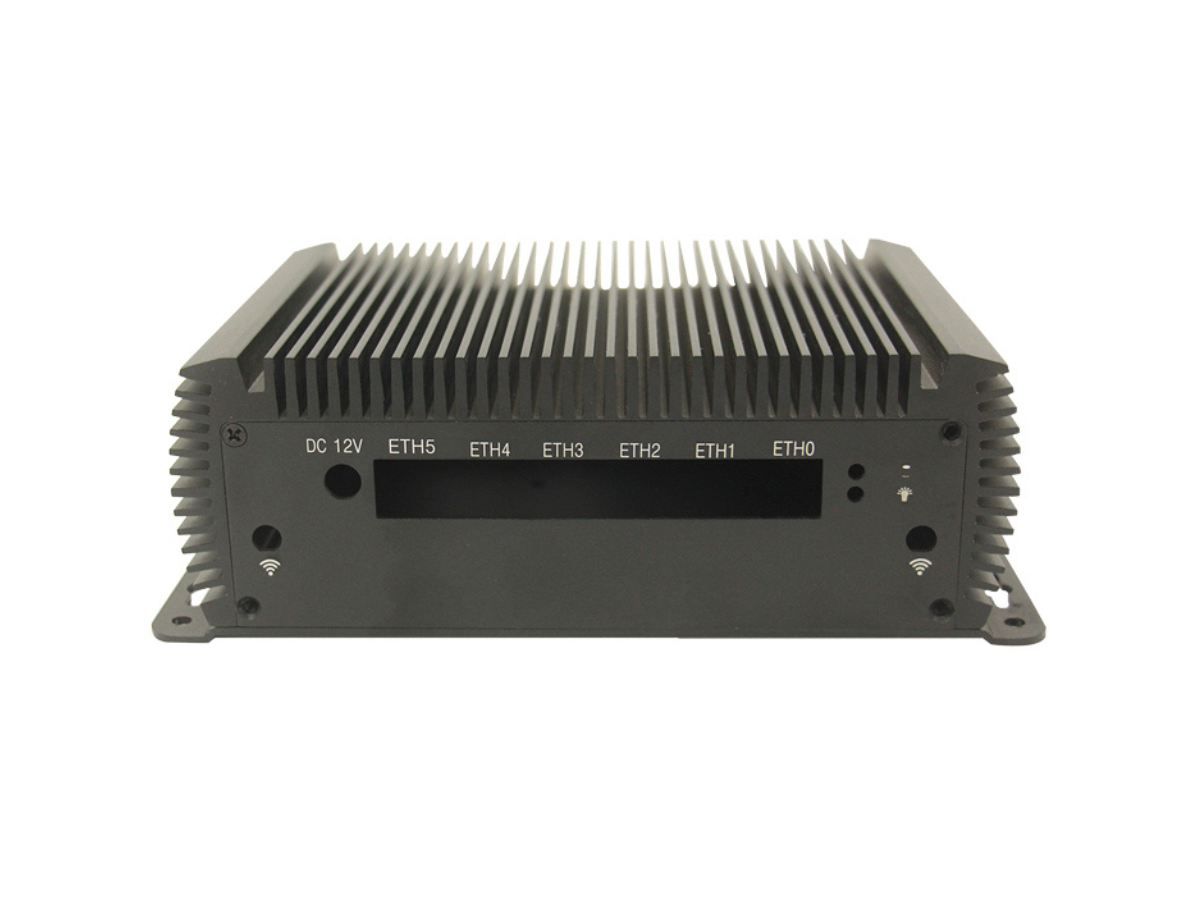

Example customized SBC04 panel with project-specific machined openings

Example Customized Panel

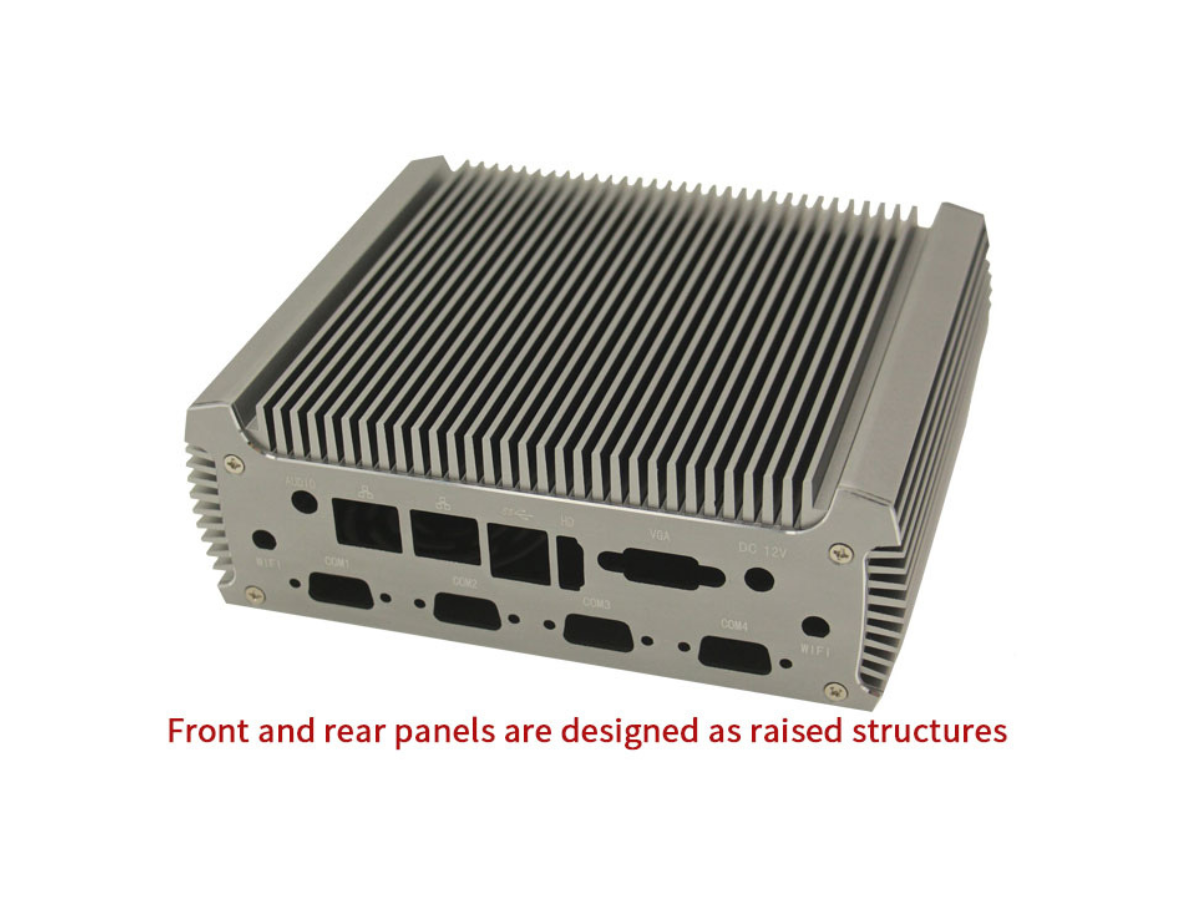

SBC04 raised panel configuration example with customized machining

Raised Panel Example

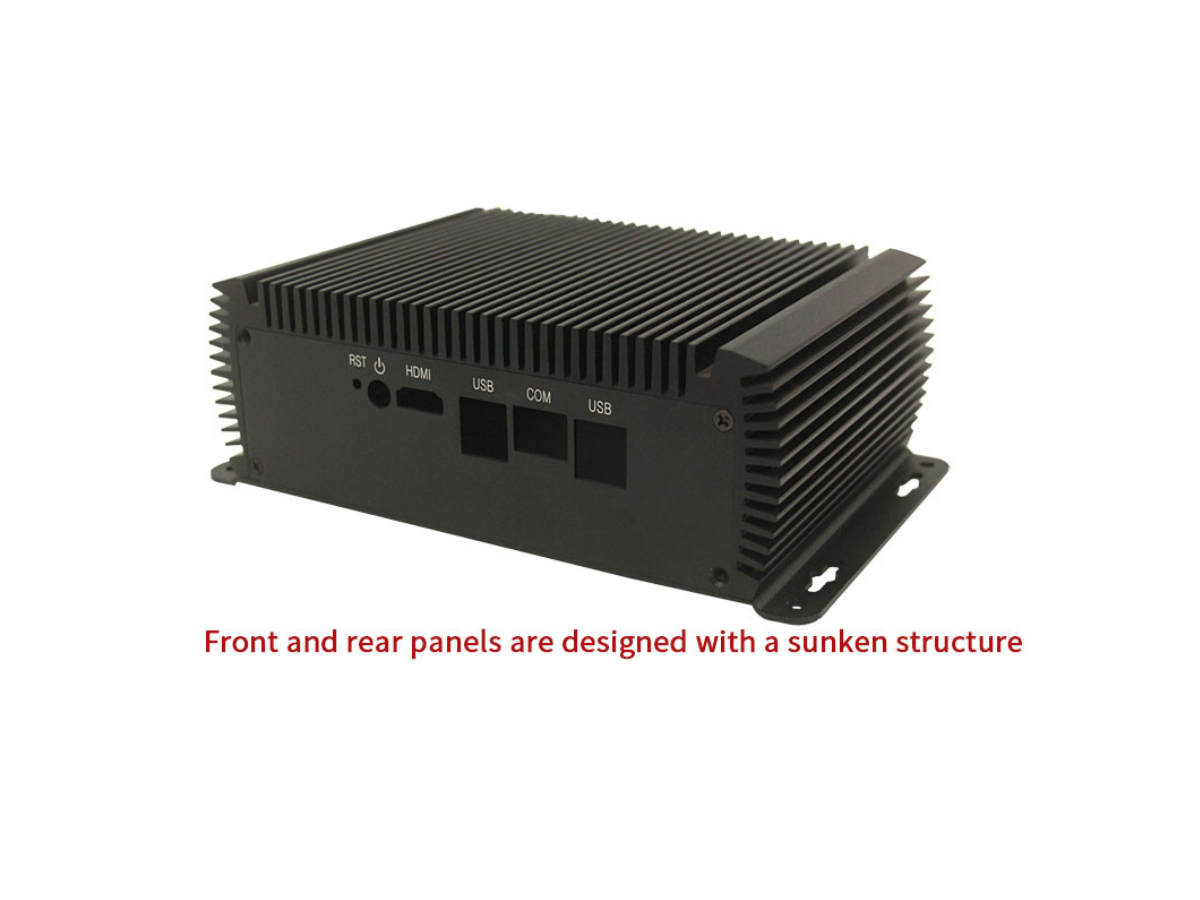

SBC04 sunken panel configuration example with customized machining

Sunken Panel Example

Enclosure Configuration Flexibility

The multiple enclosure views illustrate different enclosure and panel combinations. Each configuration is reviewed around the project's mechanical, access and hardware needs, supporting flexibility for OEM / ODM applications without assuming universal compatibility.

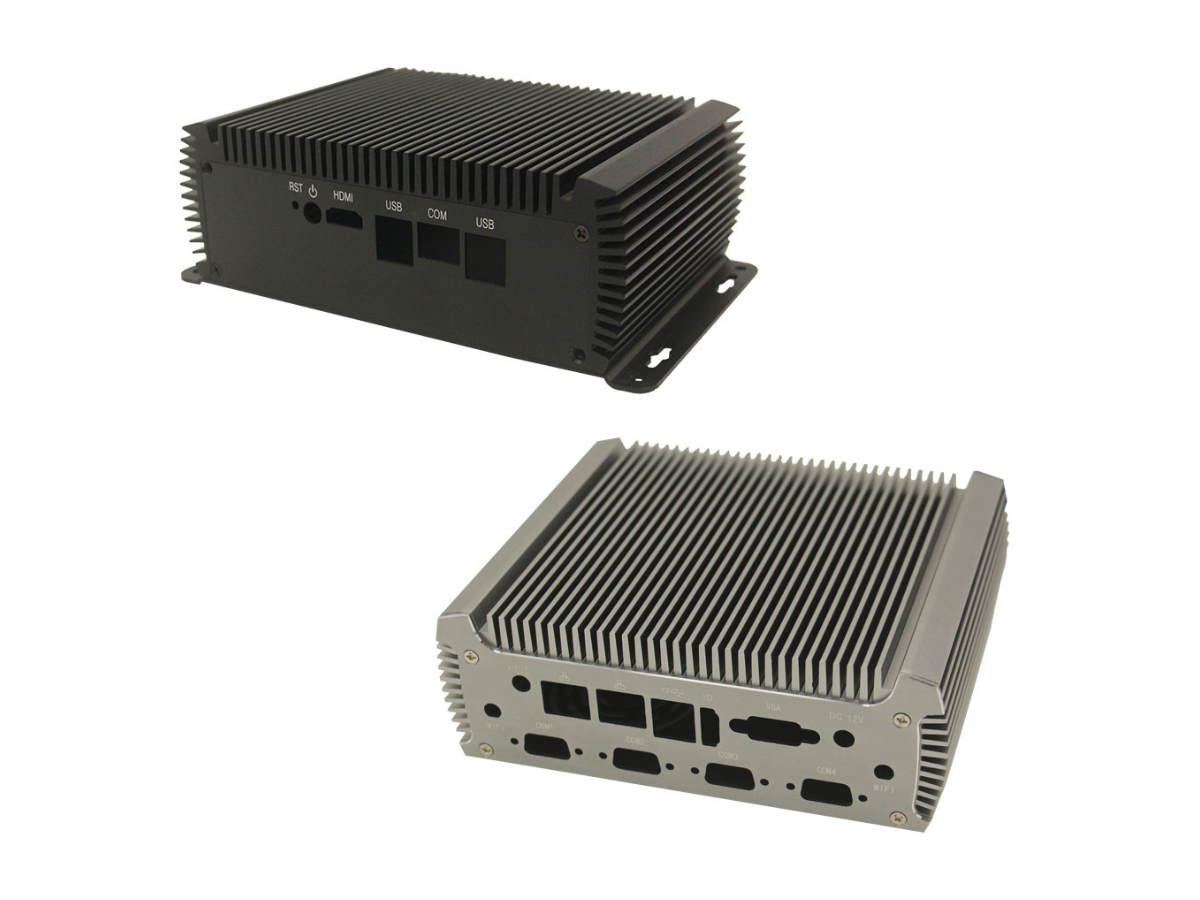

SBC04 aluminum enclosure shown in multiple project configuration examples

Cross-Section Reference

This drawing is an engineering reference for discussing the SBC04 extrusion profile. Confirm dimensional and integration requirements with the engineering team for a specific custom aluminum enclosure project.

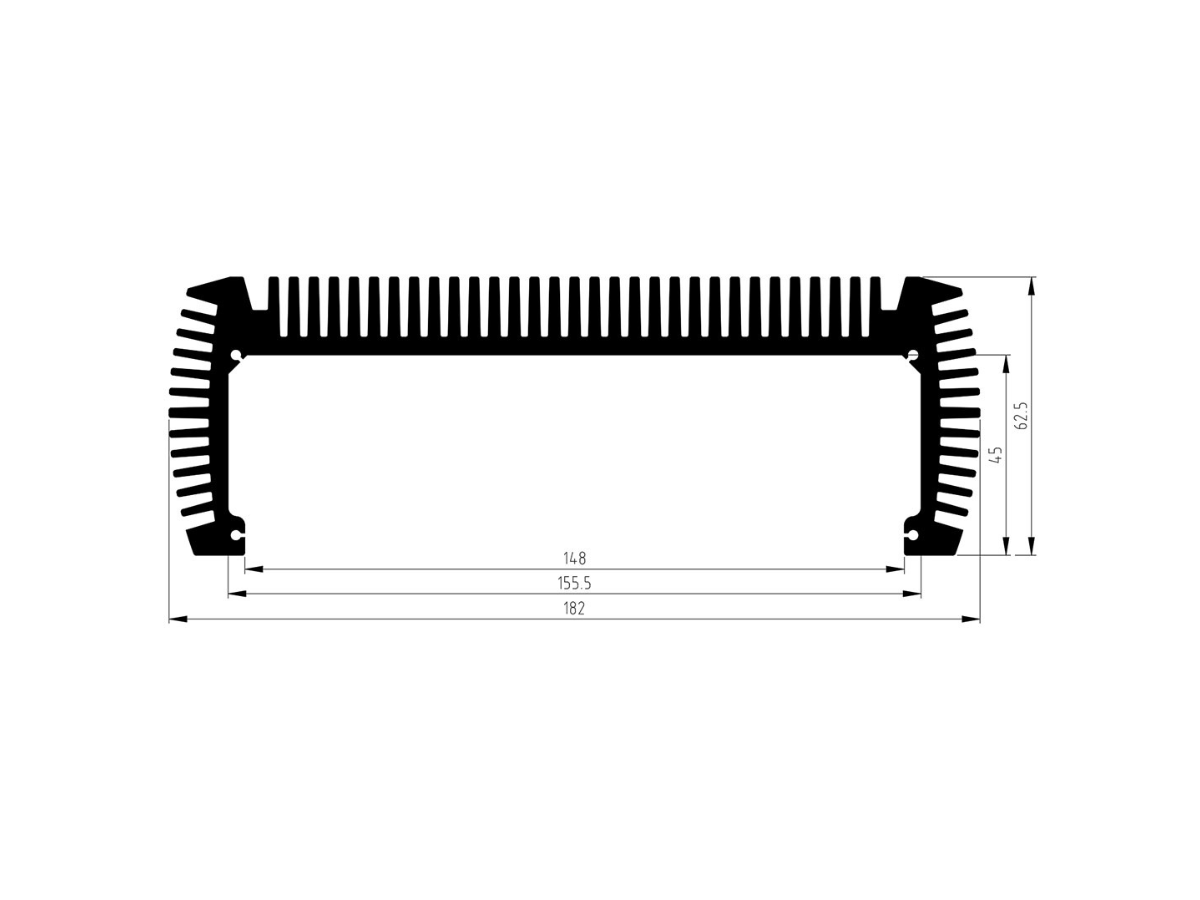

SBC04 aluminum extrusion cross-section engineering reference drawing

OEM / ODM Engineering Support

Domify supports enclosure structure review, panel machining review, I/O opening review, internal mounting review and CNC machining support for prototype and small-batch projects. Explore our custom aluminum enclosure solution, industrial PC OEM / ODM support, product range and relevant engineering portfolio work.
