SBC13 Custom Aluminum Enclosure

SBC13 is a customizable extruded aluminum heatsink enclosure platform for embedded electronics, industrial controllers, compact computing hardware and OEM / ODM projects. Its compact mechanical structure provides a basis for project-specific panel machining and enclosure integration review.

SBC13 custom extruded aluminum heatsink enclosure shown from an angle

Key Features

  • Extruded aluminum enclosure body with a heatsink-style finned exterior
  • Compact enclosure structure for custom electronics integration
  • CNC-machined panel openings for reviewed project layouts
  • Flexible front and rear panel layout concepts
  • Configurable enclosure components for project review
  • Finish and color concepts reviewed for OEM projects
  • OEM / ODM engineering, prototype and small-batch support

Visible panel openings and connectors are project-specific customization examples, not fixed standard SBC13 interfaces.

Request an Engineering ReviewRequest a Quote

Extruded Aluminum Heatsink Structure

The finned extrusion forms the enclosure body and heatsink-style exterior. It can be reviewed around customer electronics, including project-specific machining and panel requirements.

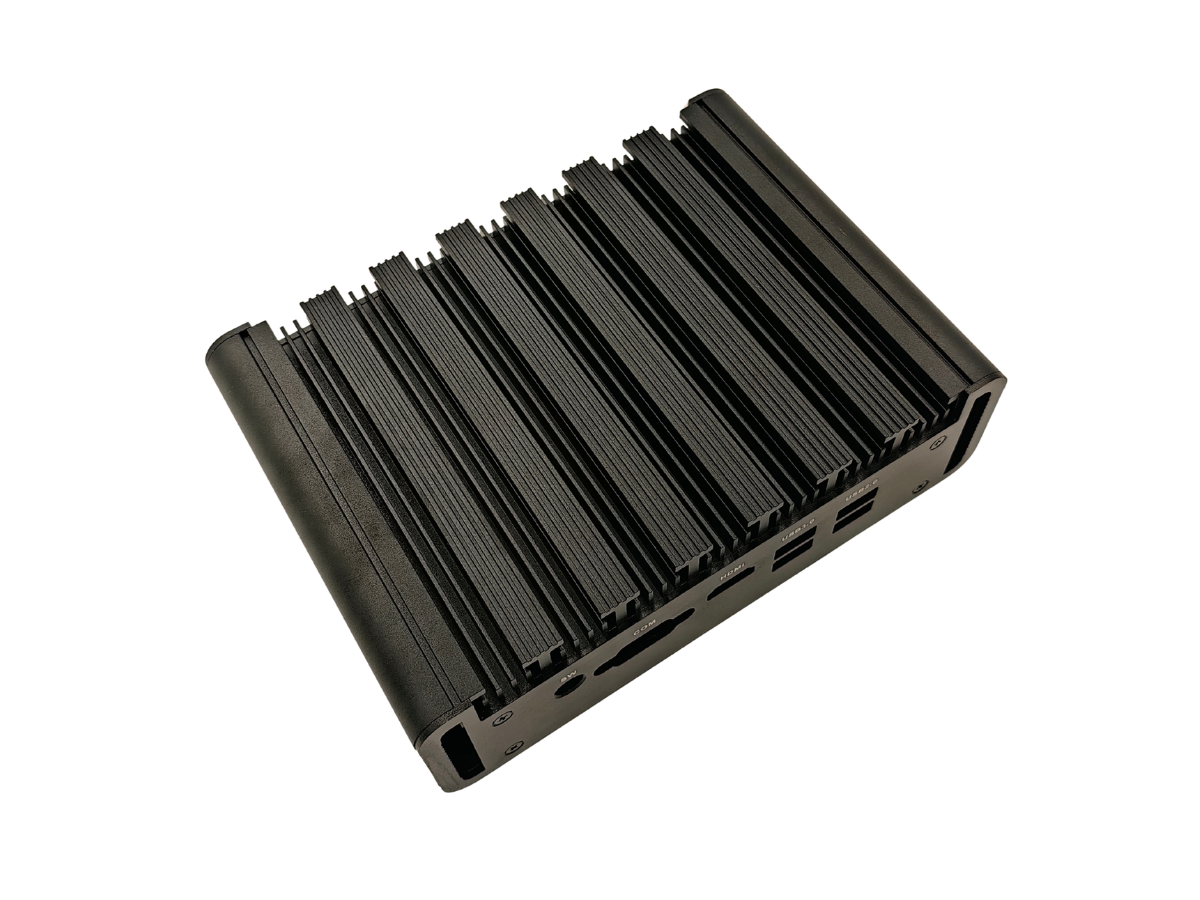

Top view of SBC13 extruded aluminum enclosure heatsink fins

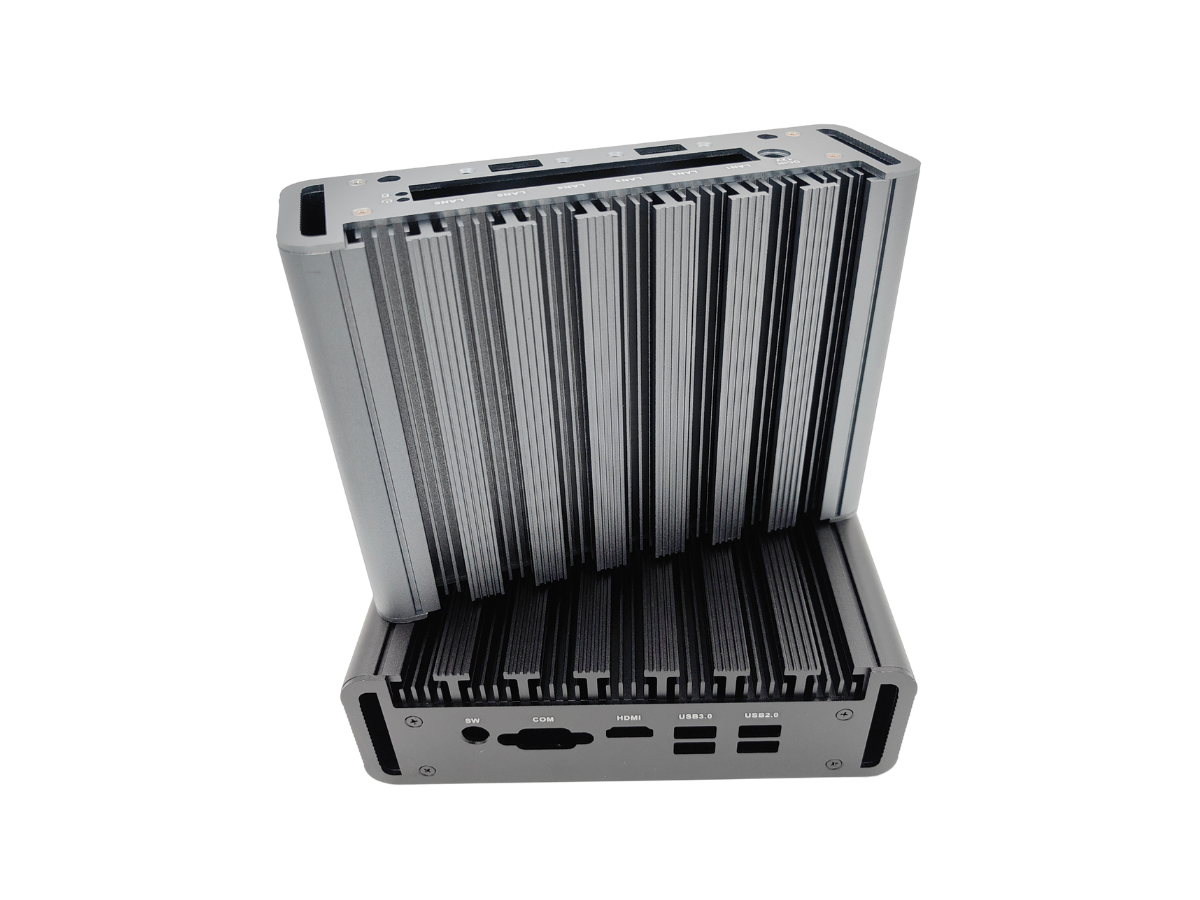

Side view of SBC13 finned aluminum enclosure structure

Custom Front and Rear Panel Configurations

These are customized panel examples only. Connector openings, switch and indicator openings, and other CNC panel machining can be reviewed for each hardware project; different projects can require different layouts.

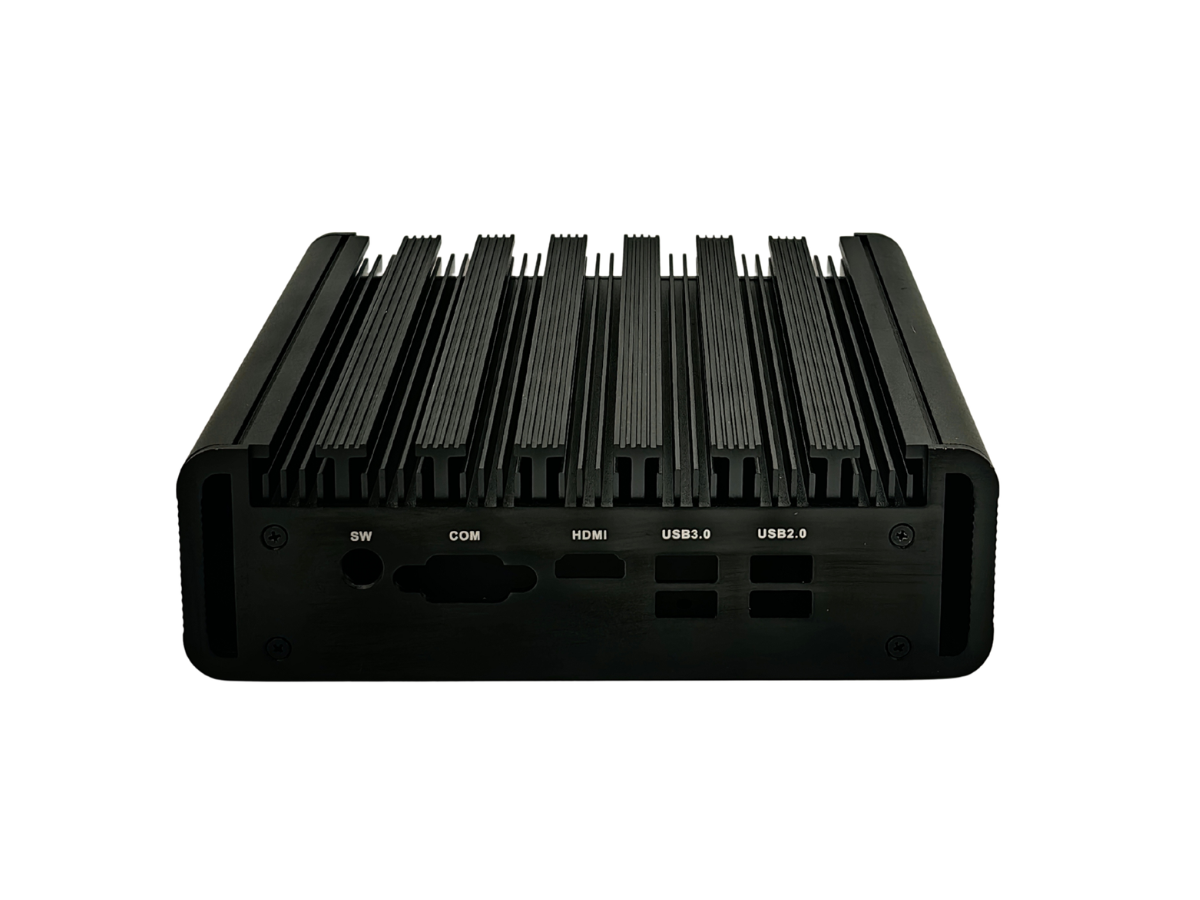

SBC13 front panel customization example with machined openings

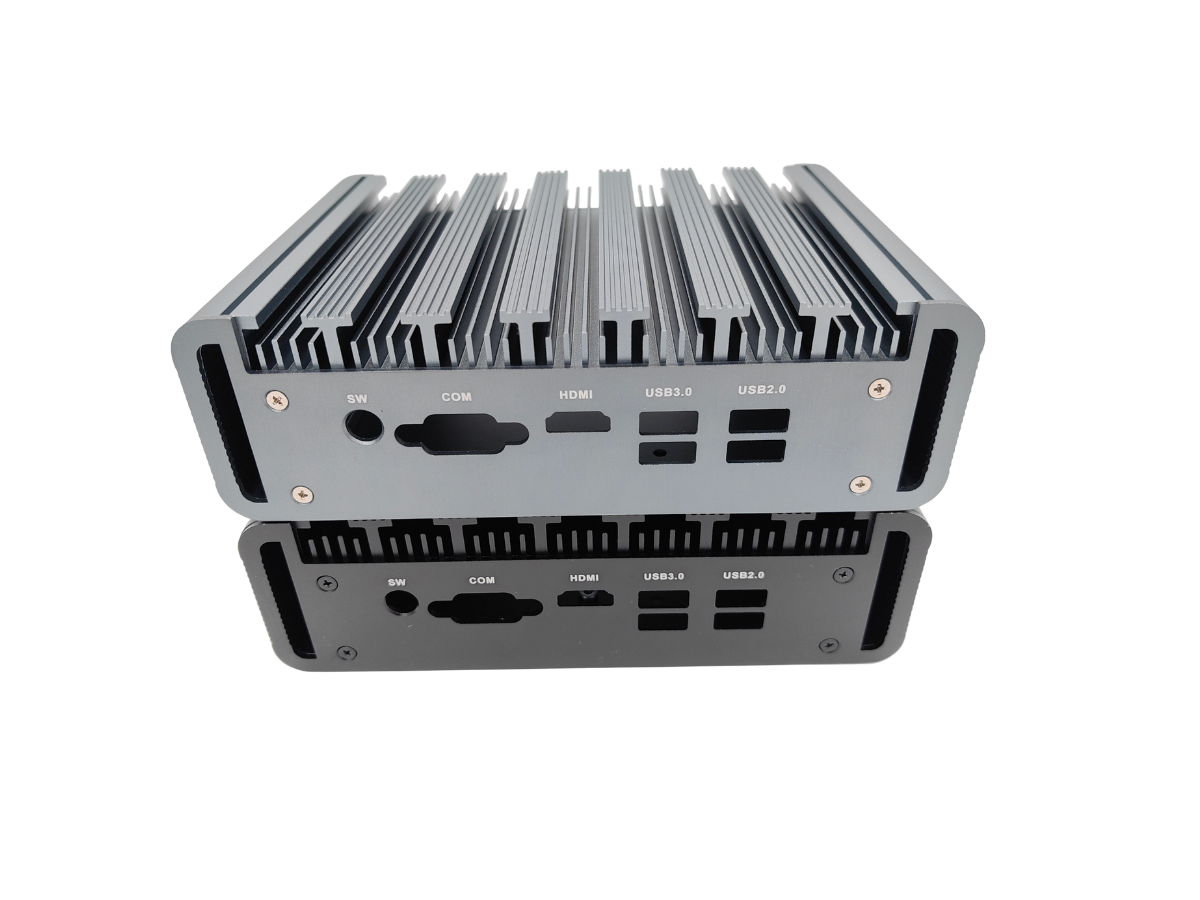

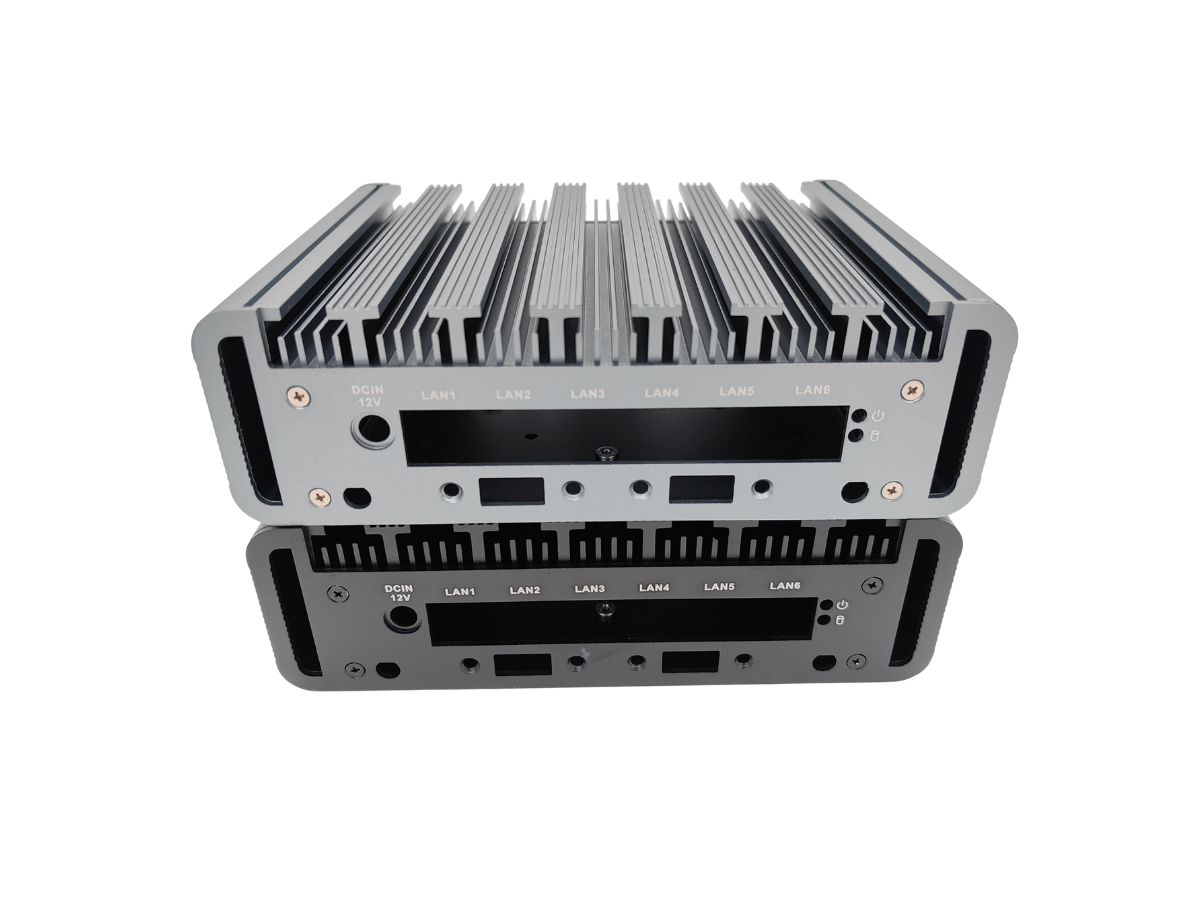

Comparison of project-specific SBC13 front panel configurations

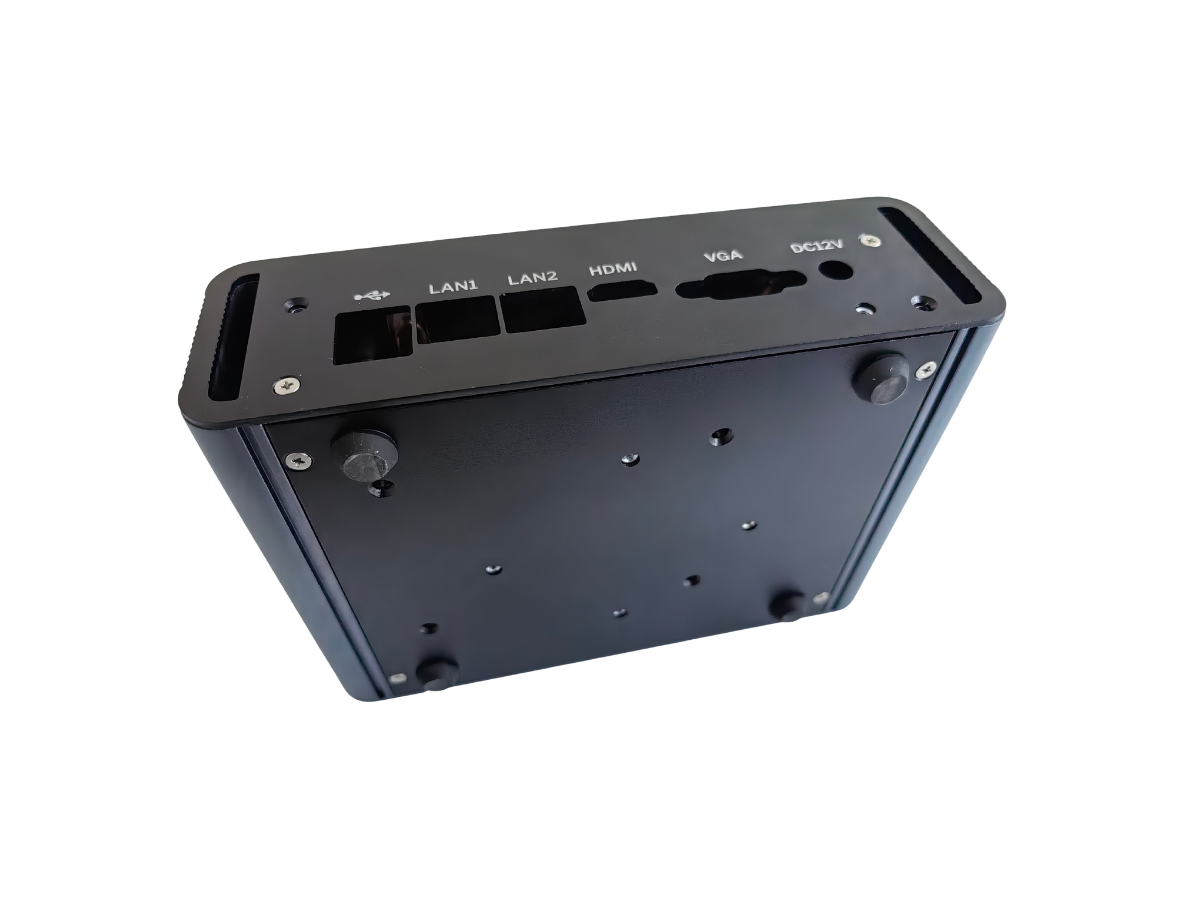

SBC13 rear panel customization example

Enclosure Components and Mechanical Structure

The enclosure body, panel components and bottom plate illustrate a modular mechanical assembly for project-specific internal integration. These views do not imply part interchangeability.

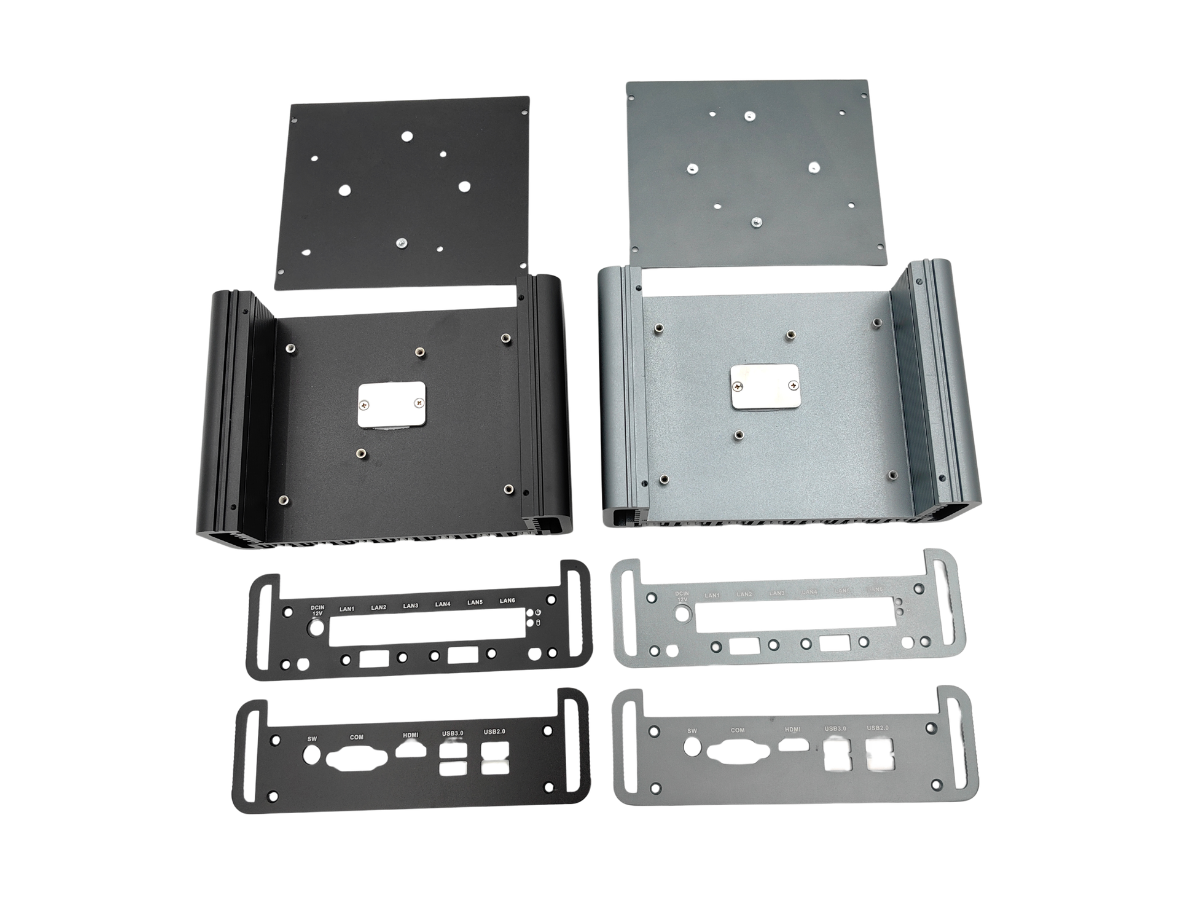

SBC13 aluminum enclosure components shown in an exploded-style view

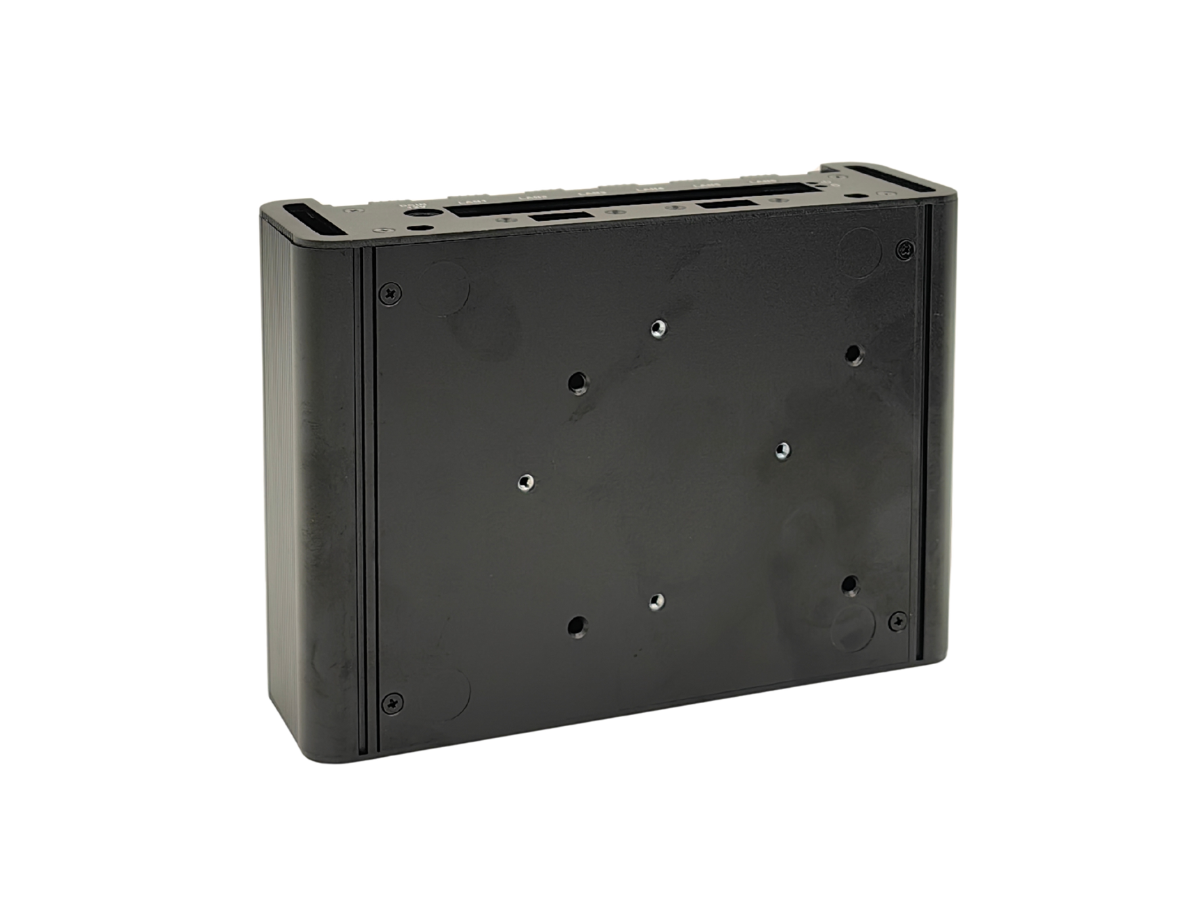

SBC13 enclosure bottom plate mechanical reference

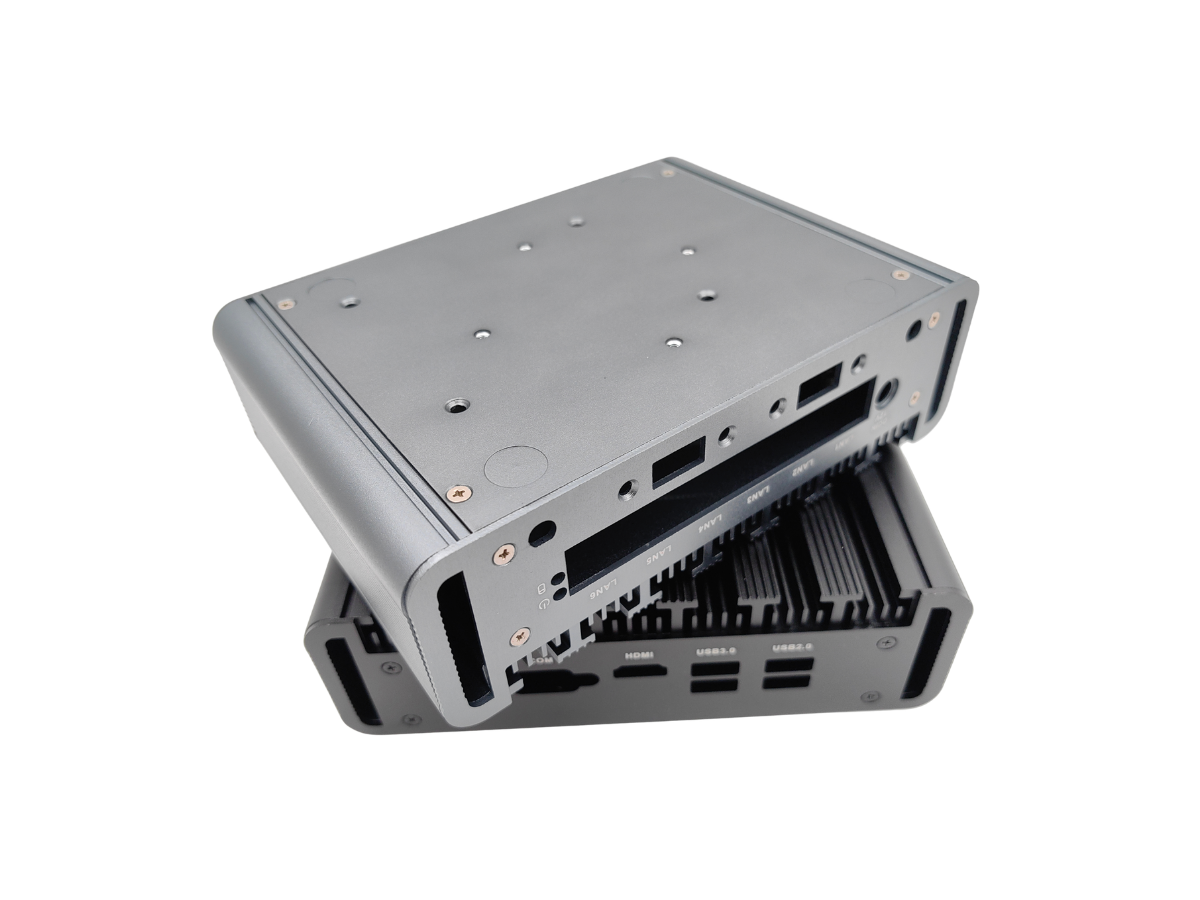

SBC13 open enclosure and panel configuration reference

Configuration and Finish Options

These views show color, finish and panel configuration concepts. Different enclosure and panel combinations may be evaluated for an OEM project; they are examples, not standard colors or guaranteed options.

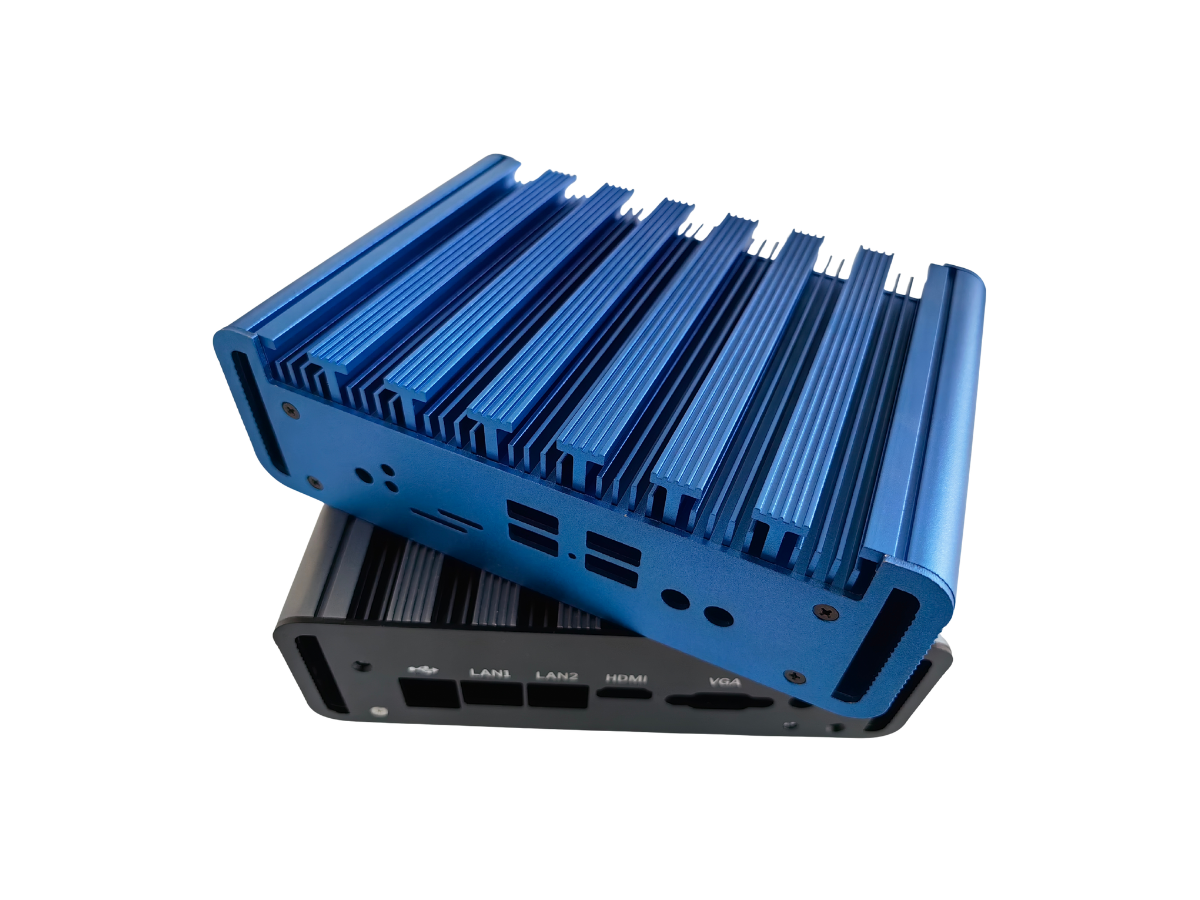

Blue SBC13 aluminum enclosure finish configuration example

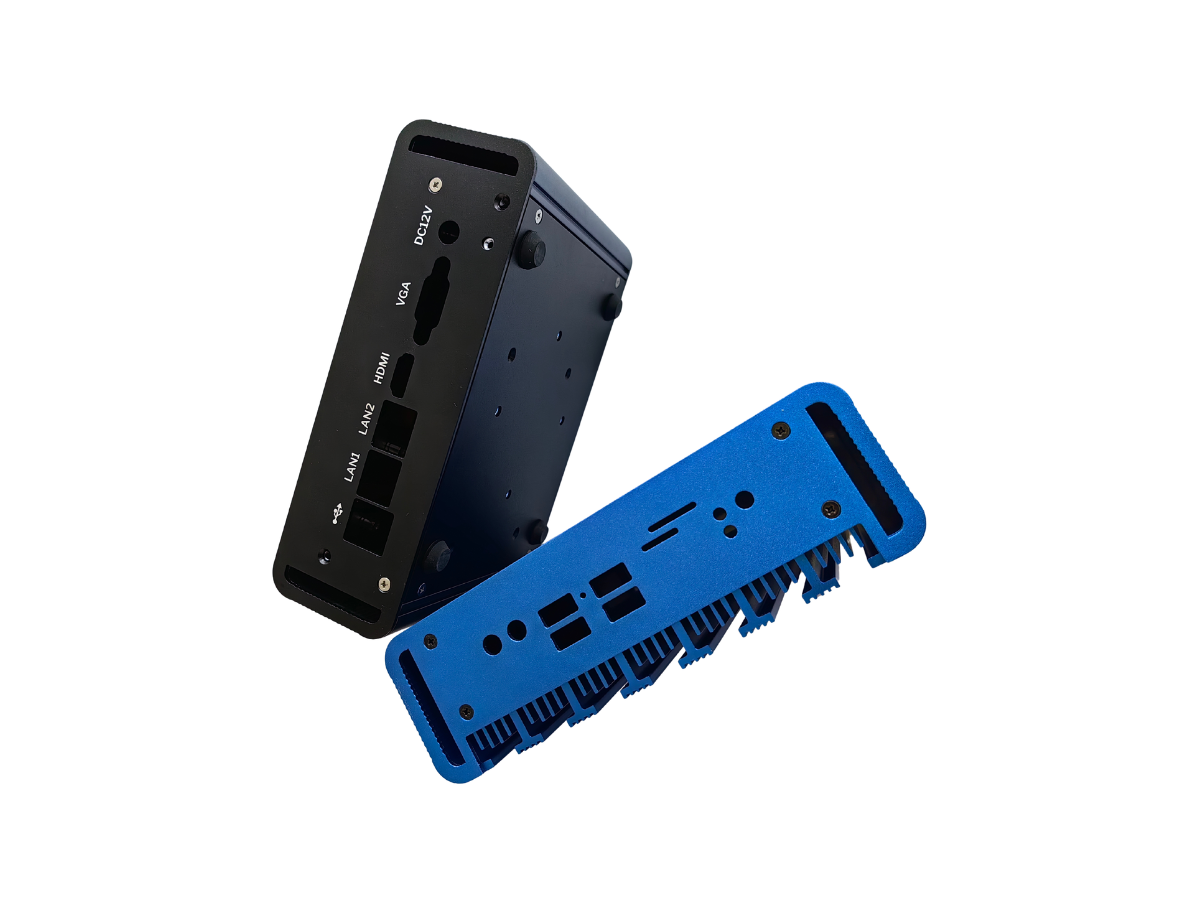

Blue and black SBC13 panel configuration example
SBC13 panel layout comparison for project-specific configuration review

Cross-Section Reference

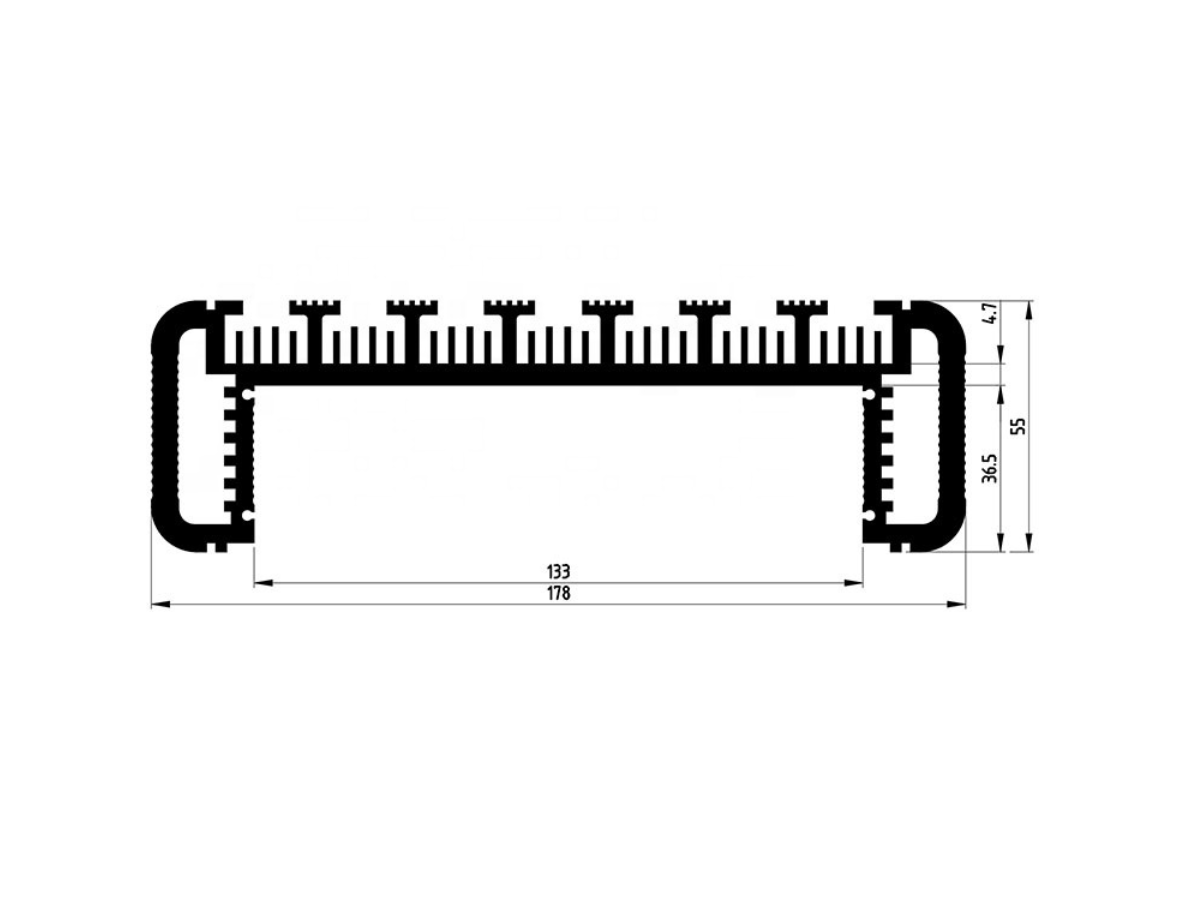

This drawing is an engineering reference for discussing the SBC13 extrusion profile. Dimensions, units and integration requirements should be confirmed for a specific project.

SBC13 aluminum extrusion cross-section engineering reference drawing

OEM / ODM Engineering Support

Domify supports enclosure structure review, panel machining review, internal mounting review, CNC machining support, finish and color review, and prototype and small-batch production support. Explore our custom aluminum enclosure solution, industrial PC OEM / ODM support, product range and engineering portfolio.

Related Products

Explore related custom aluminum enclosure platforms.

Start Your SBC13 Enclosure Project

Share your enclosure, panel and integration requirements with the engineering team for a project review or quotation.
